Seal set IP 66;
Seal set IP 66;
L-handle quarter turn for padlock, Zinc die black powder-coated
L-handle quarter turn for padlock, Zinc die black powder-coated

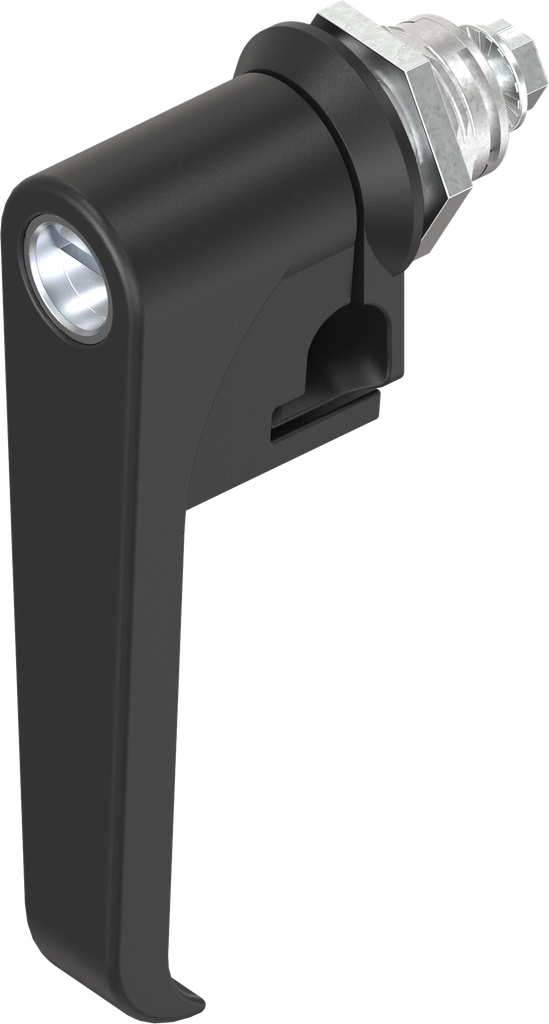

L-handle quarter turn with insert slot 2 x 4 coinproof and for padlock, Zinc die black powder-coated; 1000-U770

https://www.emka.com/products/1000-u770 https://www.emka.com/web/image/product.template/60305/image_1920?unique=ef9fb59

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right


    Product information:

    Insert with spring-loaded return (two-hand operation).

    L-handle is locked with attached padlock

    Internal Reference: 1000-U770
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-640
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Slot 2 x 4 coinproof
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert,Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 7-10
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control

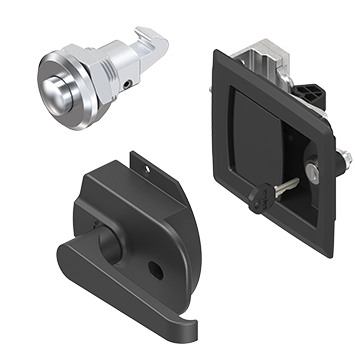

    Other latch
    Here you can find the product data sheets and CAD files of this product
