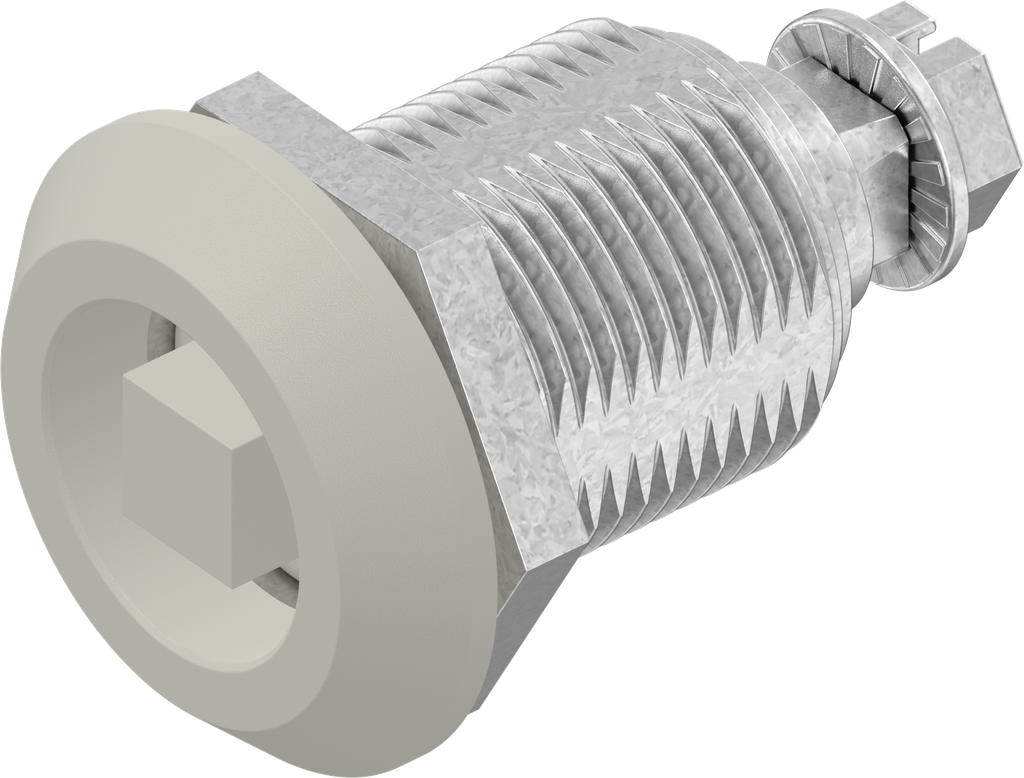

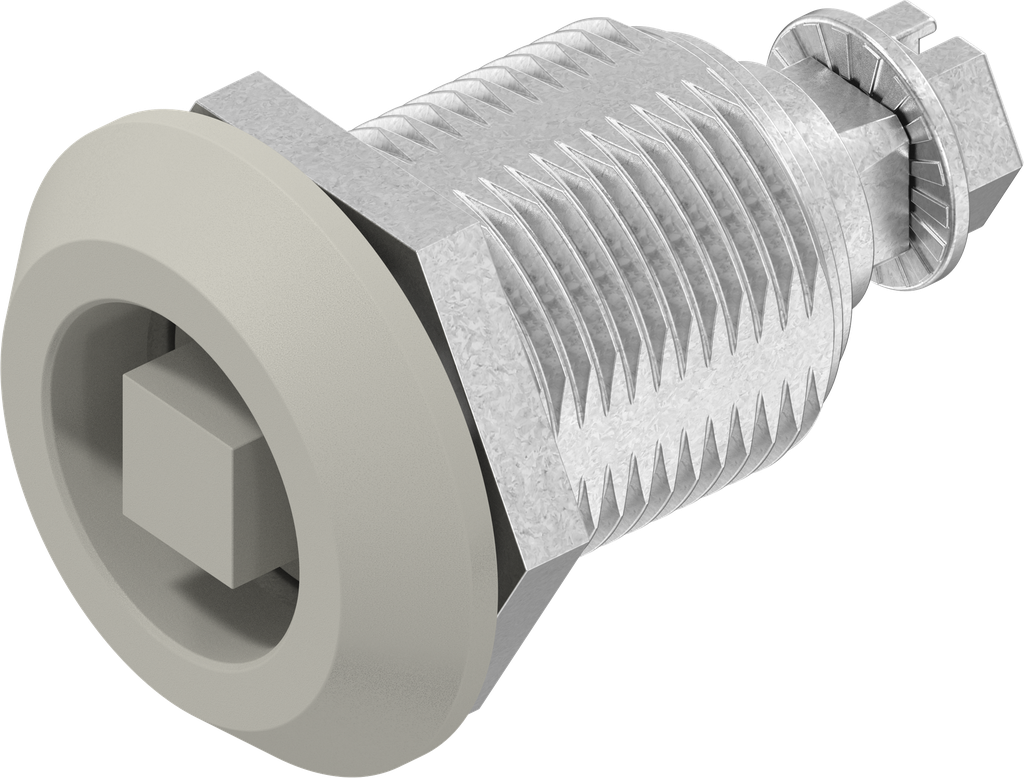

Compression latch, square 8, Zinc die off-white powder-coated; 1000-U755-BC

https://www.emka.com/products/1000-u755-bc https://www.emka.com/web/image/product.template/205837/image_1920?unique=7e4f954

with nut


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) Left Right


    Product information:

    The compression latch has a vibration-proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
    Internal Reference: 1000-U755-BC
    Standards: False
    Barcode: 1000-U00755-00000bc
    Product Type:
    Program: 1000
    Material of the module : Zinc die
    Surface of the module:
    Number of Possible Locking Points: False
    Fixing type of housing : False
    Type of actuation:
    Mounting Positions : False
    Housing Head Shape: Round

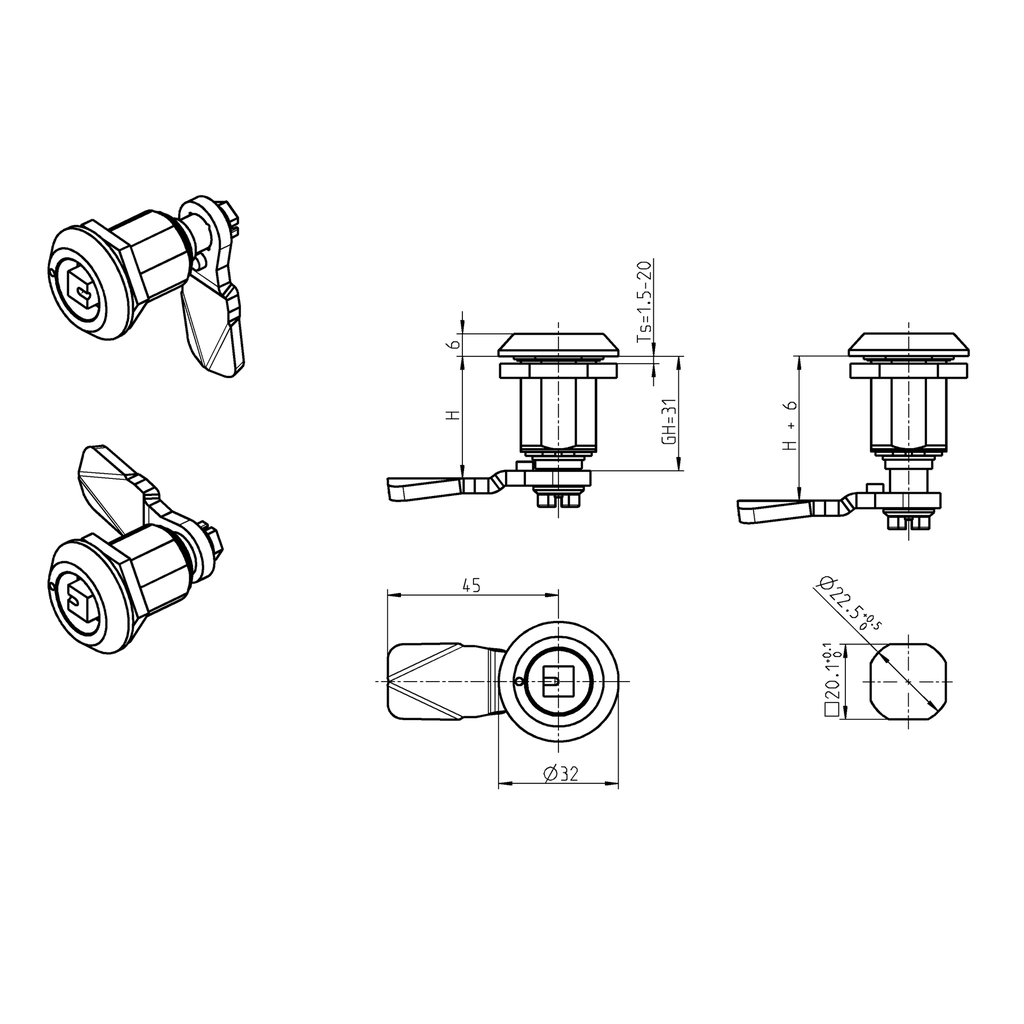

    Housing Head Size: 32 x 6 mm
    Foamed gasket: Yes
    GH Mass: 31 mm
    Compression Value :
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: False
    Door Version : False
    Locking components: False
    Quarter turn types: False
