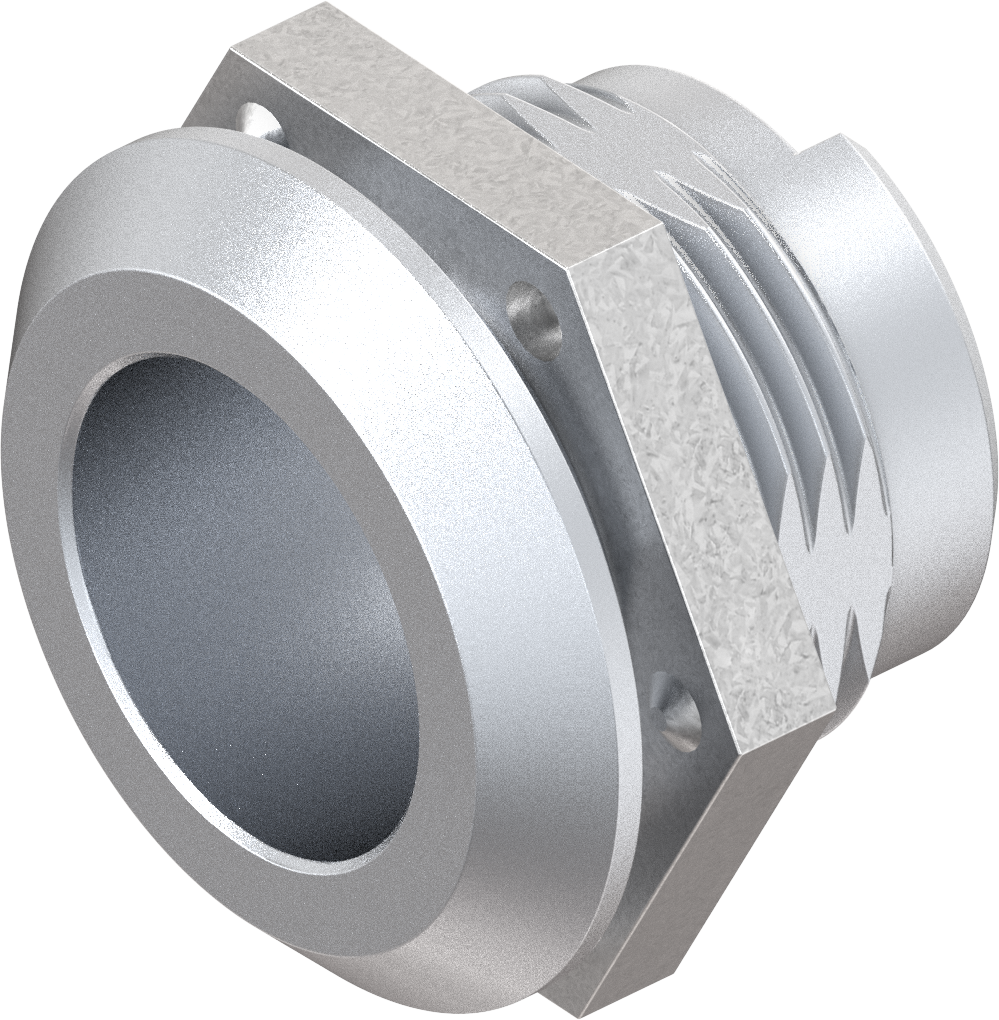

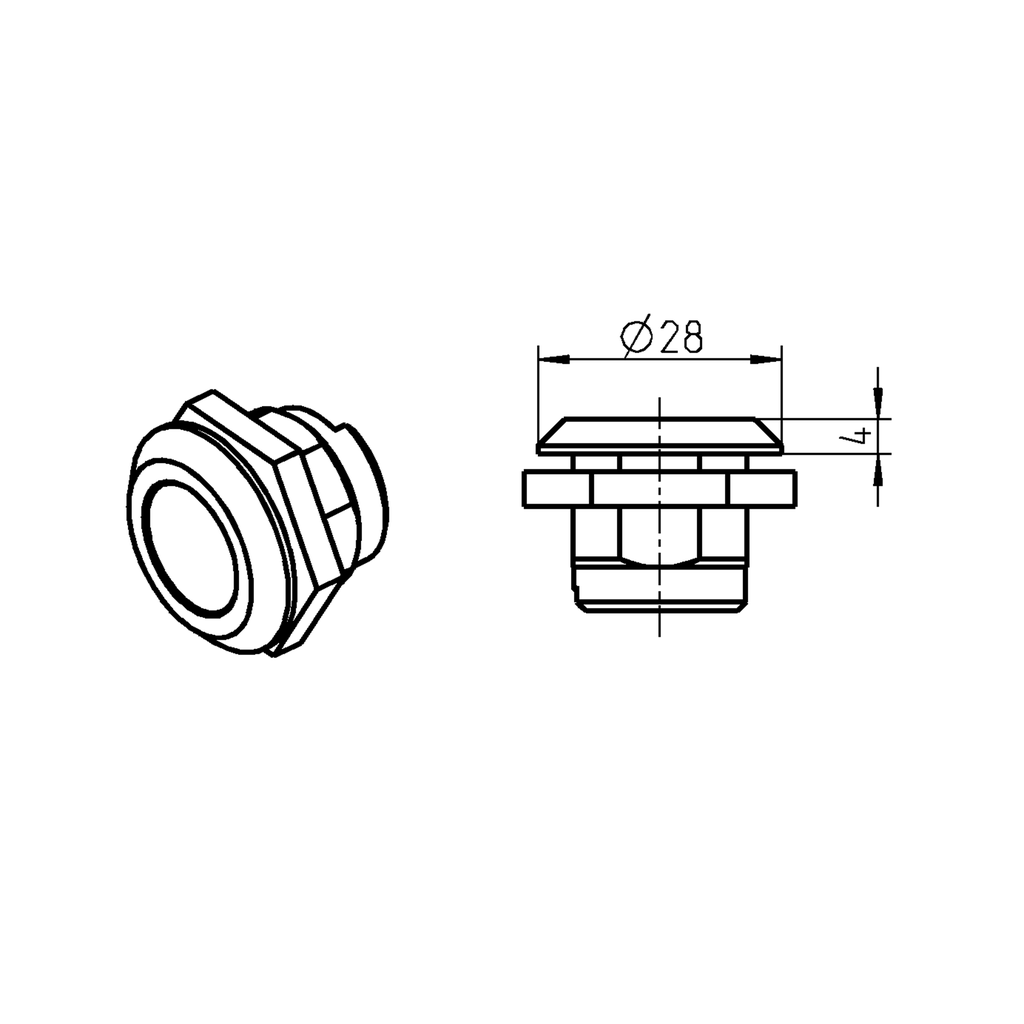

Housing foamed, Zinc die chrome-plated

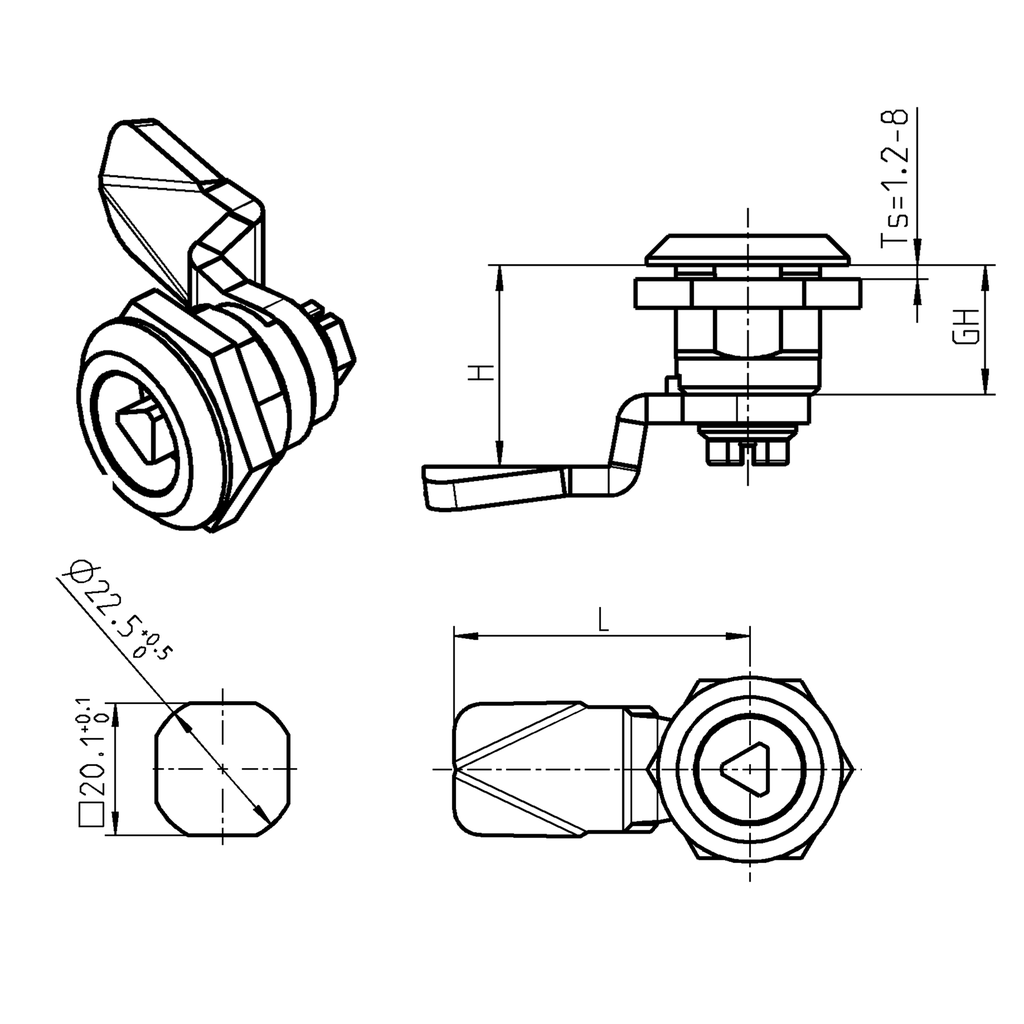

L-handle quarter turn, keyed different, Zinc die chrome-plated
Key features:
Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
Internal Reference:
1000-U56-ID
Barcode:
1000-U00056-00000ID
Product Type:
Housing
Program:
1000
Material of the module :
Zinc die
Surface of the module:
matt chromed
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round
Housing Head Size:
28 x 4 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
