Insert double bit 5, Stainless steel AISI 316
Round rod L = up to 400 mm, Stainless steel AISI 304

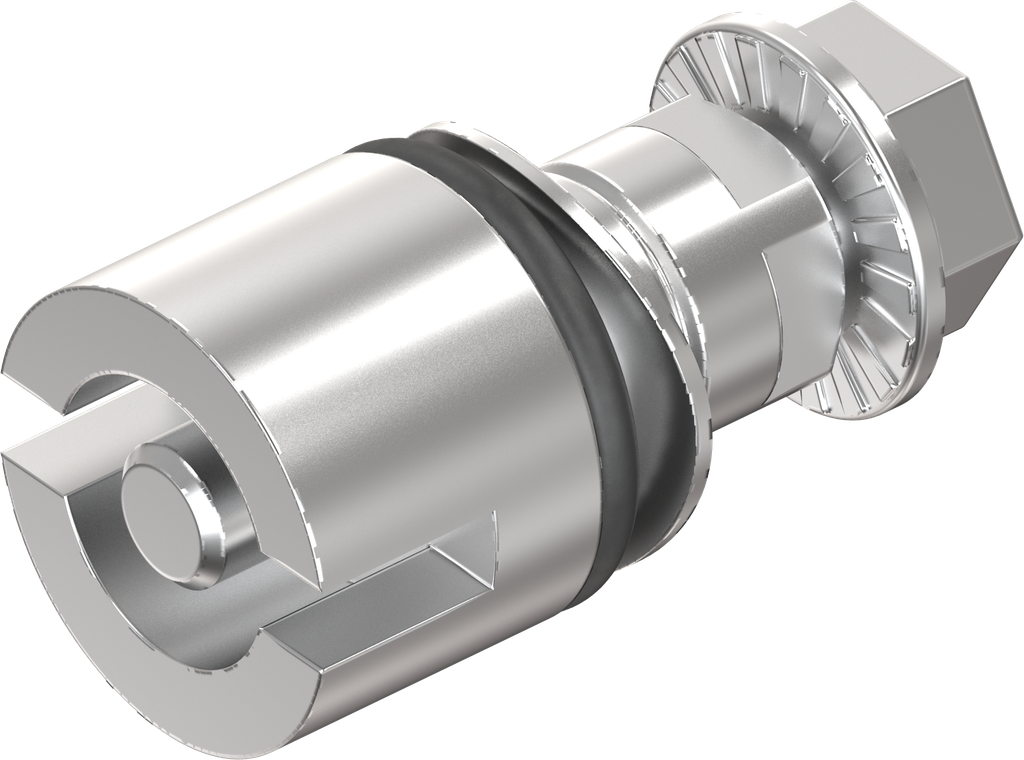

Insert double bit 5, Stainless steel AISI 316 pickled, passivated and electrolytically polished; 1000-U534-N
with O-ring
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U534-N
Standards:
Protection class IP 65
Barcode:
1000-u00534-000000n
Product Type:
Insert
Program:
1000
Material of the module :
Stainless steel AISI 316
Surface of the module:
pickled, passivated and electrolytically polished
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Double bit 5
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
