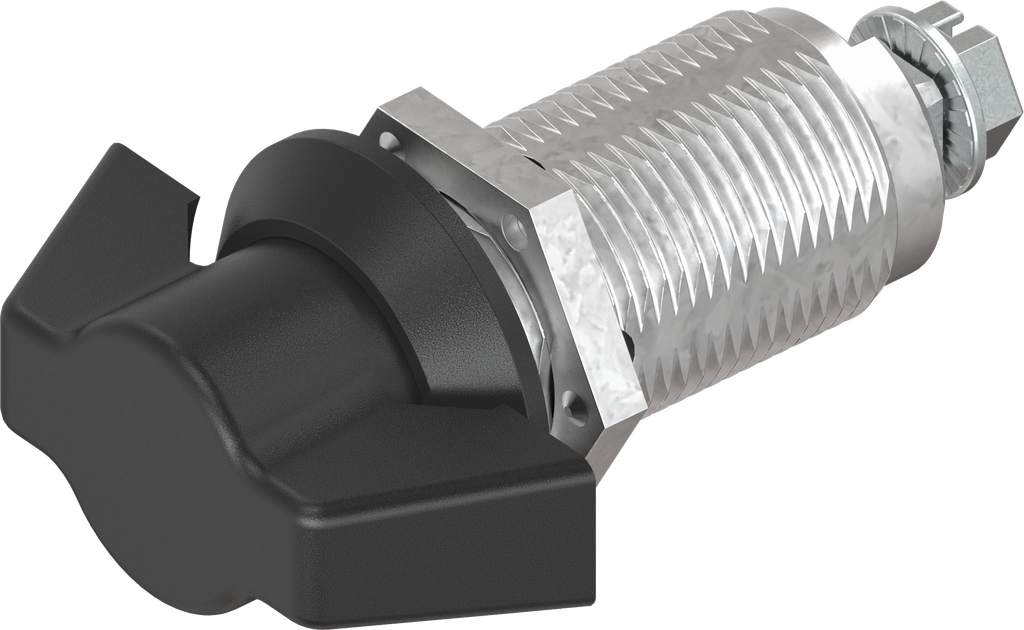

Wing knob quarter turn, non-keyed, Zinc die and polyamide black; 1000-U519

https://www.emka.com/products/1000-u519 https://www.emka.com/web/image/product.template/205638/image_1920?unique=98c8461

with earthing nut

This product has no valid combination.



Internal Reference: 1000-U519
Standards: Protection class IP 65
Barcode: 1000-U00519-0000000
Product Type: Quarter turn
Program: 1000
Catalog sheet: 1B-540
Material of the module : Zinc die and polyamide
Surface of the module: black
Number of Possible Locking Points: 1 point, 2 points, 3 point
Fixing type of housing : nut fixing
Mounting Positions : Inside the sealing
Grounding possible: Yes
Housing Head Shape: Round
Housing Head Size: 32 x 6 mm
GH Mass: 40 mm
Handle Art: Wing knob
Suitable for door thickness from: 1.50 mm
Suitable for door thicknesses up to: 30 mm
Locking set: No locking set, blind
Door Version : Left,Right
Locking components: Cam
Quarter turn types: Quarter turn with handle
No Specifications
View All Products
Cam
Quarter turn accessories
Assembly
Rod control
Here you can find the product data sheets and CAD files of this product
