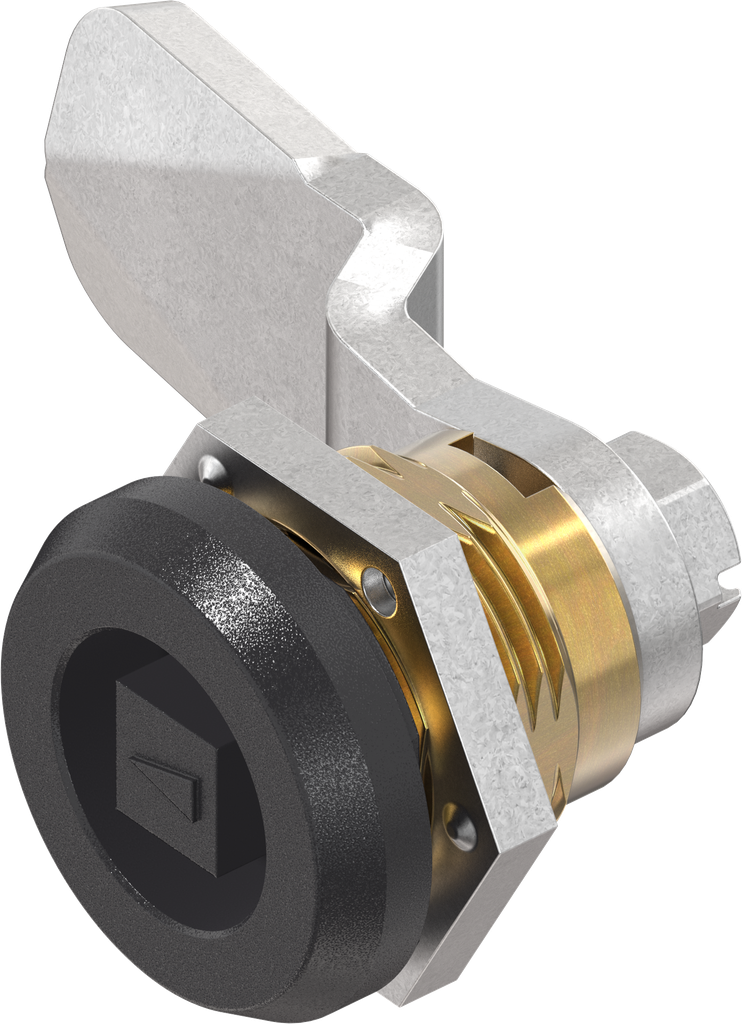

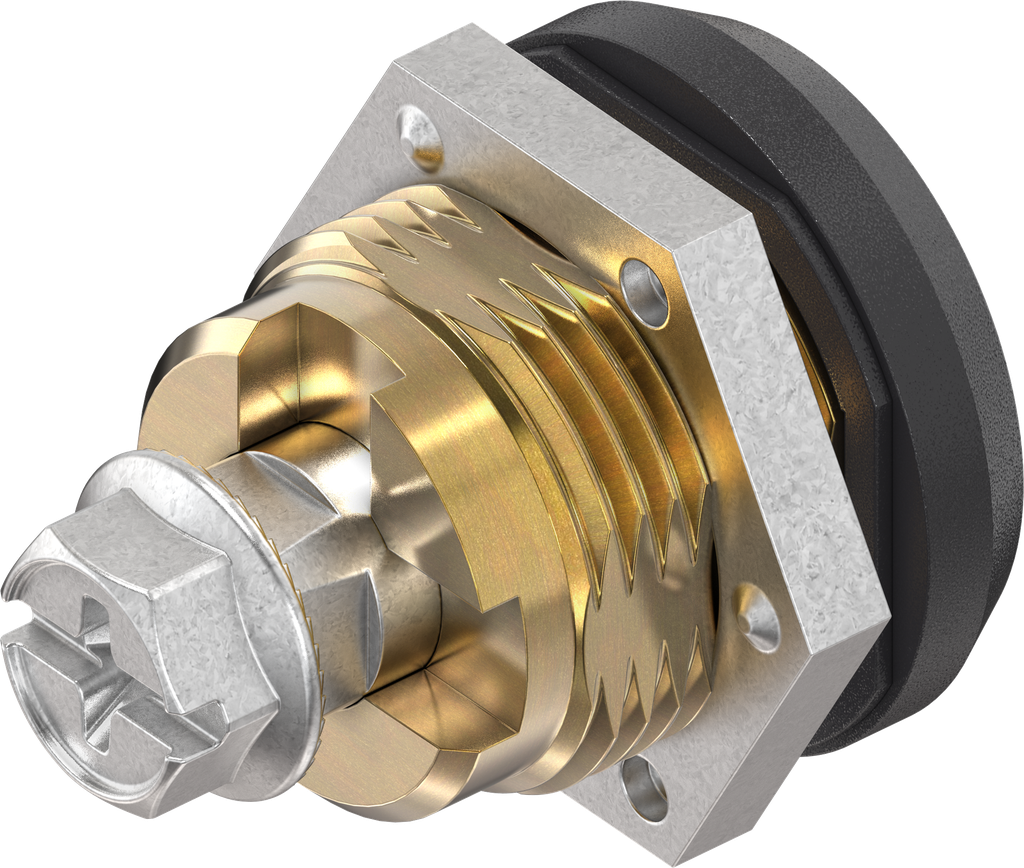

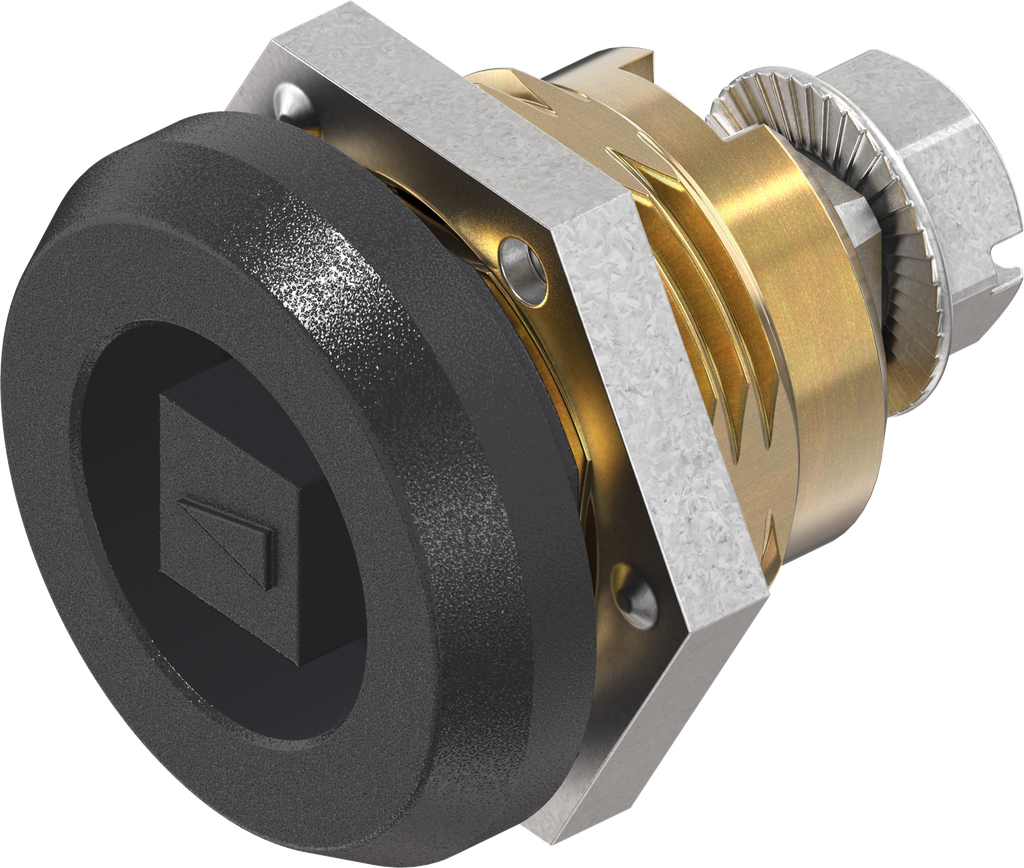

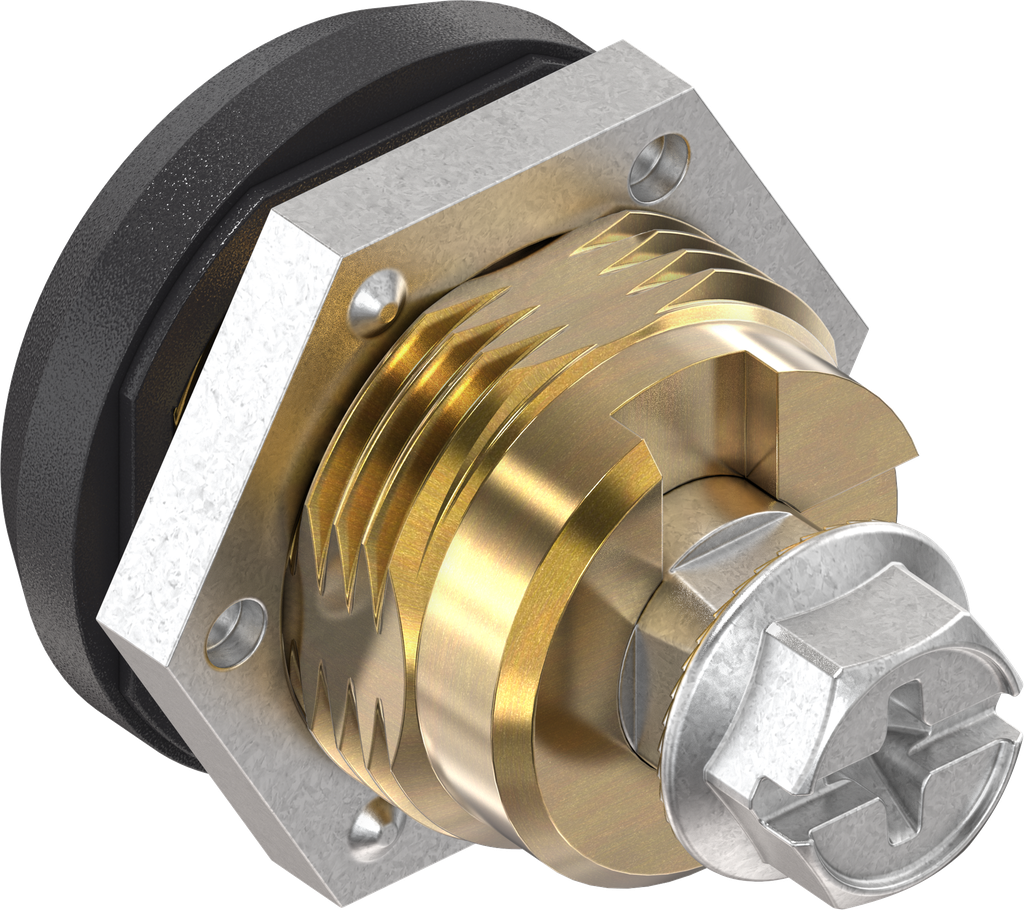

Safety quarter turn square 8, Brass and zinc die black powder-coated; 1000-U264-01

https://www.emka.com/products/1000-u264-01 https://www.emka.com/web/image/product.template/60061/image_1920?unique=cc7d236

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right


    Product information:

    Safety quarter turn:
    The safety quarter turn is of a vibration-proof design.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Function:

    Push cam back using insert.

    Assembly instruction:

    Only available with pre-assembled cam.

    Internal Reference: 1000-U264-01
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-320
    Material of the module : Brass and zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 8 with arrow
    Mounting Positions : Inside the sealing
    Grounding possible: Yes

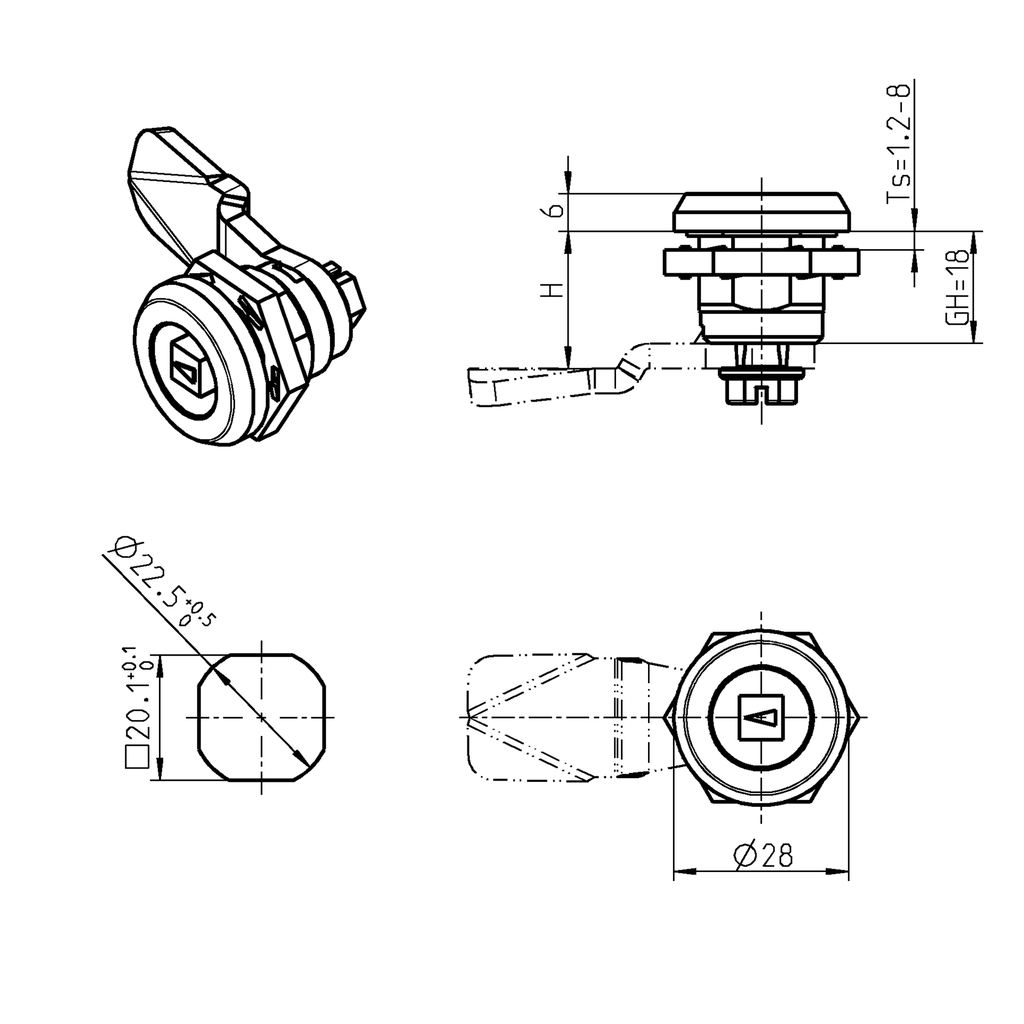

    Housing Head Shape: Round
    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Safety quarter turn
