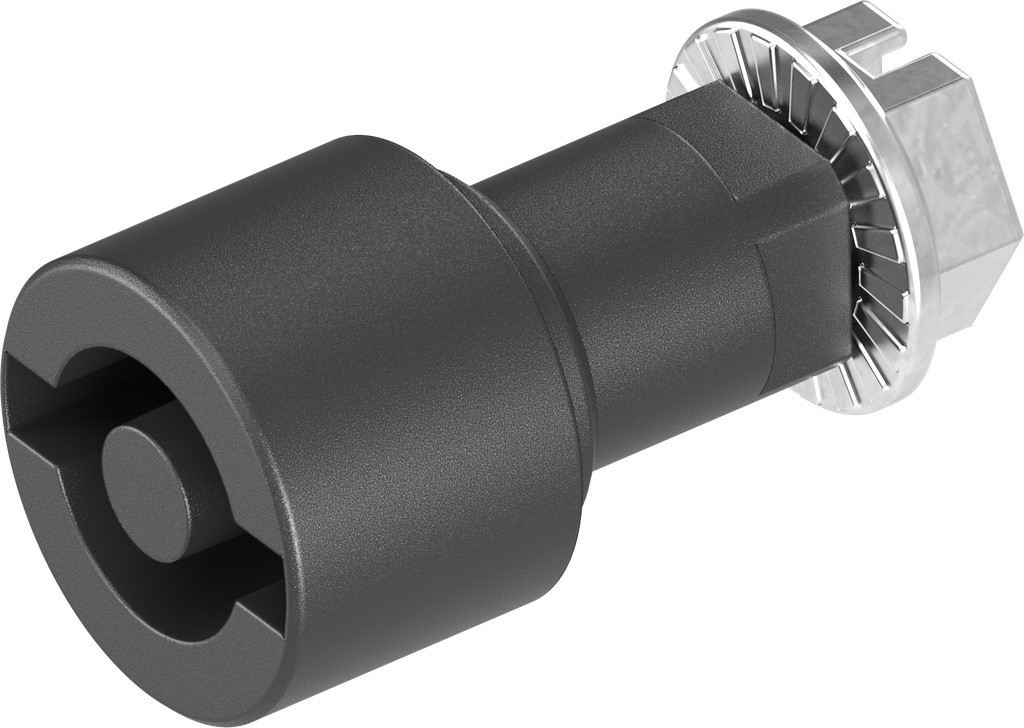

Insert double bit 5, Polyamide 66 GF 50 black; 1000-U188-N2

https://www.emka.com/products/1000-u188-n2 https://www.emka.com/web/image/product.template/205442/image_1920?unique=ae99617

without spring washer


    This combination does not exist.



    Assembly instruction:

    In case of assembly by the customer the insert must be lubricated (vaseline).

    Internal Reference: 1000-U188-N2
    Product Type: Insert
    Program: 1000
    Catalog sheet: 1B-120
    Material of the module : Polyamide 66 GF 50
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Insert for: Insert for housing, classic
    Type of actuation: Double bit 5
    For GH measure: 18 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Metric
    No Specifications
    View All Products

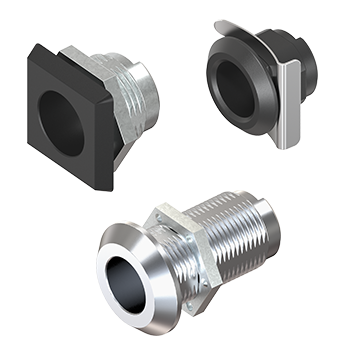

    Housing
