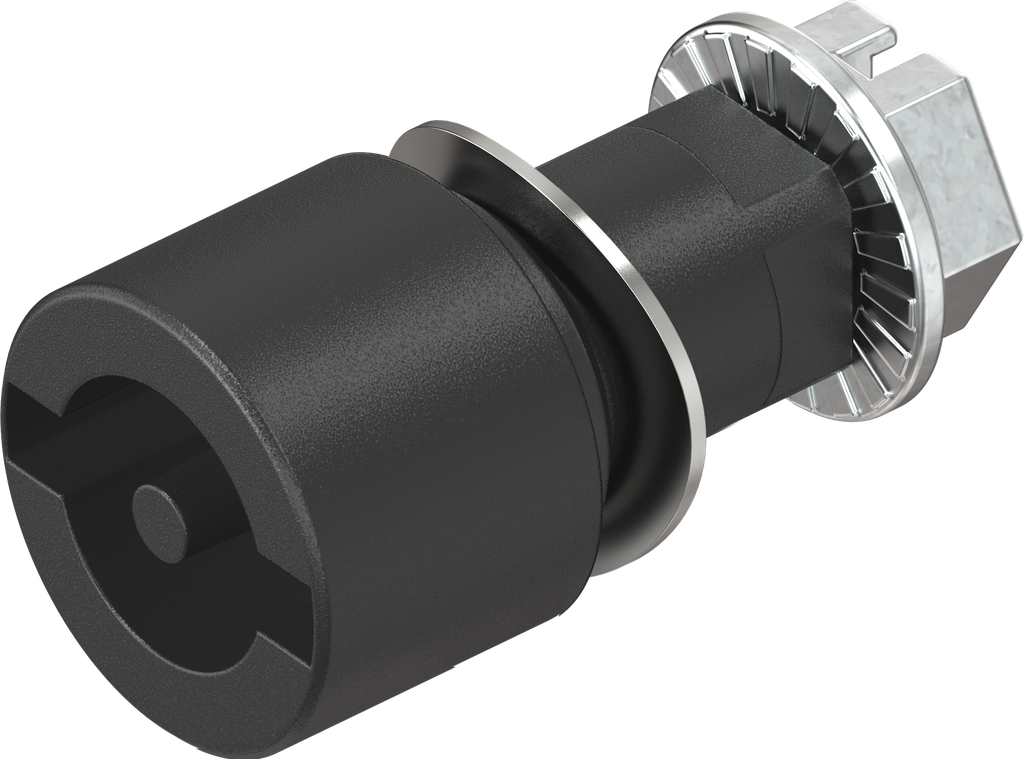

Insert double bit 3, Polyamide 66 GF 50 black; 1000-U187-N

https://www.emka.com/products/1000-u187-n https://www.emka.com/web/image/product.template/60005/image_1920?unique=30ad94f


    This combination does not exist.



    Key features:

    This product is a modular component of a UL-certified closure.

    Internal Reference: 1000-U187-N
    Product Type: Insert
    Program: 1000
    Catalog sheet: 1B-140
    Material of the module : Polyamide 66 GF 50
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Insert for: Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
    Type of actuation: Double bit 3
    For GH measure: 18 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Metric
    No Specifications
    View All Products
    O-ring and flat seal
    Housing
    Keys
    Here you can find the product data sheets and CAD files of this product
