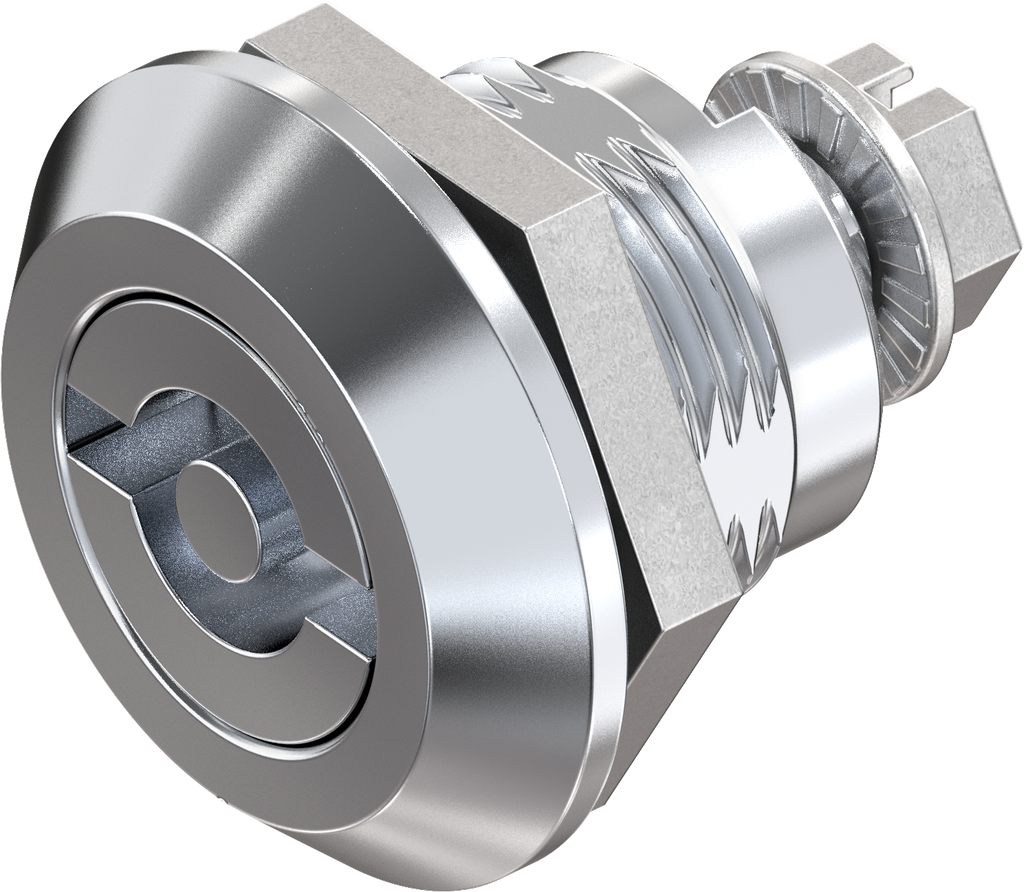

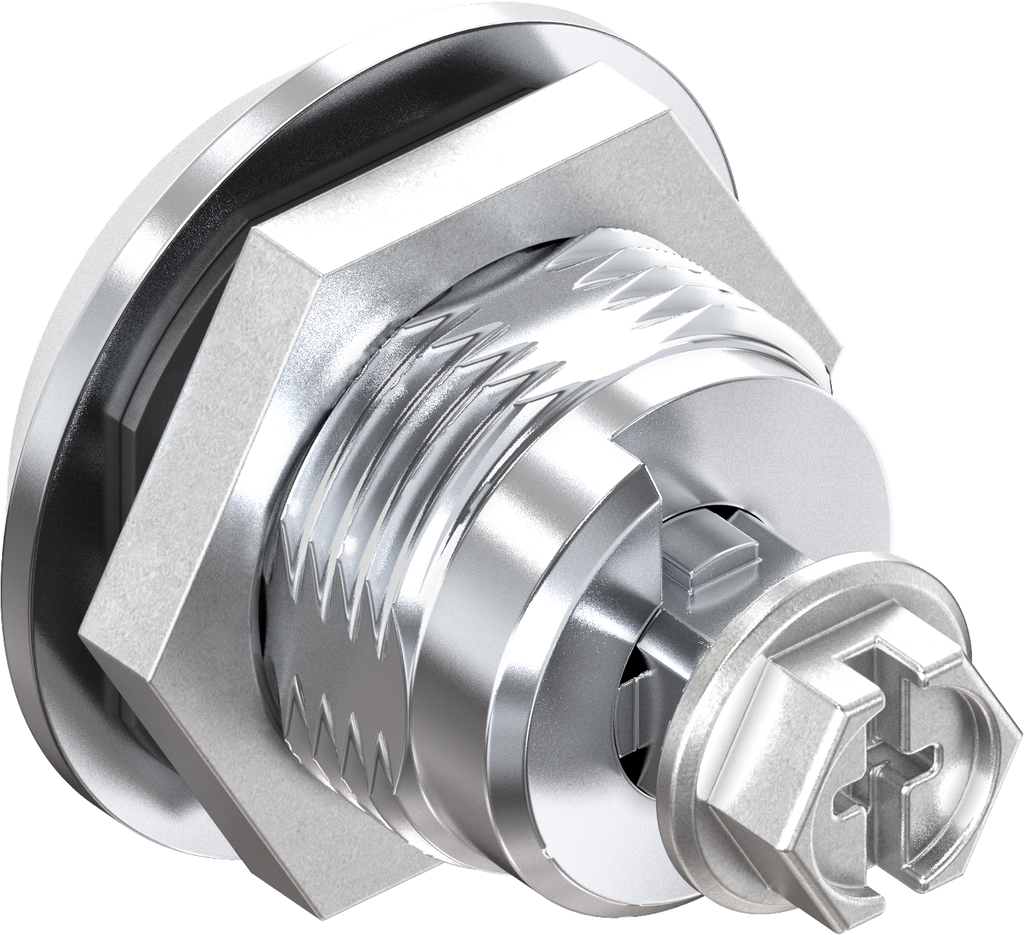

Vibration-resistant quarter turn double bit 5, Zinc die chrome-plated; 1000-SU1285

https://www.emka.com/products/1000-su1285 https://www.emka.com/web/image/product.template/392766/image_1920?unique=bdbca97

with nut

    This combination does not exist.

    Inside the sealing Protection class IP 66 DIN EN 61373 (shock and vibration testing) Left Right
    Internal Reference: 1000-SU1285
    Standards: Protection class IP 66, DIN EN 61373 (shock and vibration testing), ⓘ An article of the same design was tested
    Barcode: 1000-SU1285-0000000
    Product Type: Quarter turn
    Program: 8500
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing
    Type of actuation: Double bit 5
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

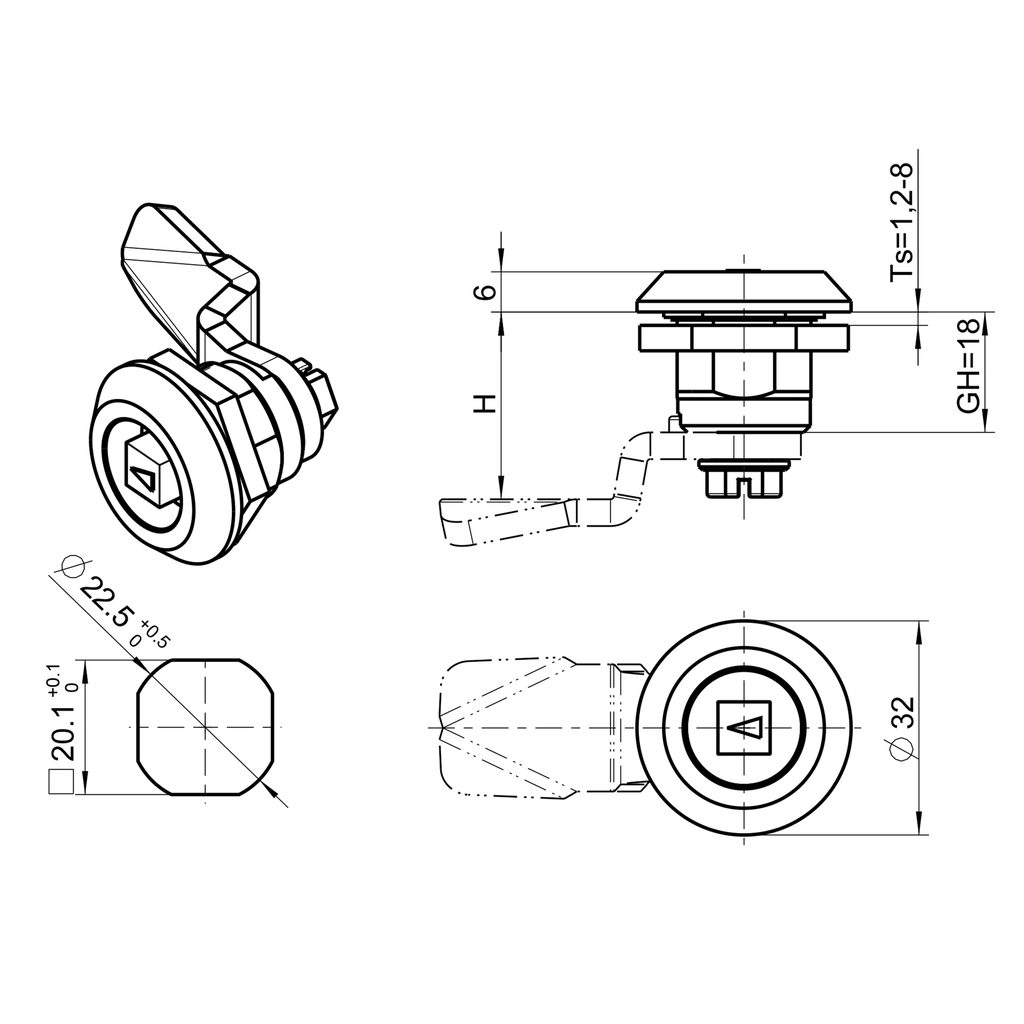

    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
