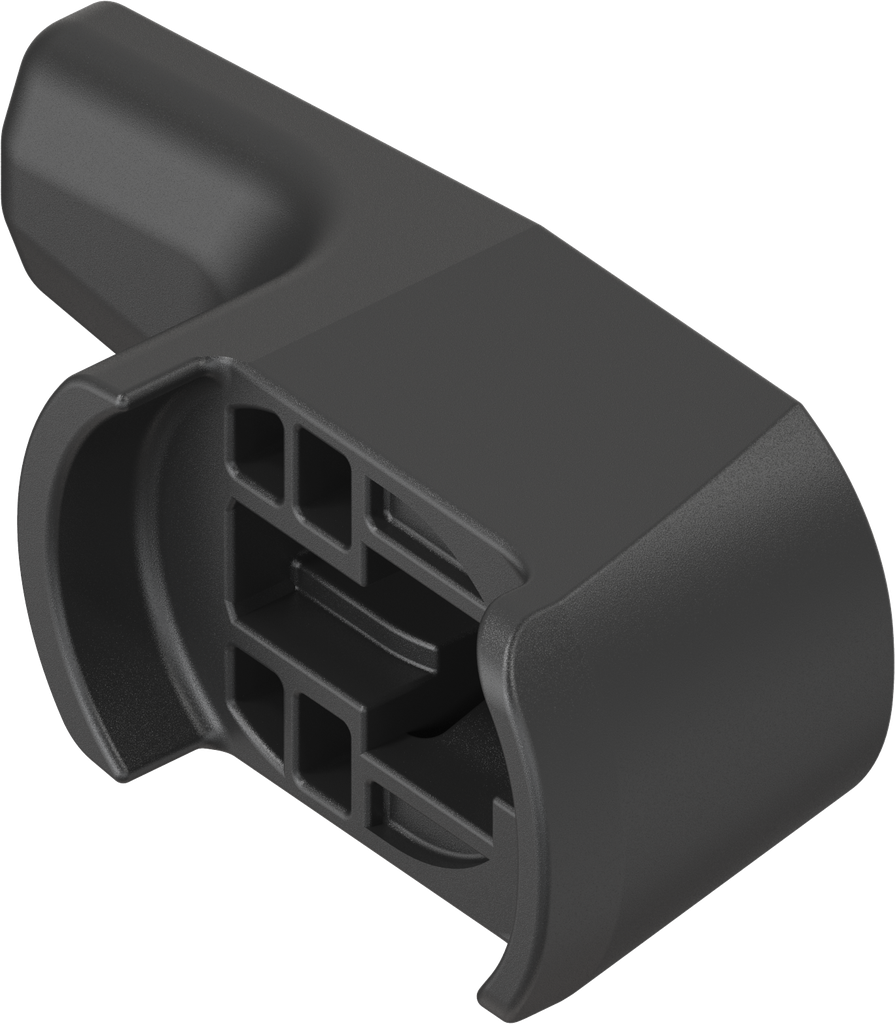

Snap-in cam H = 18 mm, Polyamide GF silver grey metallic
Snap-in cam H = 18 mm, Polyamide GF silver grey metallic
Product Benefits:
- Cost savings due to assembly without tools within seconds
- Smooth operation (no inner rotation due to design)
- Snap-in cam with safety cap
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Product information:
A = Assembly: example right-hand version
B = Disassembly
Internal Reference:
1000-592
Standards:
Protection class IP 65
Barcode:
1000-000592-0000000
Product Type:
Cam
Material:
Polyamide GF
Program:
1000
Surface:
black
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
Dimension H:
18 mm
Compression Value :
2 mm
Dimension L:
35 mm
Spoon:
Yes
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
2.50 mm
Quarter turn types:

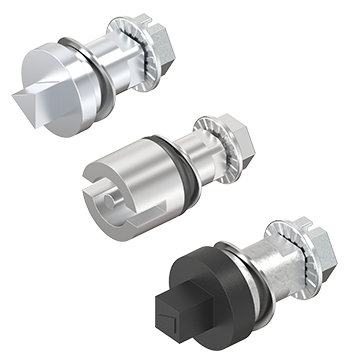

Quarter turn with simple insert,Quarter turn for assembly without tools
