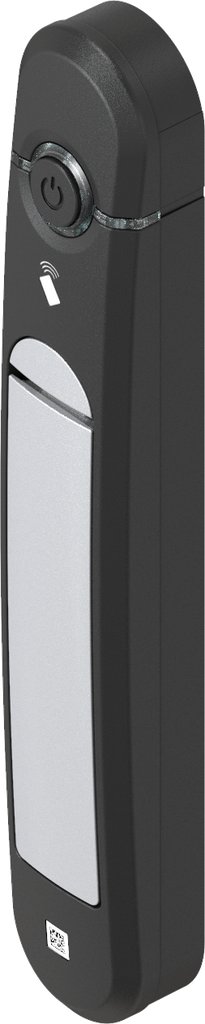

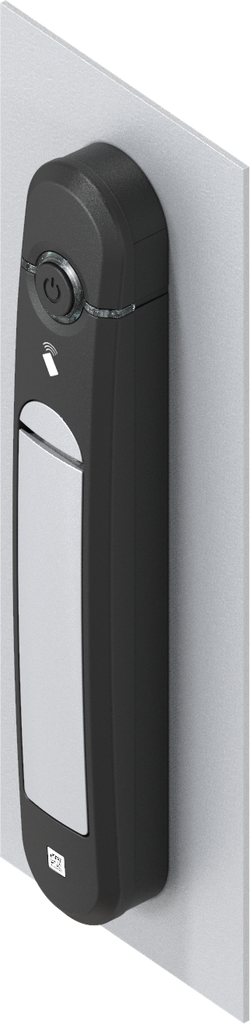

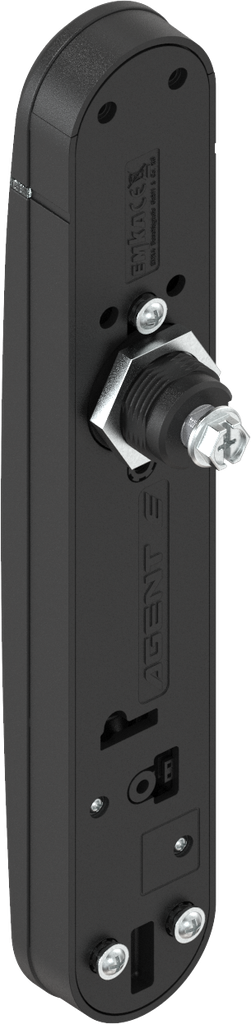

Swinghandle Agent E BLE, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U961-42

https://www.emka.com/products/3000-u961-42 https://www.emka.com/web/image/product.template/421893/image_1920?unique=5af59d5

for cam


    This combination does not exist.

    Inside the sealing Left Right


    Product information:

    • When using Agent E BLE, no additional hardware is required for operation
    • Opening a handle does not necessarily require an Internet connection
    • Various EMKA ELM products can be integrated via the Access Unit BLE and can be operated and administered in the same way

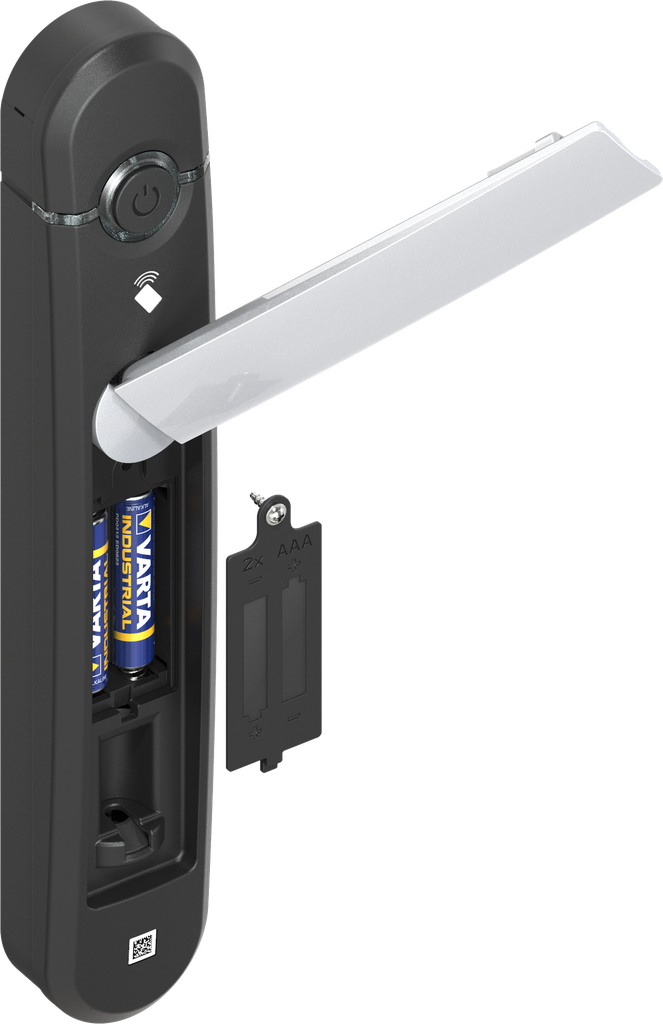

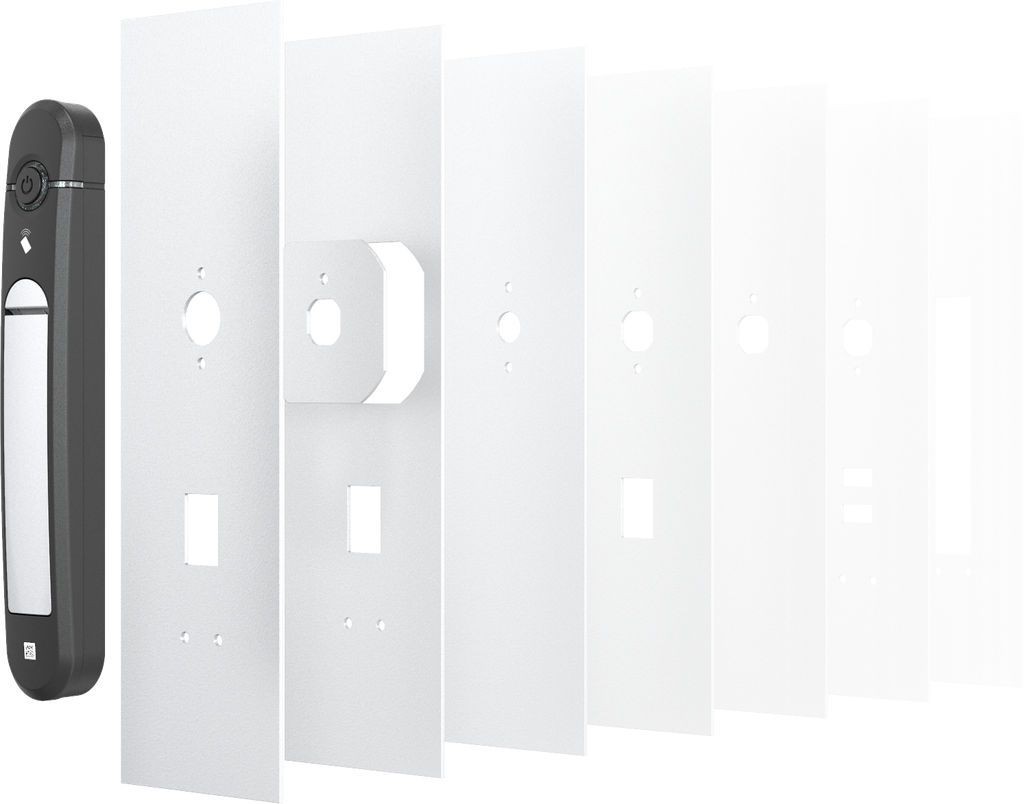

    • Battery-operated swinghandle in the design of the Agent E series, suitable for retrofitting on a wide range of cabinet types

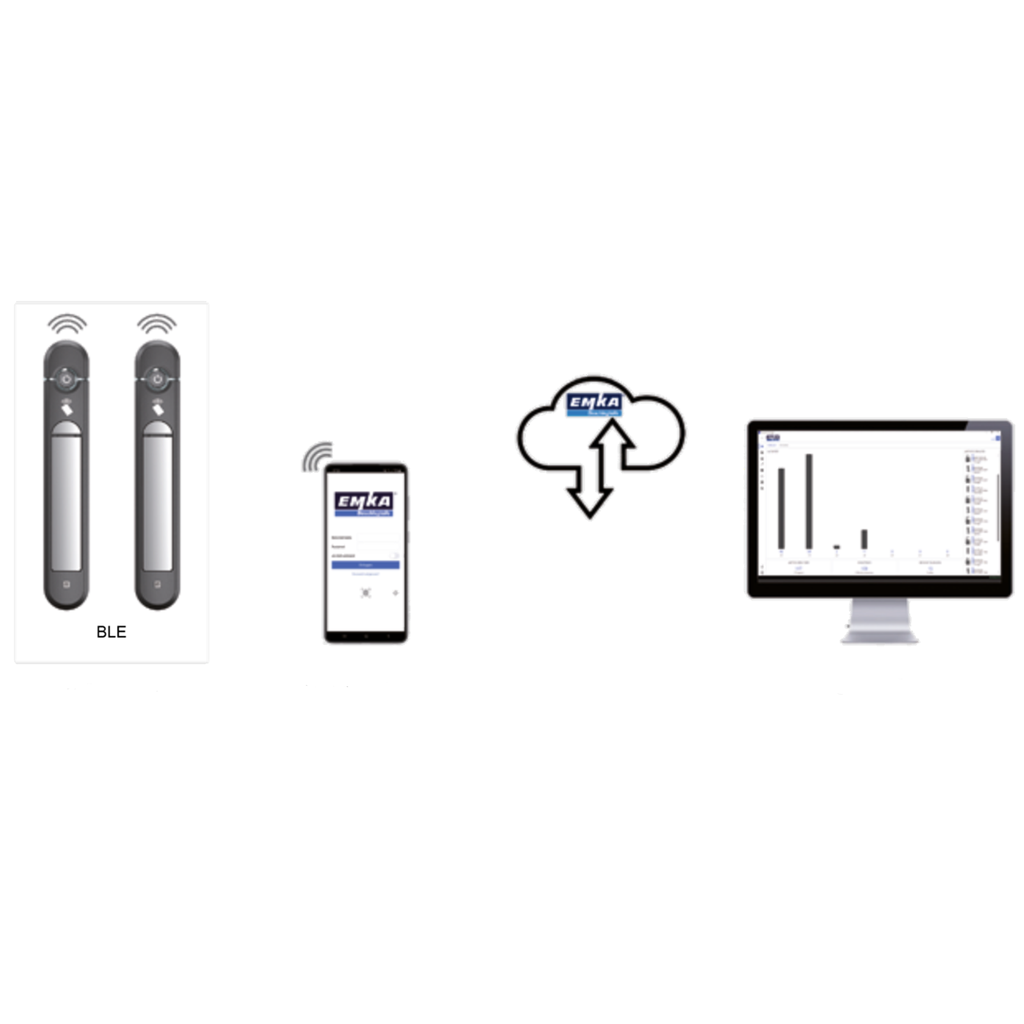

    • Opening via smartphone and BLE connection with the “EMKA Smart Access Key” app, available for free download from the Play Store or App Store
    • Automatic logging of all opening and locking processes in the cloud via the smartphone used
    • Each customer receives their own cloud instance for their company to register and manage their handles via the EMKA Smart Access Manager software program An annual subscription for each swinghandle is mandatory.
    • When purchasing Agent E BLE, the license fee for the cloud usage in the current year of registration is included. After that, an annual fee per swinghandle is payable for continued use.

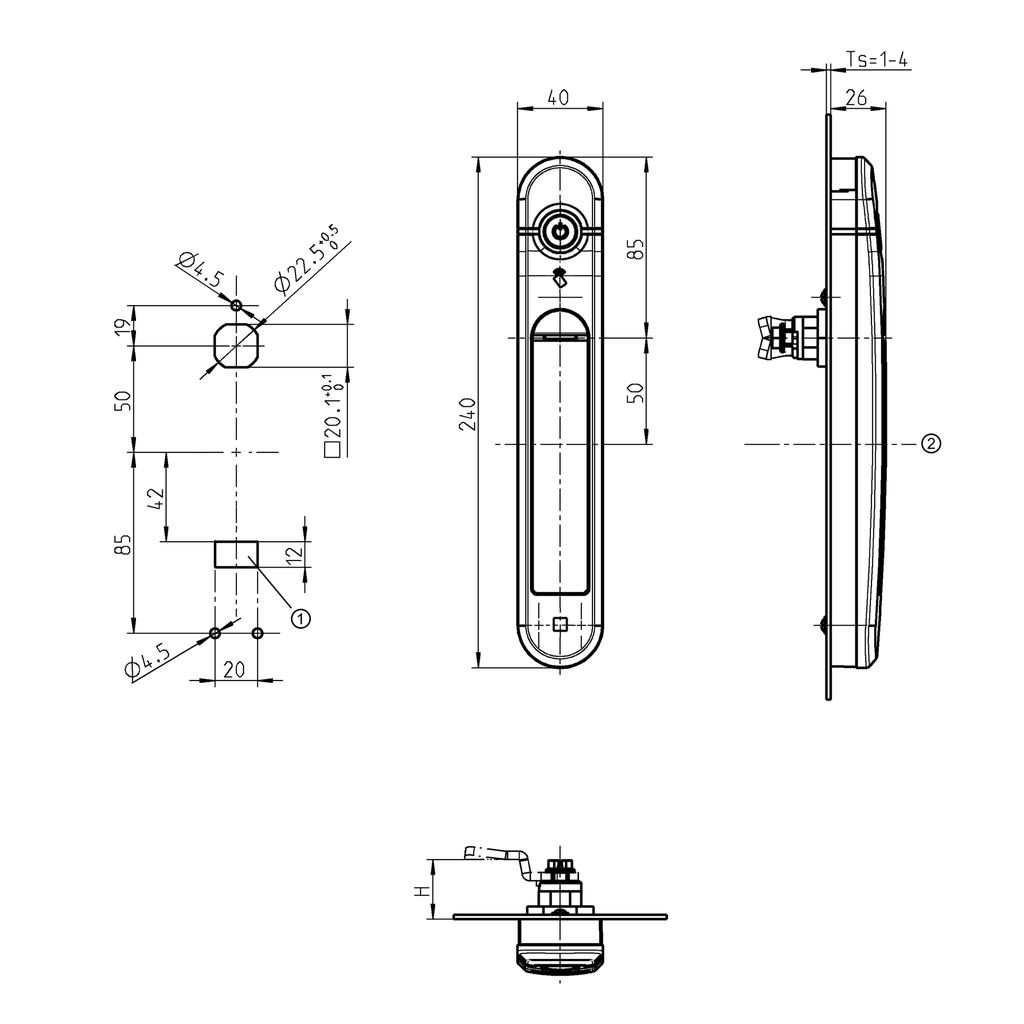

    1 = Required for door contact
    2 = Centre door

    Internal Reference: 3000-U961-42
    Barcode: 3000-U00961-0000042
    Product Type: Swinghandle, Lifthandle
    Program: 3000
    Catalog sheet: 9A-130
    Material of the module : Zinc die white aluminium powder-coated and polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing
    GH Mass: 18 mm
    Handle Art(1): Swinghandle
    Emergency opening: Yes
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 4 mm
    Locking set: Electromechanical release
    Swivel Handle: 26 mm
    Pan Handle Length: 240 mm
    Door Version : Left,Right

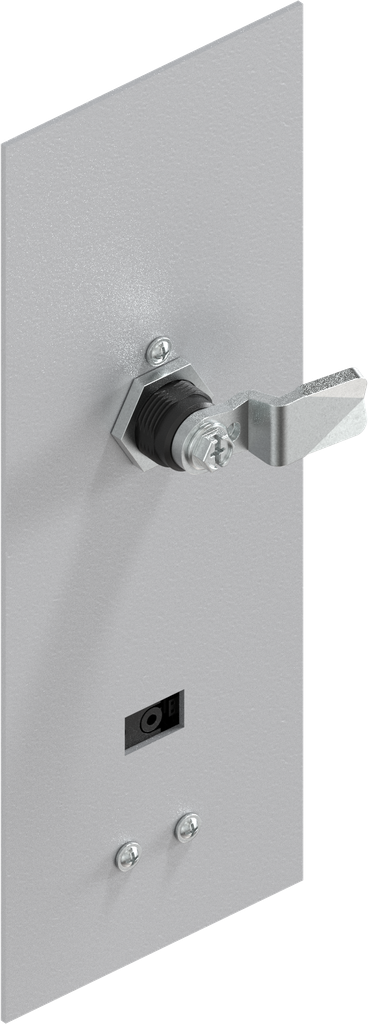

    Locking components: Cam
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
