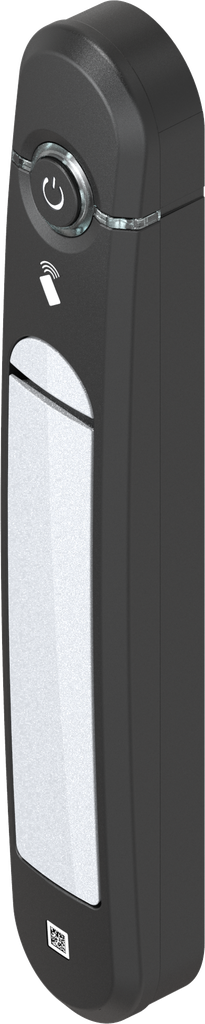

Swinghandle Agent E BLE, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U961-41
for rod control or bearing bush
Product information:
- When using Agent E BLE, no additional hardware is required for operation
- Opening a handle does not necessarily require an Internet connection
- Various EMKA ELM products can be integrated via the Access Unit BLE and can be operated and administered in the same way

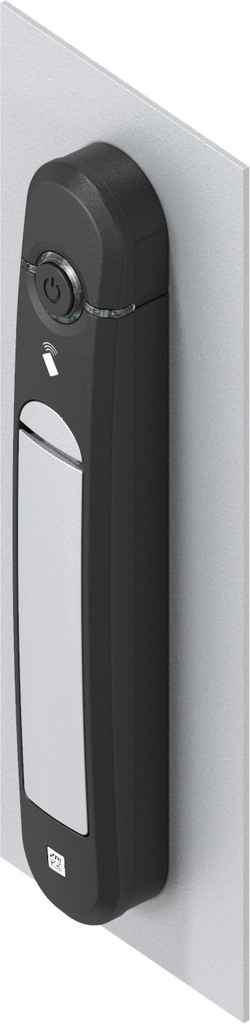

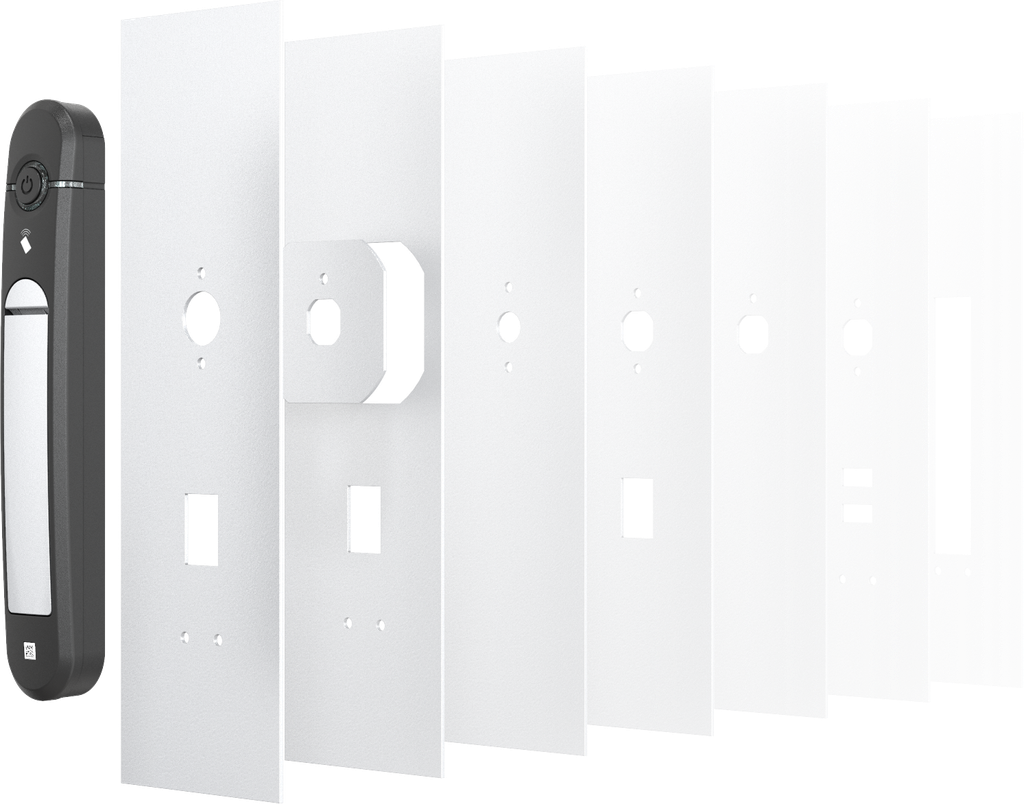

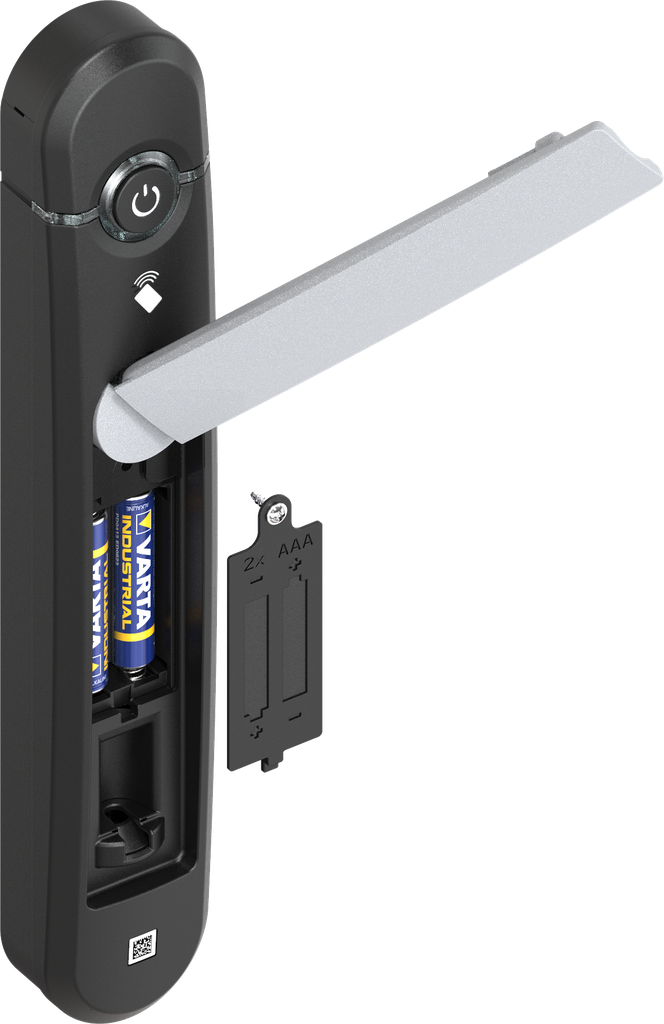

- Battery-operated swinghandle in the design of the Agent E series, suitable for retrofitting on a wide range of cabinet types

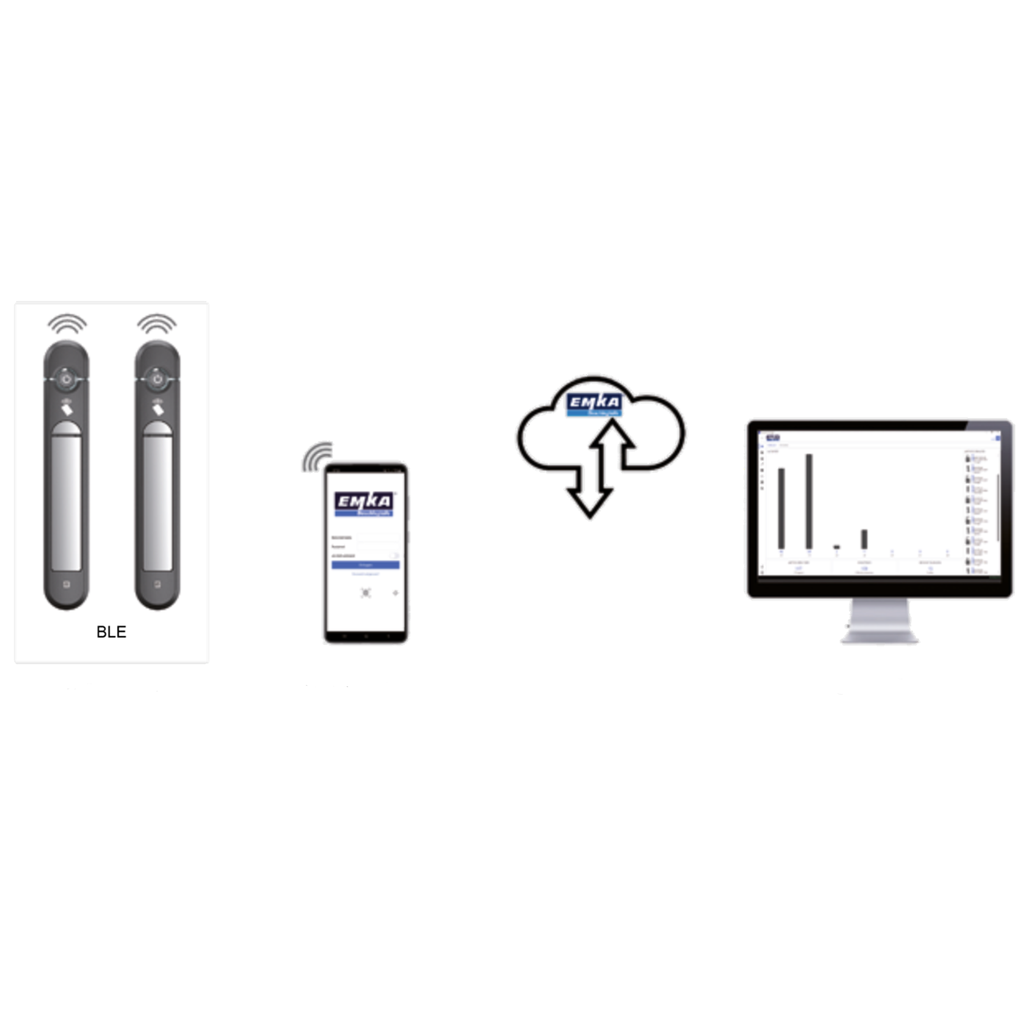

- Opening via smartphone and BLE connection with the “EMKA Smart Access Key” app, available for free download from the Play Store or App Store
- Automatic logging of all opening and locking processes in the cloud via the smartphone used
- Each customer receives their own cloud instance for their company to register and manage their handles via the EMKA Smart Access Manager software program An annual subscription for each swinghandle is mandatory.
- When purchasing Agent E BLE, the license fee for the cloud usage in the current year of registration is included. After that, an annual fee per swinghandle is payable for continued use.

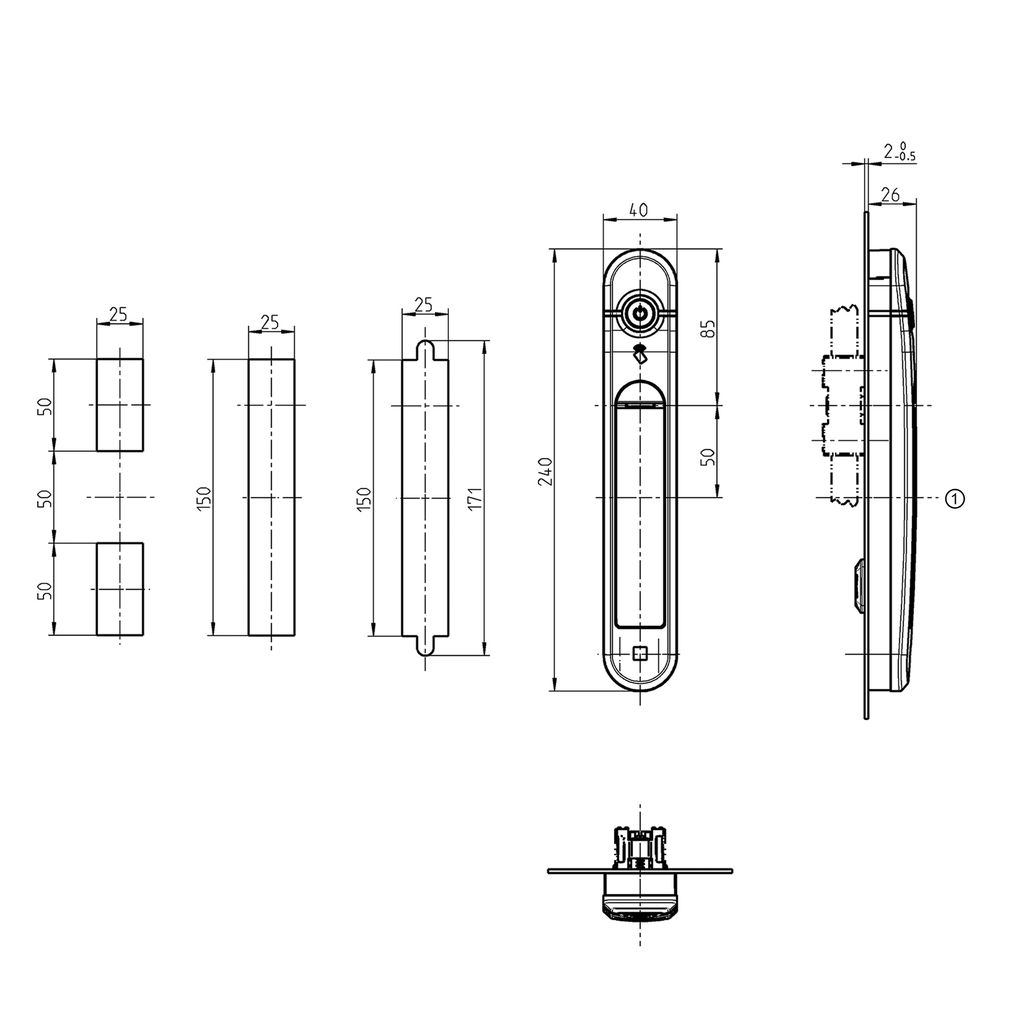

1 = Centre door
Internal Reference:
3000-U961-41
Barcode:
3000-U00961-0000041
Product Type:
Swinghandle, Lifthandle
Program:
3000
Catalog sheet:
9A-130
Material of the module :
Zinc die white aluminium powder-coated and polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing,Outside the sealing
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
Electromechanical release
Swivel Handle:
26 mm
Pan Handle Length:
240 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right

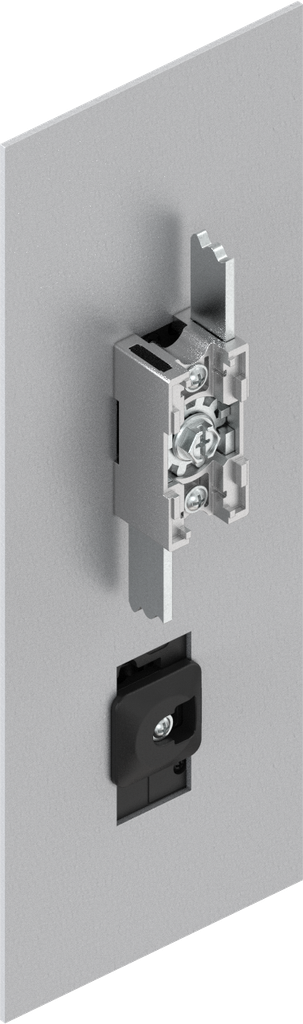

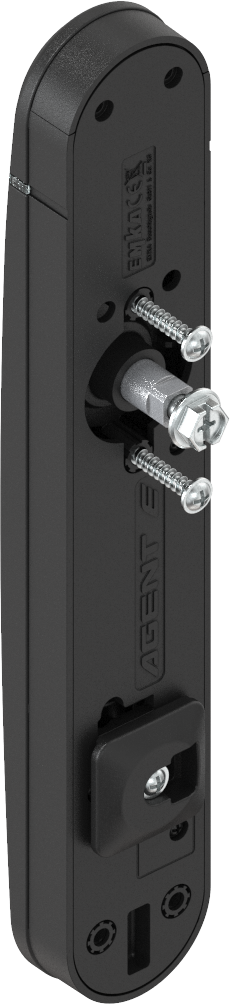

Locking components:
Rod control,Bearing bush with cam
