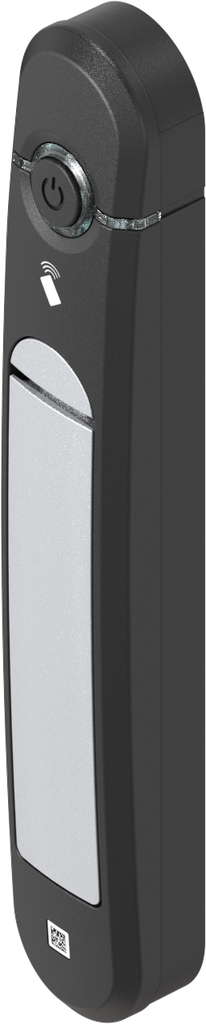

Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black
Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black
Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U910-24
with adapter plate and drive for Rittal enclosure VX25
Product information:
Features Authentication via 13.56 MHz RFID cards. Remote opening is always possible in addition Optionally, 4-eye principle for authentication with 2 authorised cards The handle has a connection option for one door contact In combination with the Access Unit, the middle LED in the sensor field can be actuated to signal possible malfunctions in the cabinet, such as increased temperature Two handles Agent E Wired can be connected to one Access Unit Max. 32 Access Units ≘ max. 64 handles Agent E Wired can be administered by one Control Unit An emergency power function is possible by using the integrated USB port The installation in racks of different manufacturers is solved with various adapters On request ① = Door centre ② = Door contact ③ = Door centre
Internal Reference:
3000-U910-24
Barcode:
3000-U00910-0000024
Product Type:
Swinghandle, Lifthandle
Program:
3000
Material of the module :
Zinc die white aluminium powder-coated and polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
4 mm
RFID card reader:
Wireless with RFID 13.56 MHz
Locking set:
Electromechanical release
Swivel Handle:
26 mm
Door Version :
Left,Right
Locking components:
Cam
