Electronic keypad with 2 locking system units polyamide GF black, Polyamide GF black

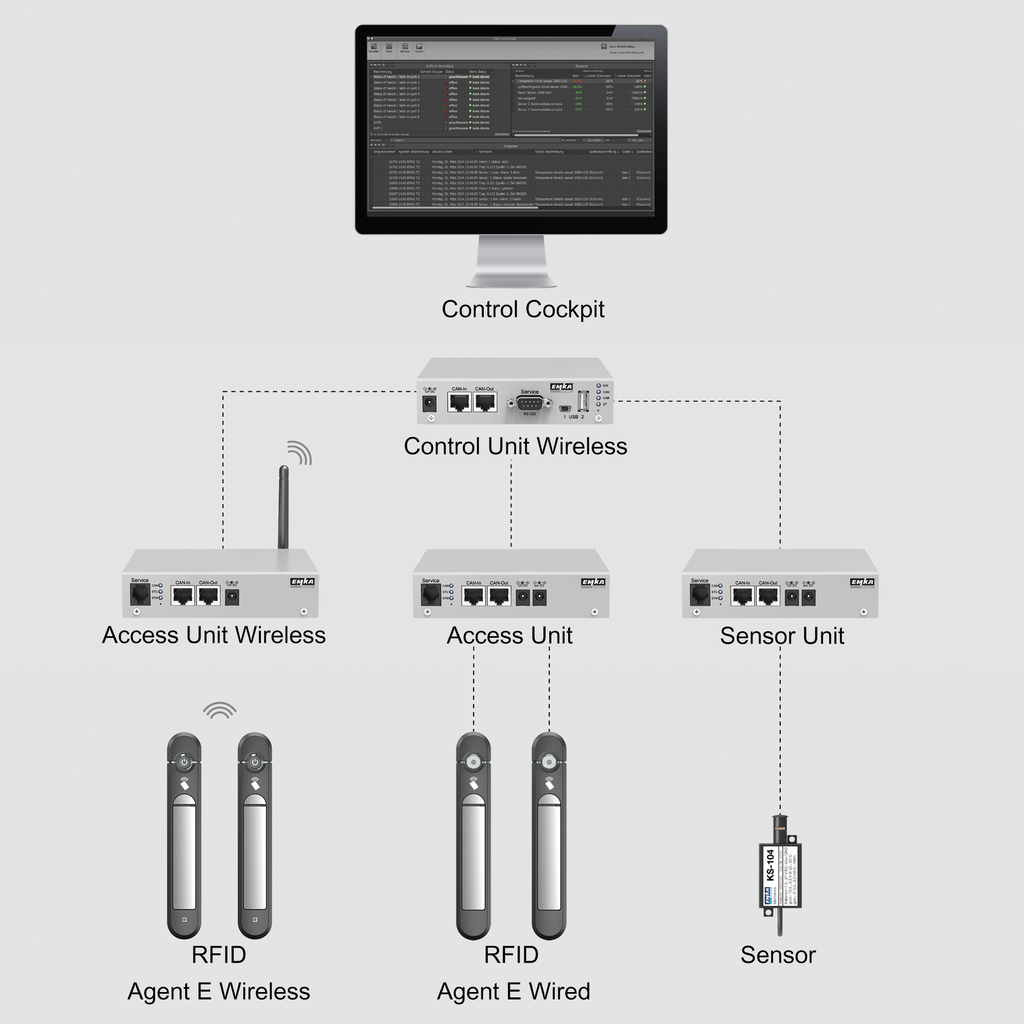

EMKA Control Cockpit, extension for 1 further system (Control Unit);
Access Unit for 2 handles and / or card readers Legic®; 3000-U47-08
This product has no valid combination.
Product information:
- Direct connection of 2 series Agent E Wired swinghandles
- Control of the central LED in the handle via terminal block on the rear side
- Alternatively, connection of 2 electromechanical locks and 2 external card readers
- Max. 32 Access Units er Control Unit Wireless
- Administration of up to 64 handles via one IP address
Power supply: 12 ... 24 VDC, 200 mA + outputs

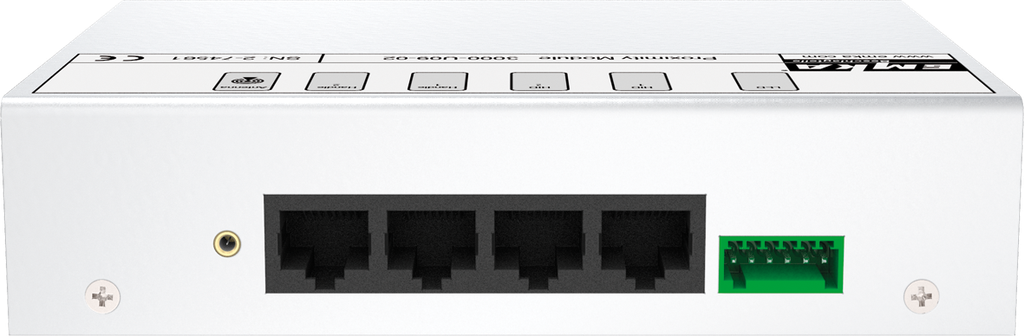

Handle outputs: 2 (RJ45), max. 12 V / 1,000 mA, or
Max. 24 V / 500 mA per output
Port for card reader: 1 (pin terminal) Legic®

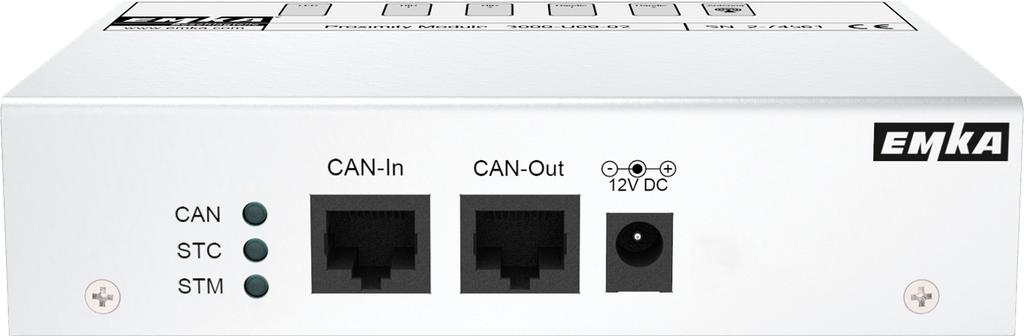

CAN bus ports: 2
Operating temperature: +5 ... +45 °C
Dimensions (L x B x H): 107 x 135 x 33 mm
Scope of delivery: Reading antenna with two RFID cards; Assembly bracket
Internal Reference:
3000-U47-08
Barcode:
3000-u00047-0000008
Product Type:
ELM - Access Unit
Program:
3000
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
