Temperature sensor with plug for sensor unit;
Temperature sensor with plug for sensor unit;
Access unit for 2 handles and / or card readers HID;
Access unit for 2 handles and / or card readers HID;

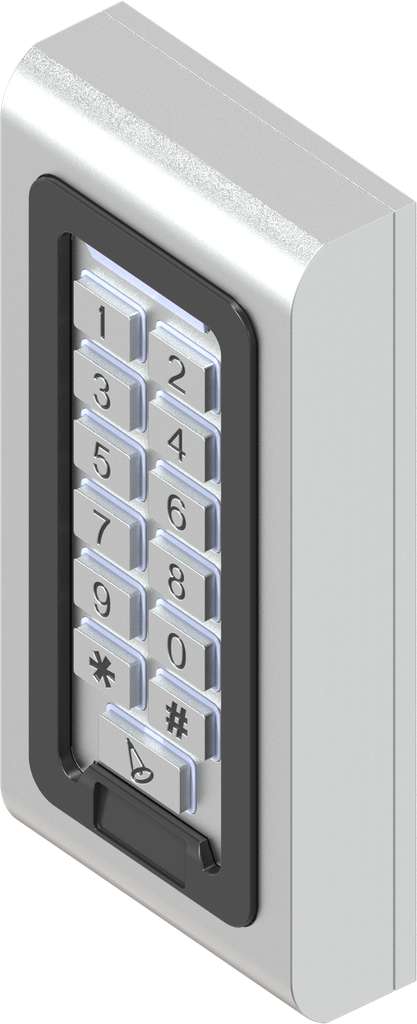

Card reader with keypad, Zinc die electropolished; 3000-U45-05

https://www.emka.com/products/3000-u45-05 https://www.emka.com/web/image/product.template/65759/image_1920?unique=b20e945

for Rack Management and Stand-Alone systems

    This combination does not exist.

    Stand-Alone solution Networked solution

    Product Benefits:

    Rack management systems The card reader is suitable for use in external access control systems in indoor and outdoor areas It reads RFID cards in Mifare Classic format and makes the card data available via a Wiegand 26-bit interface. The card reader can be connected to the Access Unit 3000-U47-02 as an external reading unit. An adapter is required for the electrical connection, which is not included in the scope of delivery The integrated keyboard cannot be used in this operating mode Stand-Alone systems The card reader with keypad can be used in stand-alone applications in indoor and outdoor areas. It reads cards in Mifare Classic format. Authentication can be done by card, by PIN or by card and pin (2 factor authentication) Up to 2,000 users can be stored locally A potential-free relay contact is available for controlling closures

    • The card reader is suitable for use in external access control systems in indoor and outdoor areas
    • It reads RFID cards in Mifare Classic format and makes the card data available via a Wiegand 26-bit interface.
    • The card reader can be connected to the Access Unit 3000-U47-02 as an external reading unit. An adapter is required for the electrical connection, which is not included in the scope of delivery
    • The integrated keyboard cannot be used in this operating mode


    Stand-Alone systems

    • The card reader with keypad can be used in stand-alone applications in indoor and outdoor areas. It reads cards in Mifare Classic format.
    • Authentication can be done by card, by PIN or by card and pin (2 factor authentication)
    • Up to 2,000 users can be stored locally
    • A potential-free relay contact is available for controlling closures

    Product information:

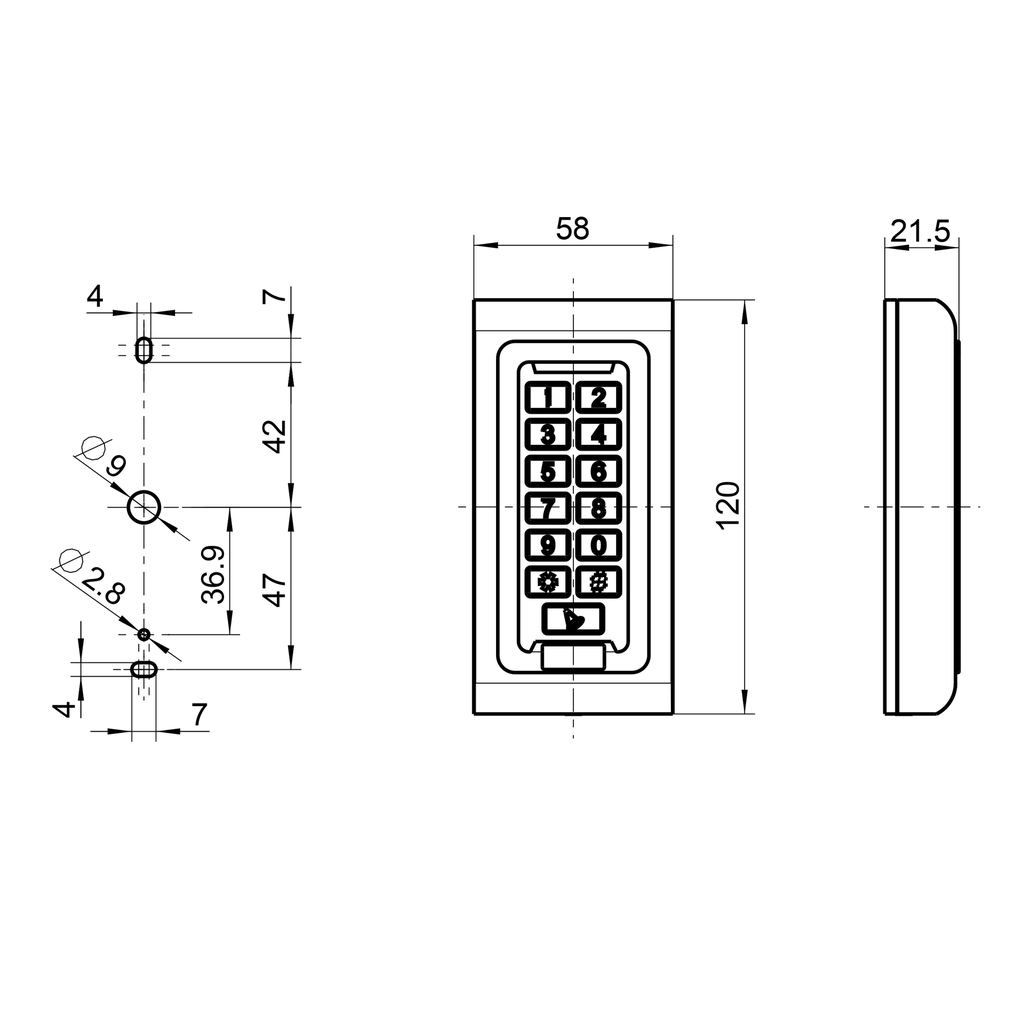

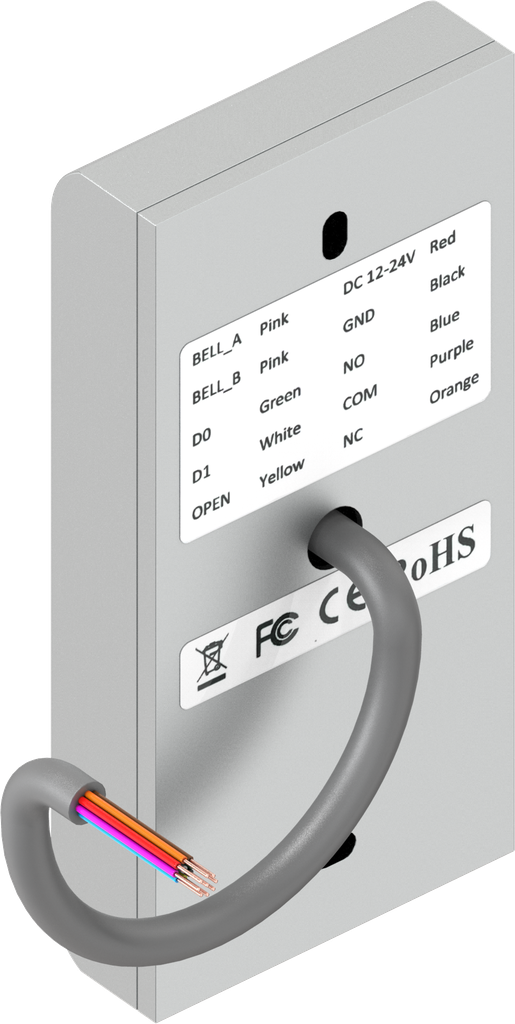

    Power supply: 12 ... 24 VDC, <60 mA, standby < 30 mA Output: Rack Management Systems - Wiegand 26 Output: Stand-alone systems - Relay: max. 30 V DC, max. 1 A Protection class: IP 68 Operating temperature: -45 ... +60° C Humidity: 10 ... 90 % r.H. (non-condensing) Dimensions (L x W x H): 120 x 58 x 21.5 mm Scope of delivery: connection cable 250 mm with open wire ends
    Internal Reference: 3000-U45-05
    Standards: Protection class IP 68
    Barcode: 3000-u00045-0000005
    Product Type: Card reader / Keypad
    Material: Zinc die
    Program: 3000
    Surface: electropolished
    Authentication Unit: Card reader (for Rack Management systems) including keypad (for Stand-Alone)
    Stand-Alone or networked system : Networked solution,Stand-Alone solution
    No Specifications
