Locking set with push button, Zinc die black powder-coated for outdoor use
Single-point latch with emergency opening, Basic delayed Re-Lock, Polyamide GF black

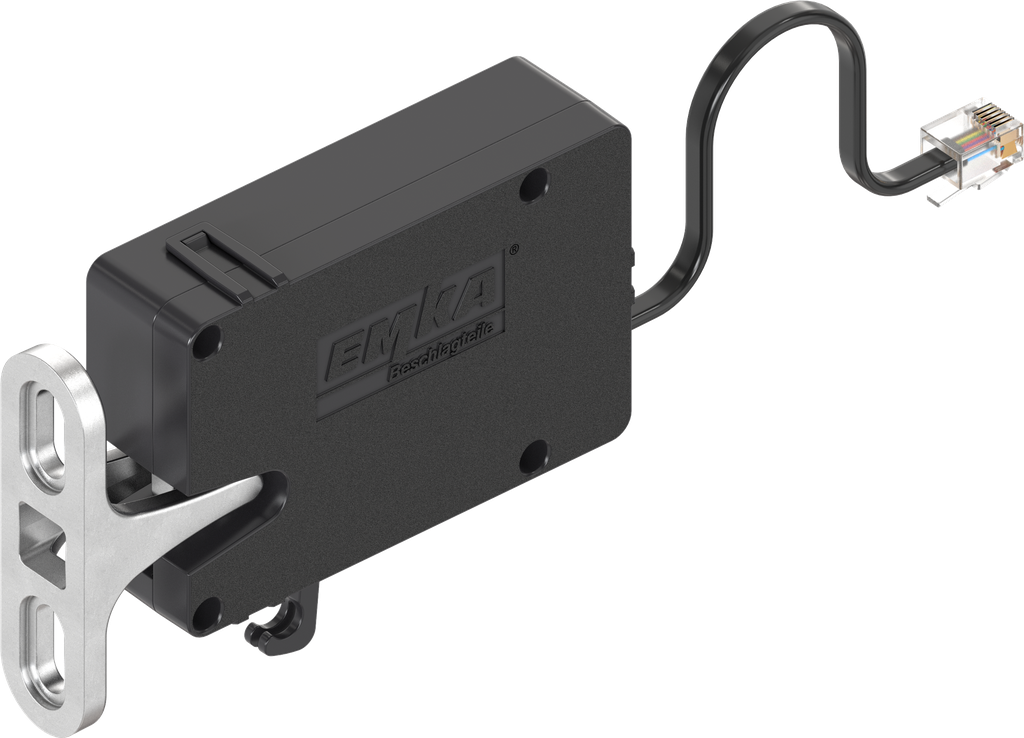

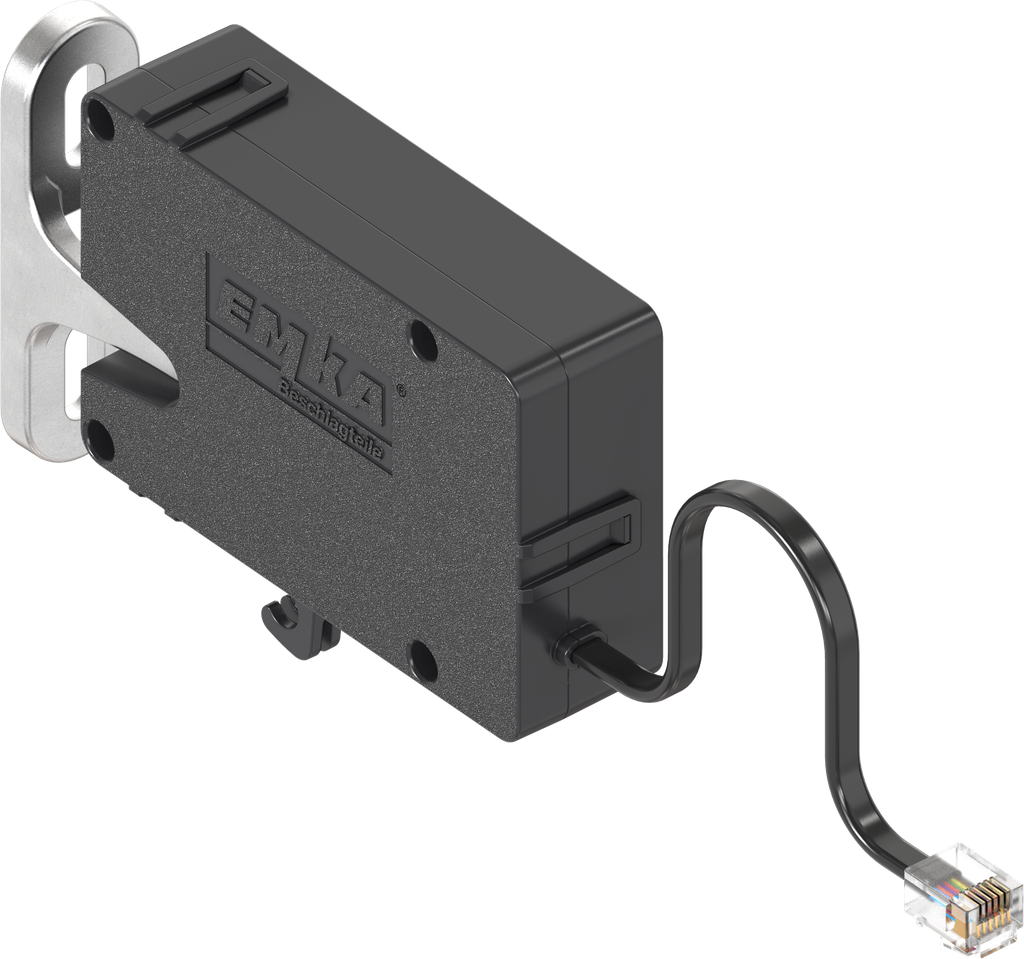

Single-point latch with emergency opening, Basic, Polyamide GF black; 3000-U330-01
Latch opens by switching on the power supply and locks as soon as the door is closed again
Product information:
The single-point latch is used in special application areas as locking system which is invisible from the outside.
The following versions are available:
– Basic = Latch opens by switching on the power supply and locks as soon as the door is closed again.
– Basic delayed Re-Lock = Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied.
– Energy store = Latch opens when switching off of the power supply (alternative to magnetic locks).
– Battery backup = Latch is permanently powered and opened via electrical pulse
- Broad supply voltage range of 9 ... 32 V
- Potential-free switch for remote monitoring of the state/door state
- Emergency opening in case of power failure possible via Bowden cable
Internal Reference:
3000-U330-01
Barcode:
3000-U00330-0000001
Product Type:
Single-point latch
Program:
3000
Material of the module :
Polyamide GF
Surface of the module:
black
Single point locking with integrated locking contact:
Basic
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
