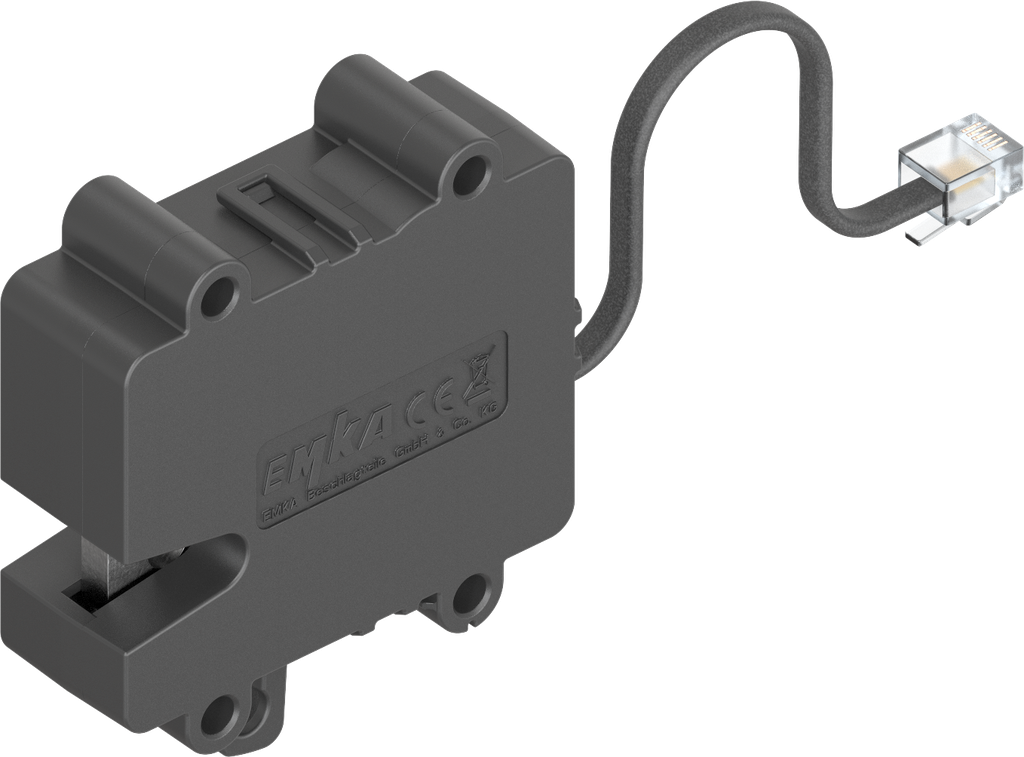

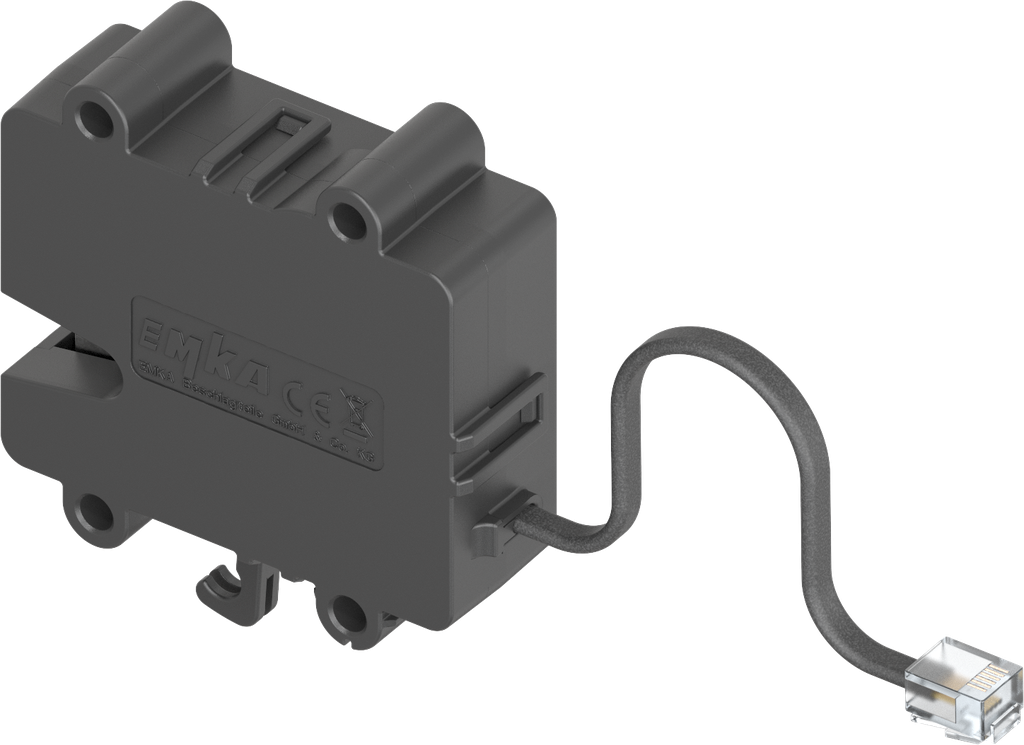

Single-point latch with emergency opening, Battery backup, Polyamide GF black; 3000-U301-04

https://www.emka.com/products/3000-u301-04 https://www.emka.com/web/image/product.template/235848/image_1920?unique=3603f96

Latch is permanently powered and opened via electrical pulse


    This combination does not exist.

    Networked solution


    Product information:

    The single-point latch is used in special application areas as a locking system which is invisible from the outside.

    Version: Battery backup = Latch is permanently powered and opened via electrical pulse; protection type IP 55 and ATEX / UL-Ex certification.

    • Broad supply voltage range of 9 ... 32 V
    • Potential-free switch for remote monitoring of the state/door state
    • Emergency opening in case of power failure, possible via Bowden cable
    • Connection possible to Locking Unit 3000-U32-x or Access Unit 3000-U47-x; Adapter cable optional
    • ATEX / UL-Ex certification

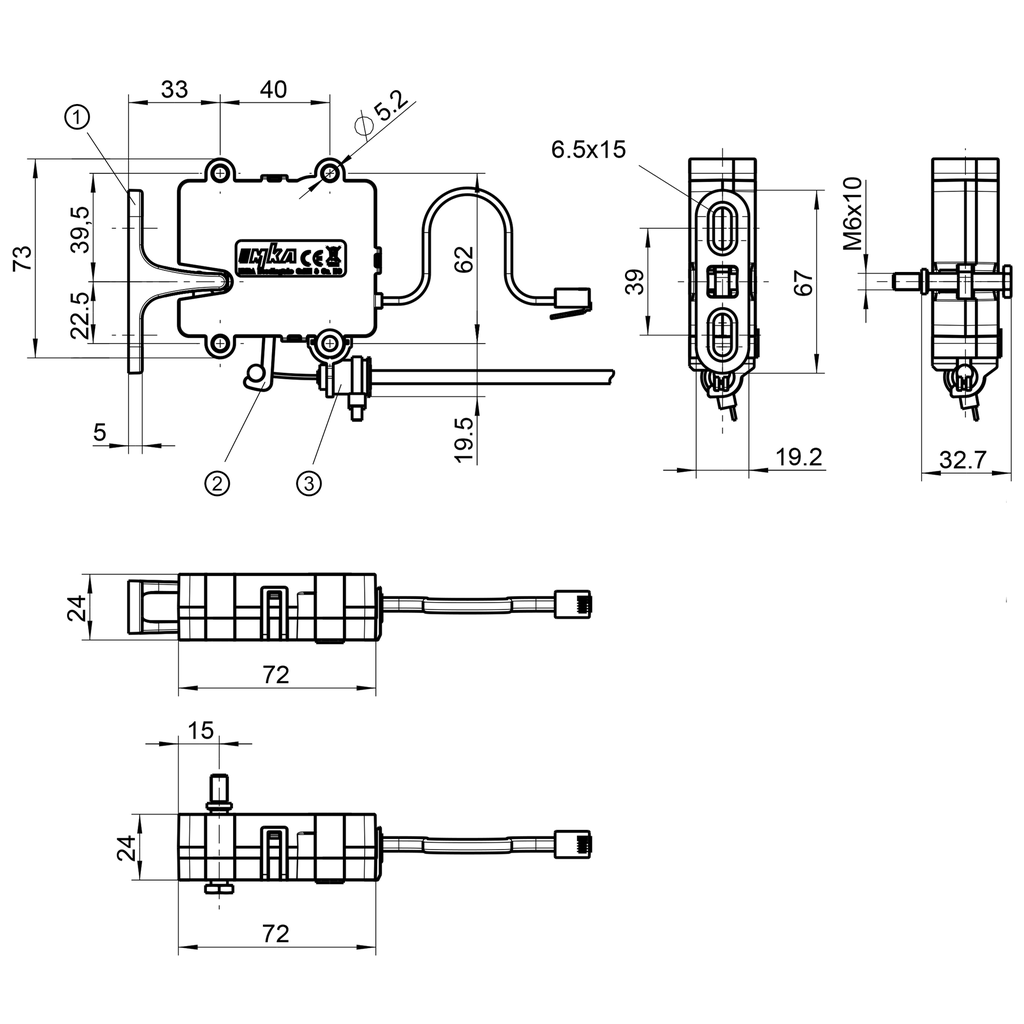

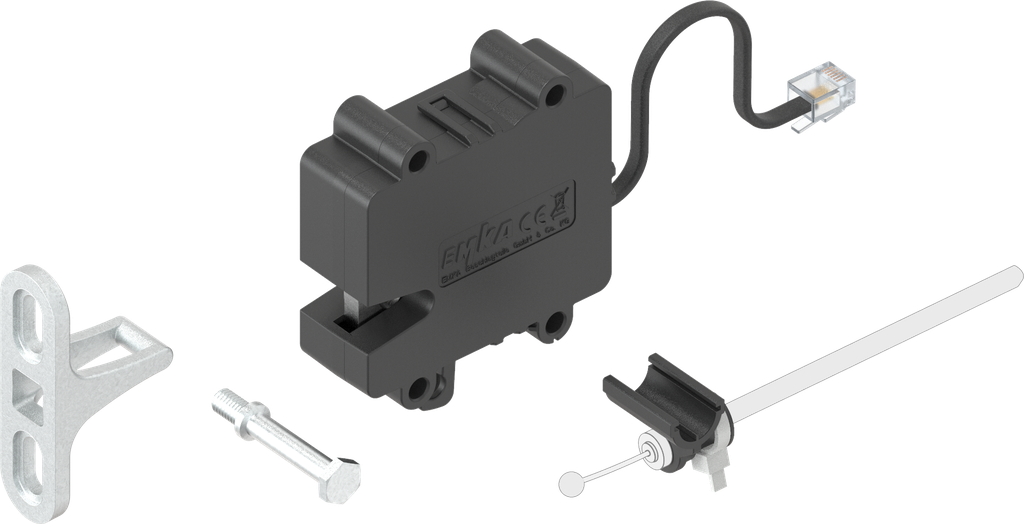

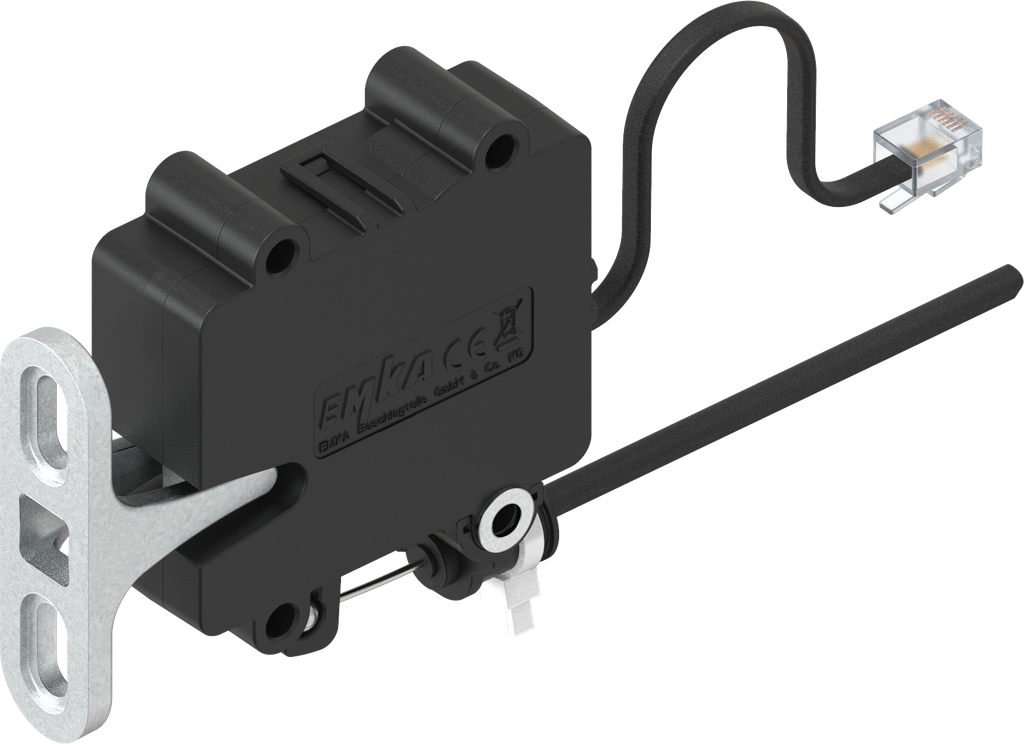

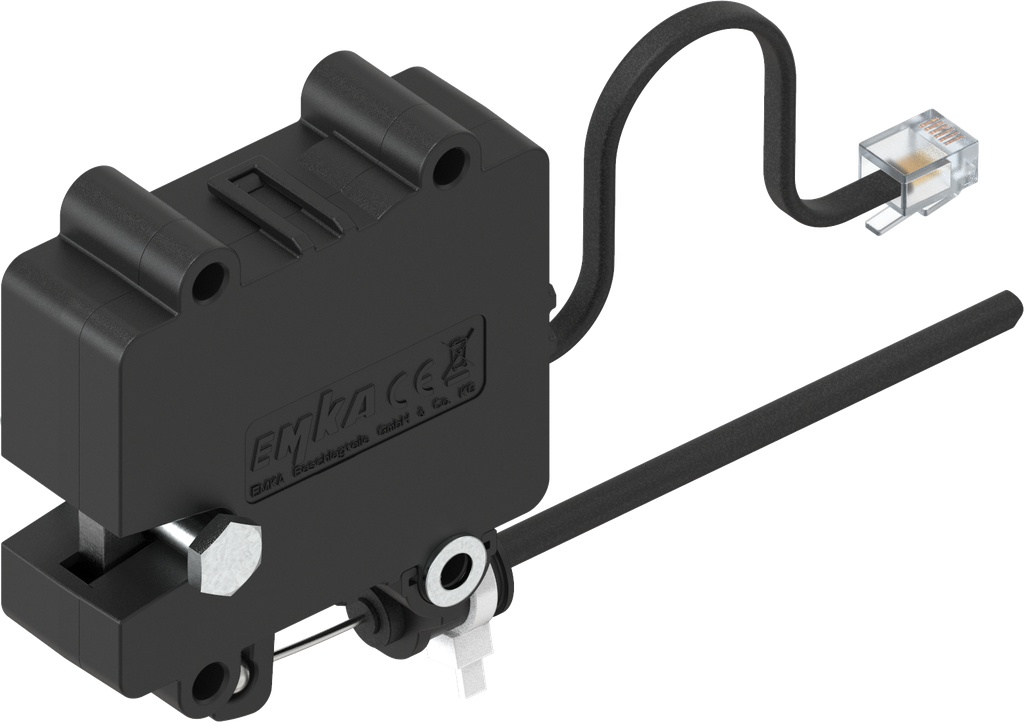

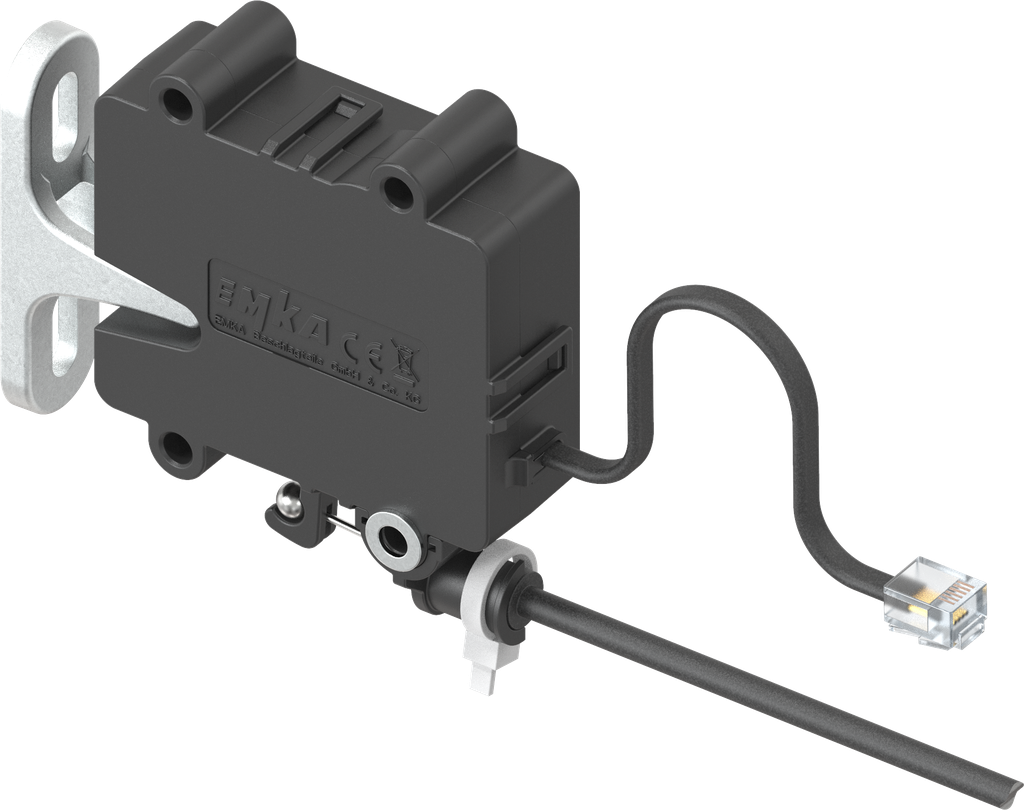

    Caption (see drawing):

    ① = Catch or locking bolt
    ② = Lever for mechanical unlocking, e.g. Bowden cable
    ③ = Bowden cable mounting

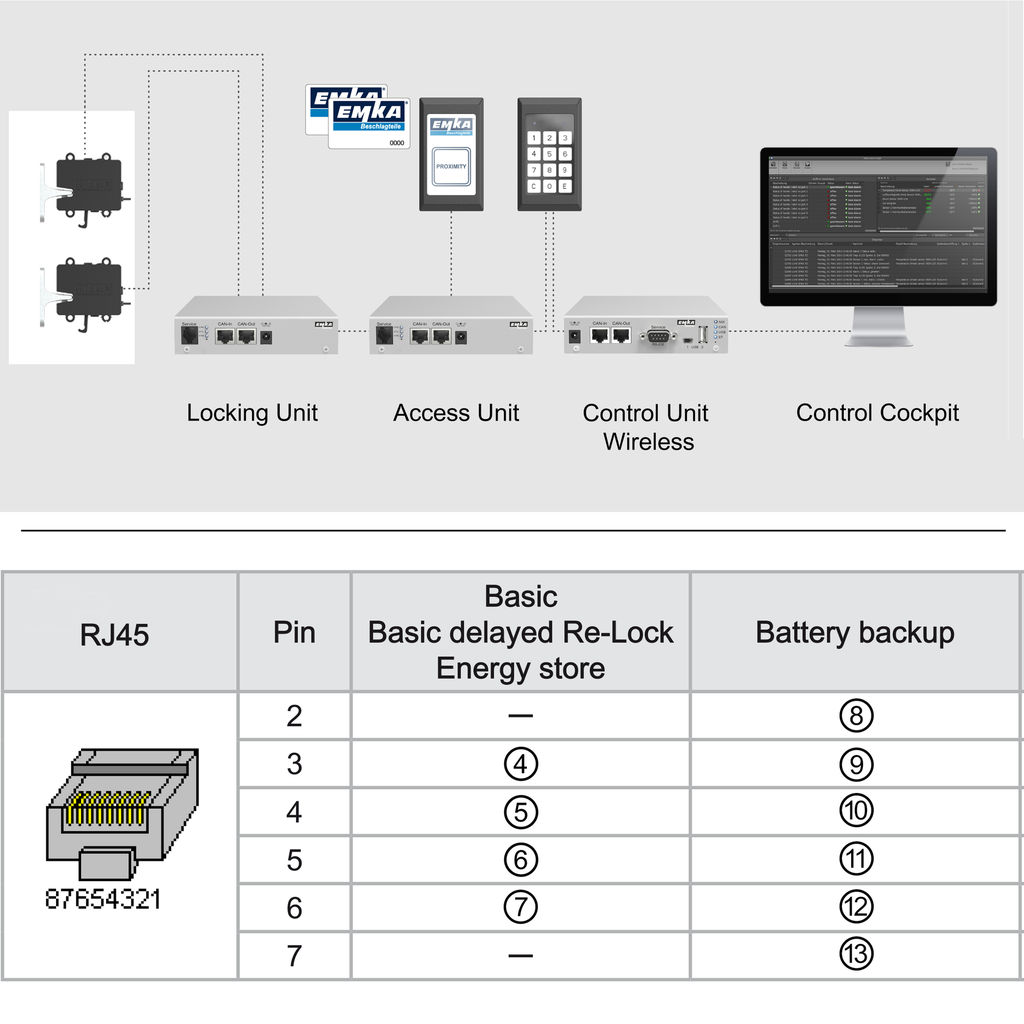

    Pin assignment of the RJ45 connector (see table):

    PIN 2 = ⑧ V -
    PIN 3 = ⑨ V -
    PIN 4 = ⑩ V -
    PIN 5 = ⑪ Release +
    PIN 6 = ⑫ Open collector output
    PIN 7 = ⑬ V +

    Assembly instruction:

    Per Control Unit Wireless max. 64 Locking Units ≘ max. 512 single-point latches
    Keypad / Card reader with Access Unit optional

    Internal Reference: 3000-U301-04
    Standards: Protection class IP 55
    Barcode: 3000-u00301-0000004
    Product Type: Single-point latch
    Program: 3000
    Material of the module : Polyamide GF
    Surface of the module: black
    Single point locking with integrated locking contact: Battery backup; Verriegelung wird mit Energie versorgt und über Impuls geöffnet
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
    No Specifications
    View All Products
    Catch
    ELM - Locking Unit

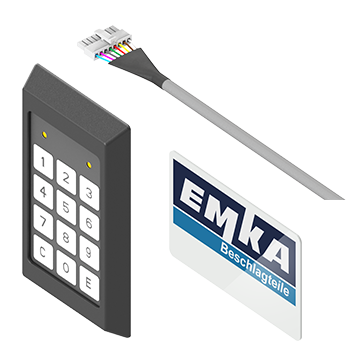

    Electronic components
