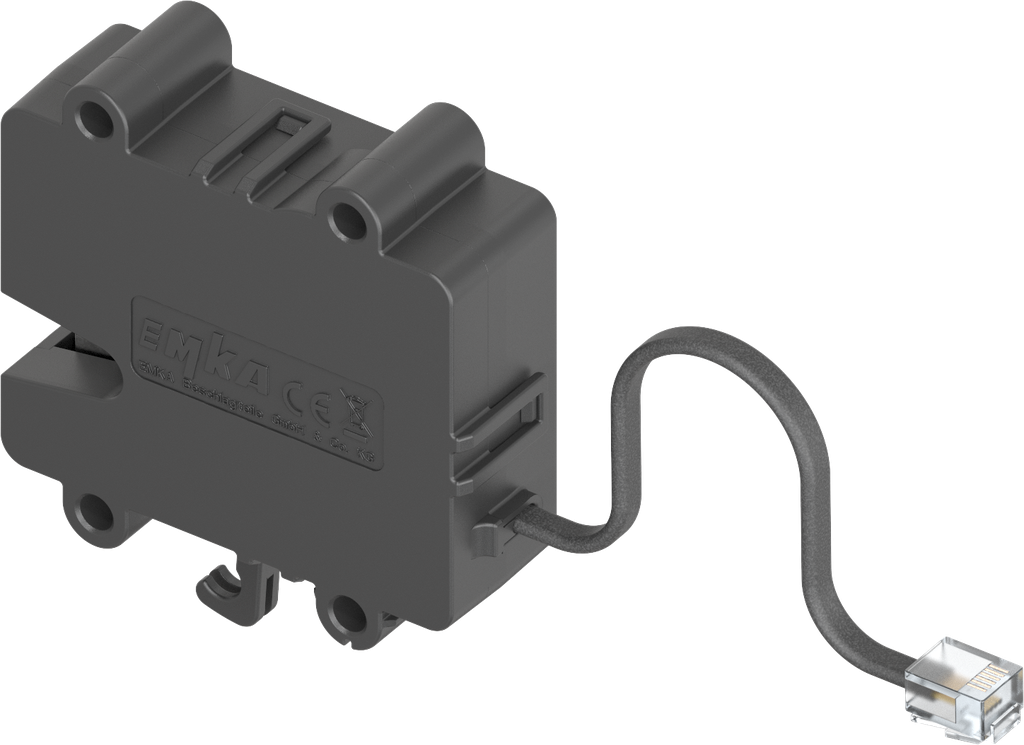

Single-point latch with emergency opening, Basic delayed Re-Lock, Polyamide GF black; 3000-U301-02

https://www.emka.com/products/3000-u301-02 https://www.emka.com/web/image/product.template/235847/image_1920?unique=dc8acb6

Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied


    This combination does not exist.

    Networked solution


    Product information:

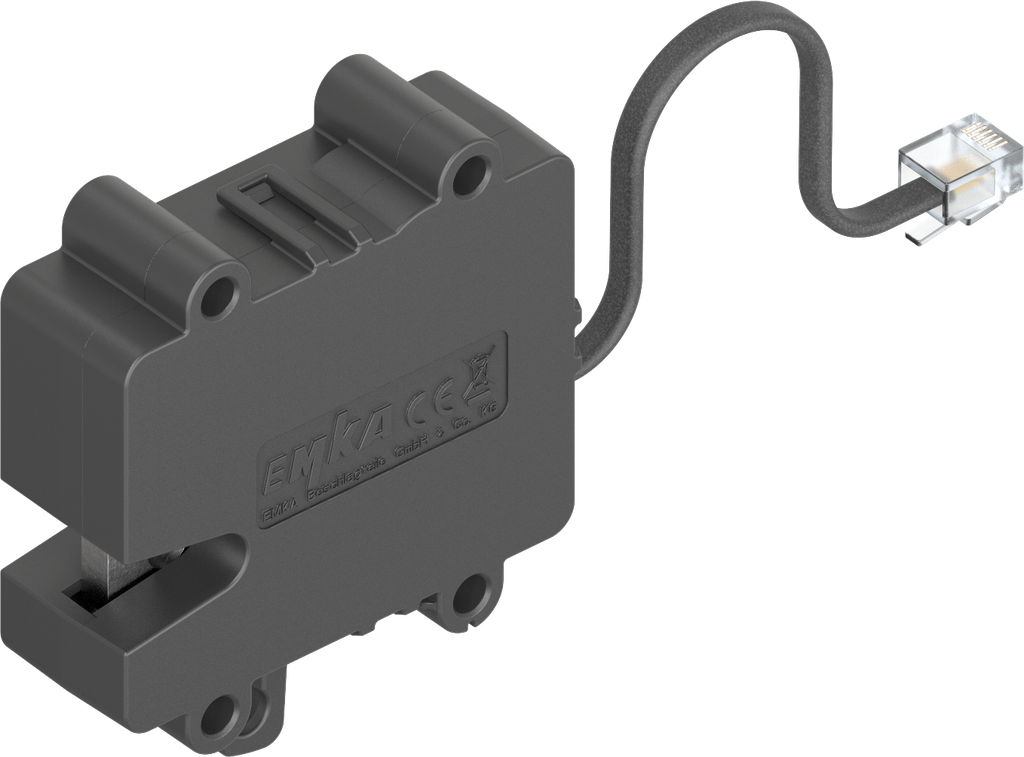

    The single-point latch is used in special application areas as a locking system which is invisible from the outside.

    Version: Basic delayed Re-Lock = Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied.

    • Broad supply voltage range of 9 ... 32 V
    • Potential-free switch for remote monitoring of the state/door state

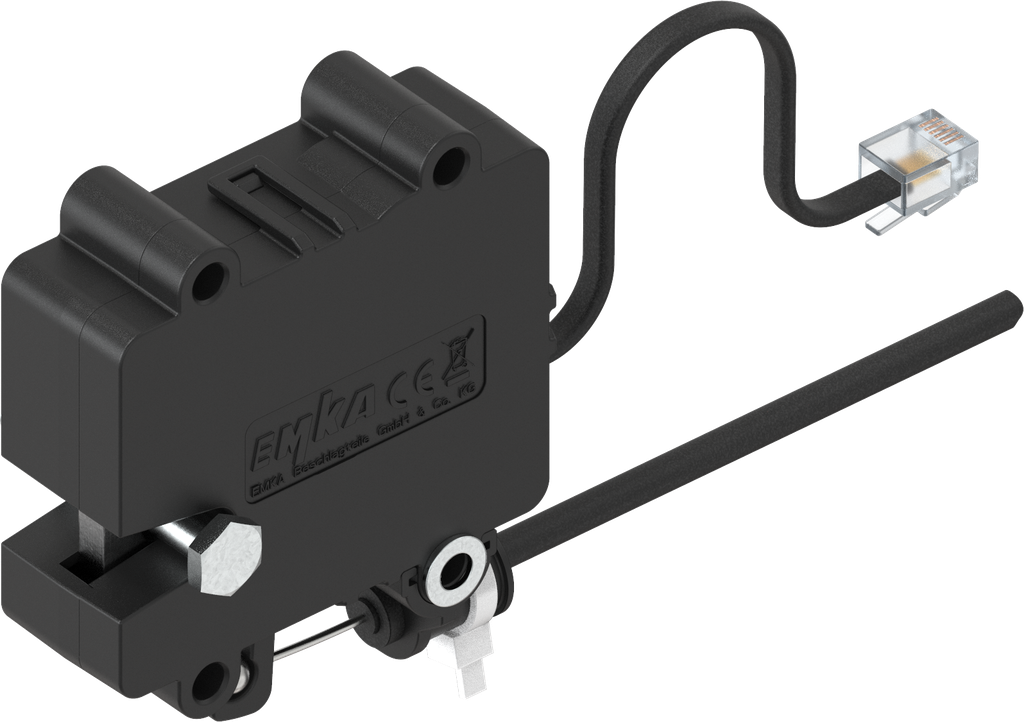

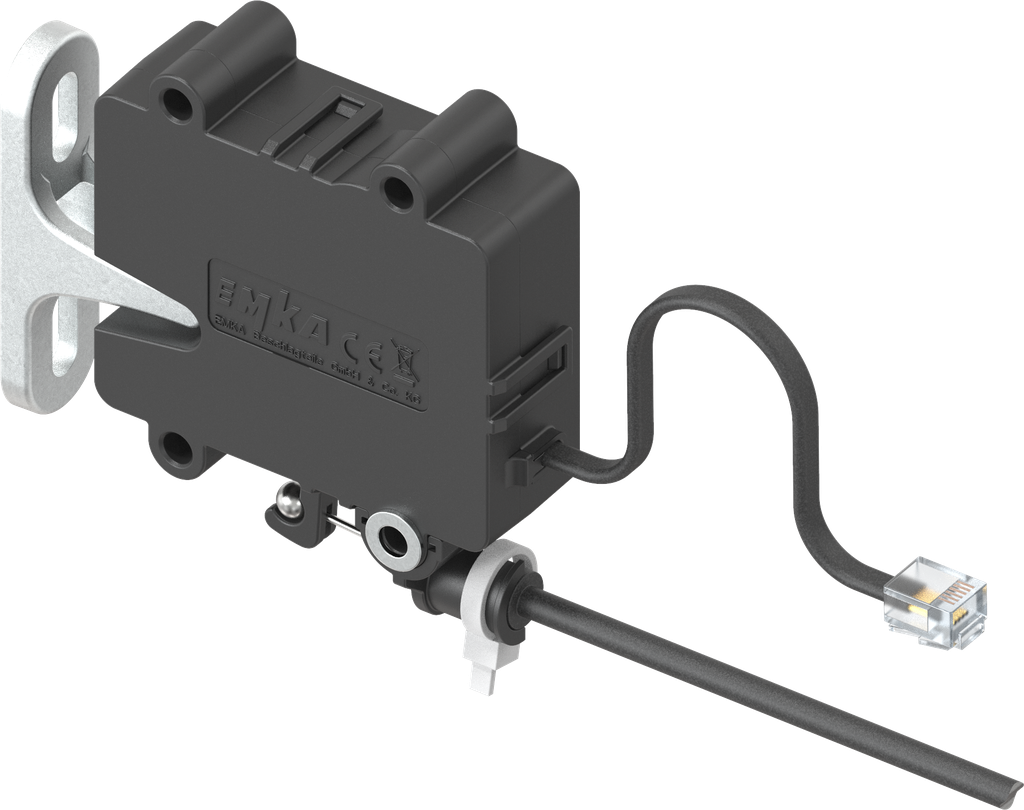

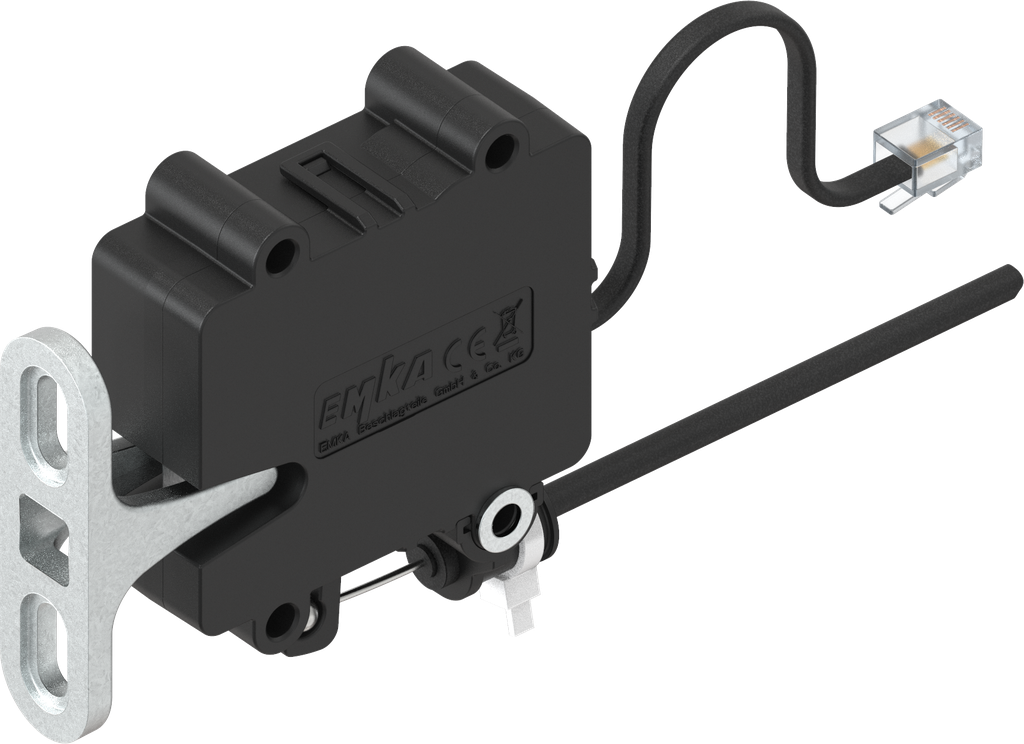

    • Emergency opening in case of power failure, possible via Bowden cable
    • Connection possible to Locking Unit 3000-U32-x or Access Unit 3000-U47-x; Adapter cable optional

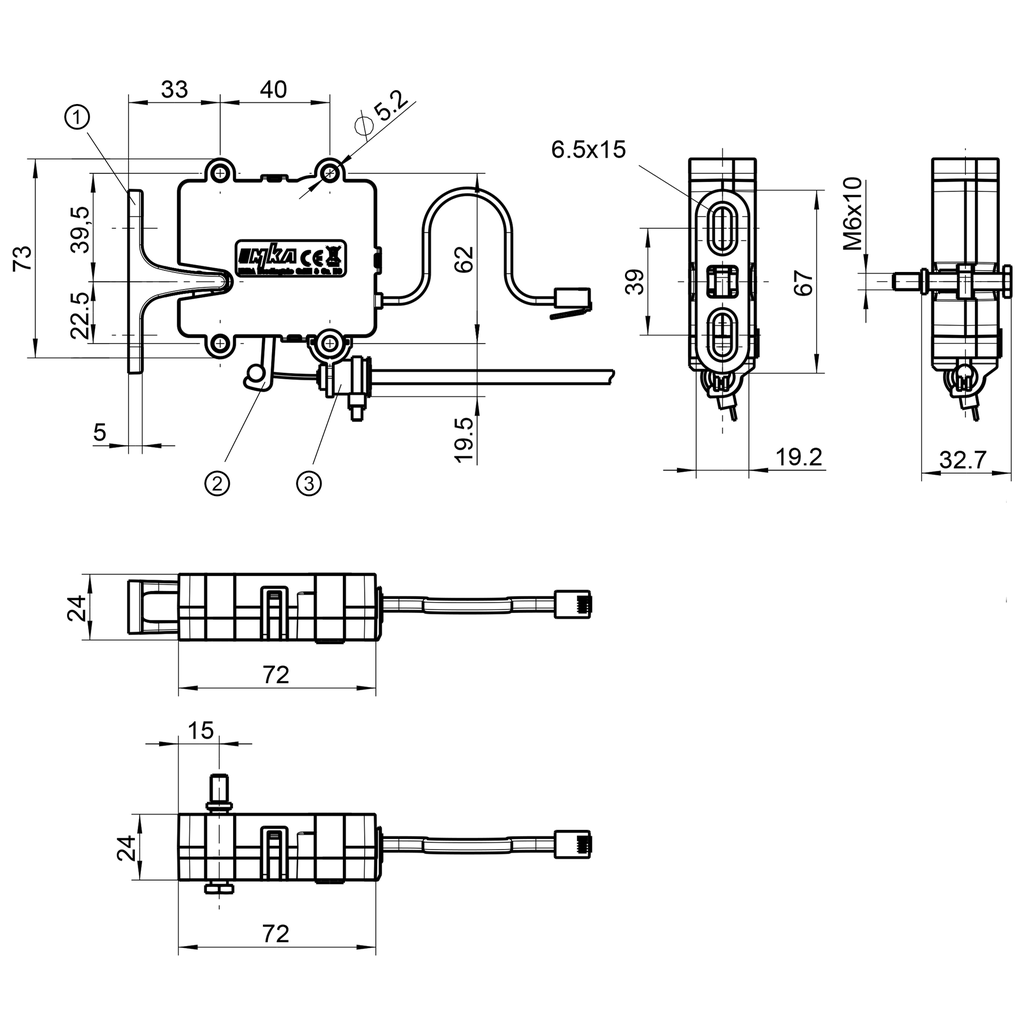

    Caption (see drawing):

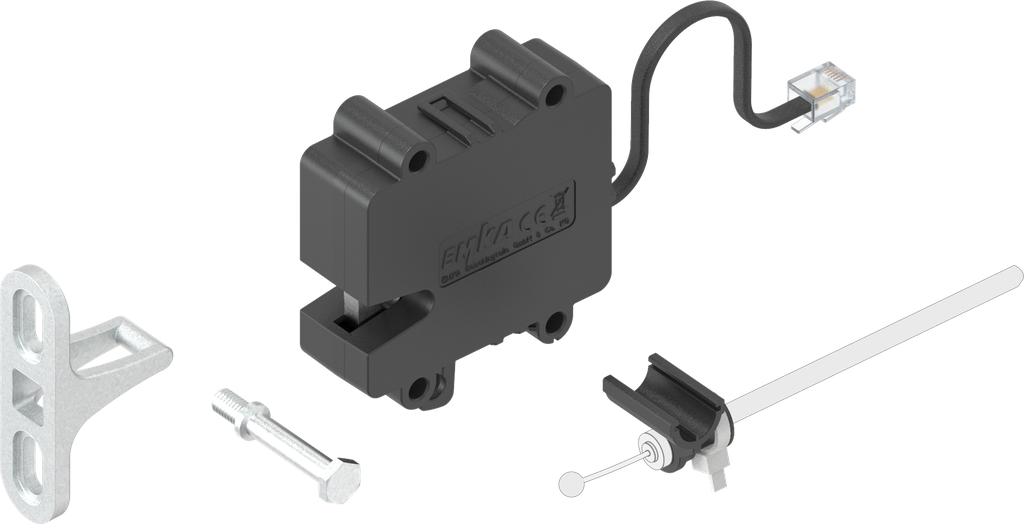

    ① = Catch or locking bolt
    ② = Lever for mechanical unlocking, e.g. Bowden cable
    ③ = Bowden cable mounting

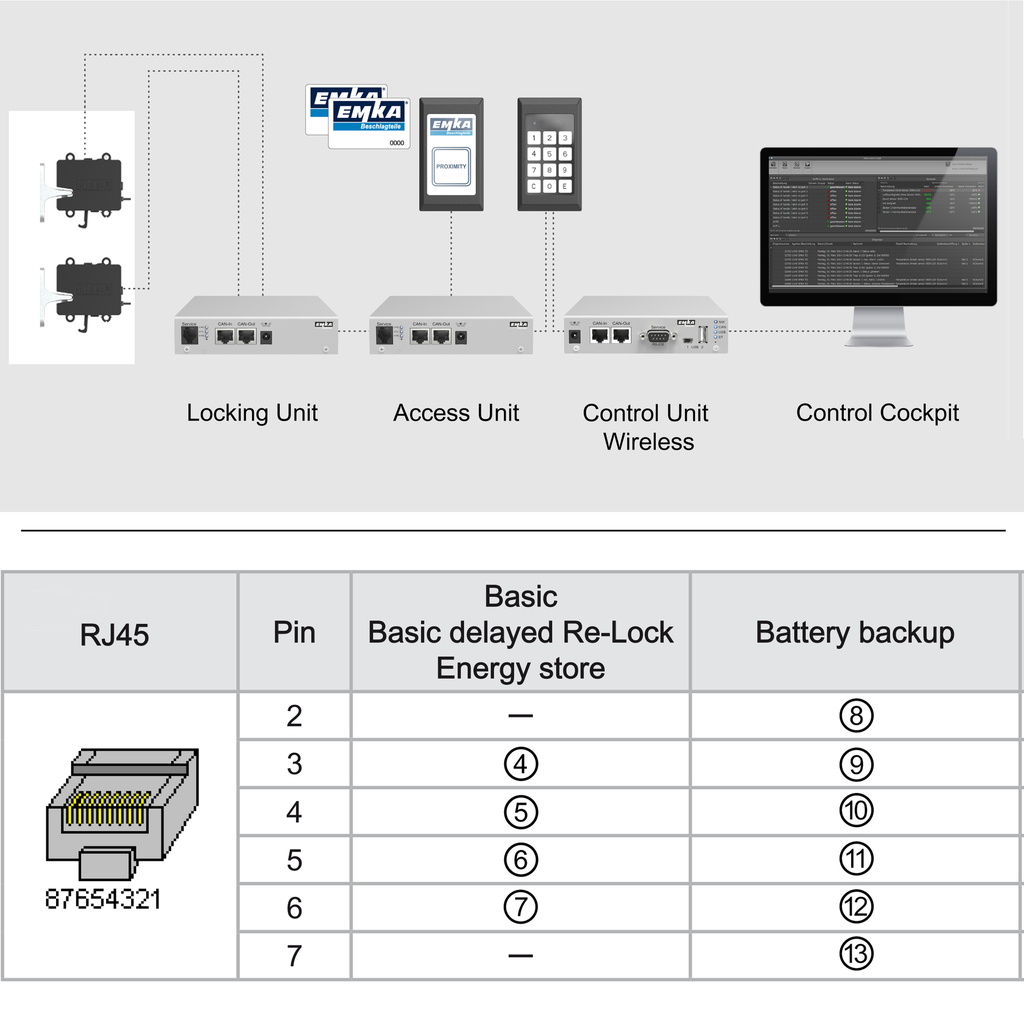

    Pin assignment of the RJ45 connector (see table):

    PIN 3 = ④ Contact
    PIN 4 = ⑤  V -
    PIN 5 = ⑥ V +
    PIN 6 = ⑦ Contact

    Assembly instruction:

    Per Control Unit Wireless max. 64 Locking Units ≘ max. 512 single-point latches
    Keypad / Card reader with Access Unit optional

    Internal Reference: 3000-U301-02
    Barcode: 3000-u00301-0000002
    Product Type: Single-point latch
    Program: 3000
    Material of the module : Polyamide GF
    Surface of the module: black
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
    No Specifications
