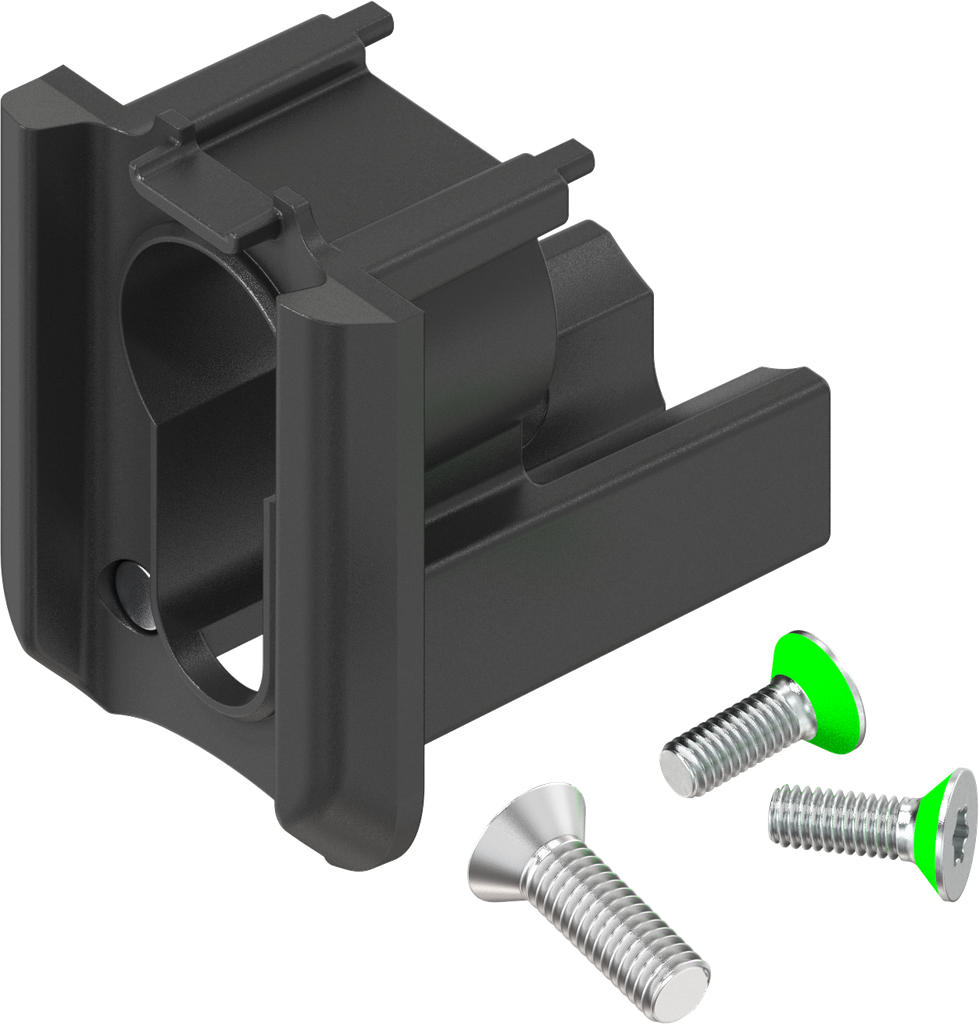

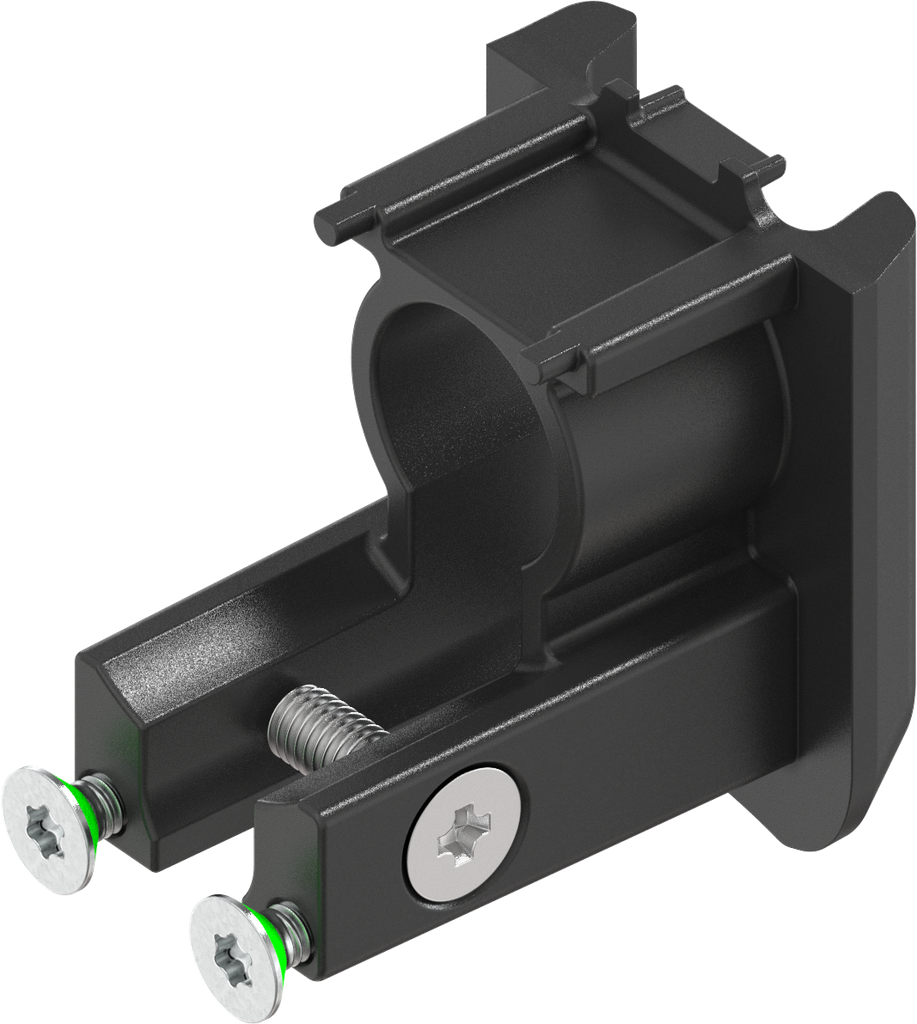

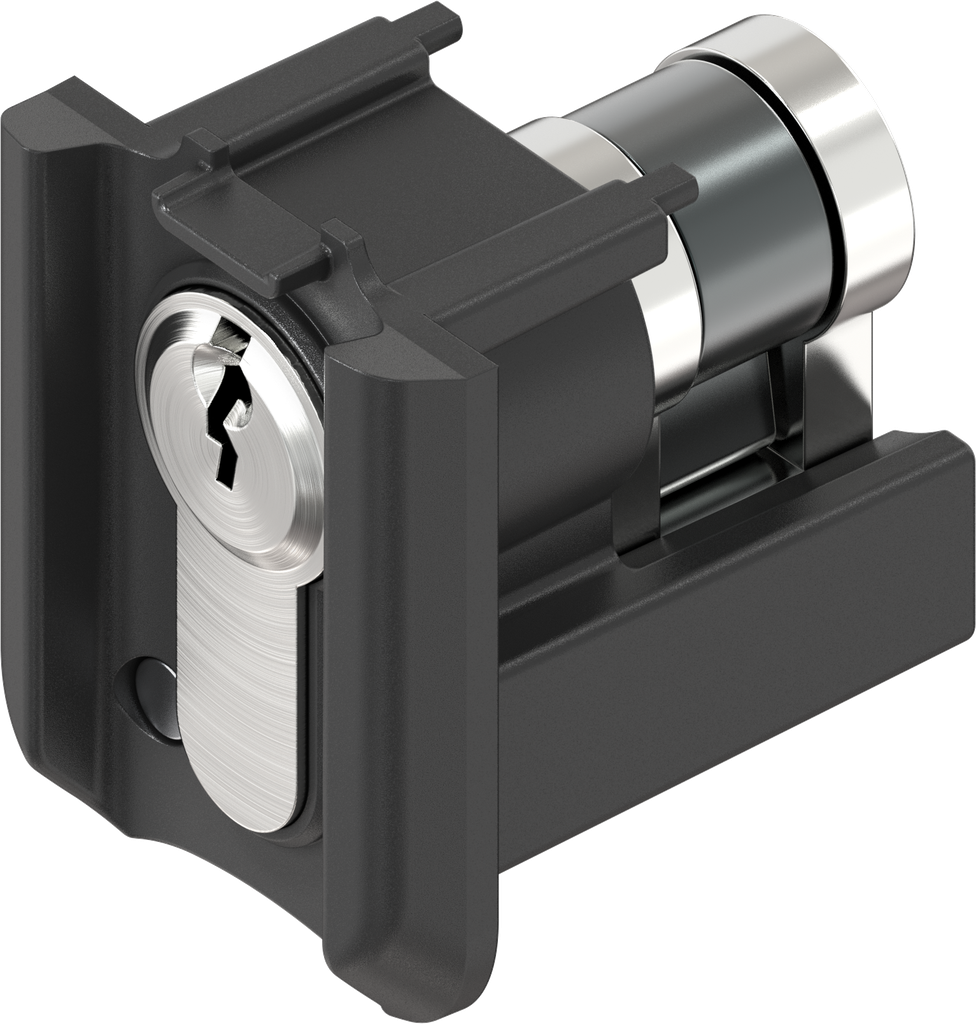

Locking set for profile half cylinder 40, Zinc die black powder-coated
Locking set, left version, for profile half cylinder 40, Zinc die black powder-coated for outdoor use
Locking set for profile half cylinder 40, Zinc die black powder-coated for outdoor use; 2225-U11-01
for A = 30 mm, for short version
Product Benefits:
- Flat design
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Permanent magnet holds the cylinder cover
- Locking set made of zinc die
- Patent pending
Assembly instruction:

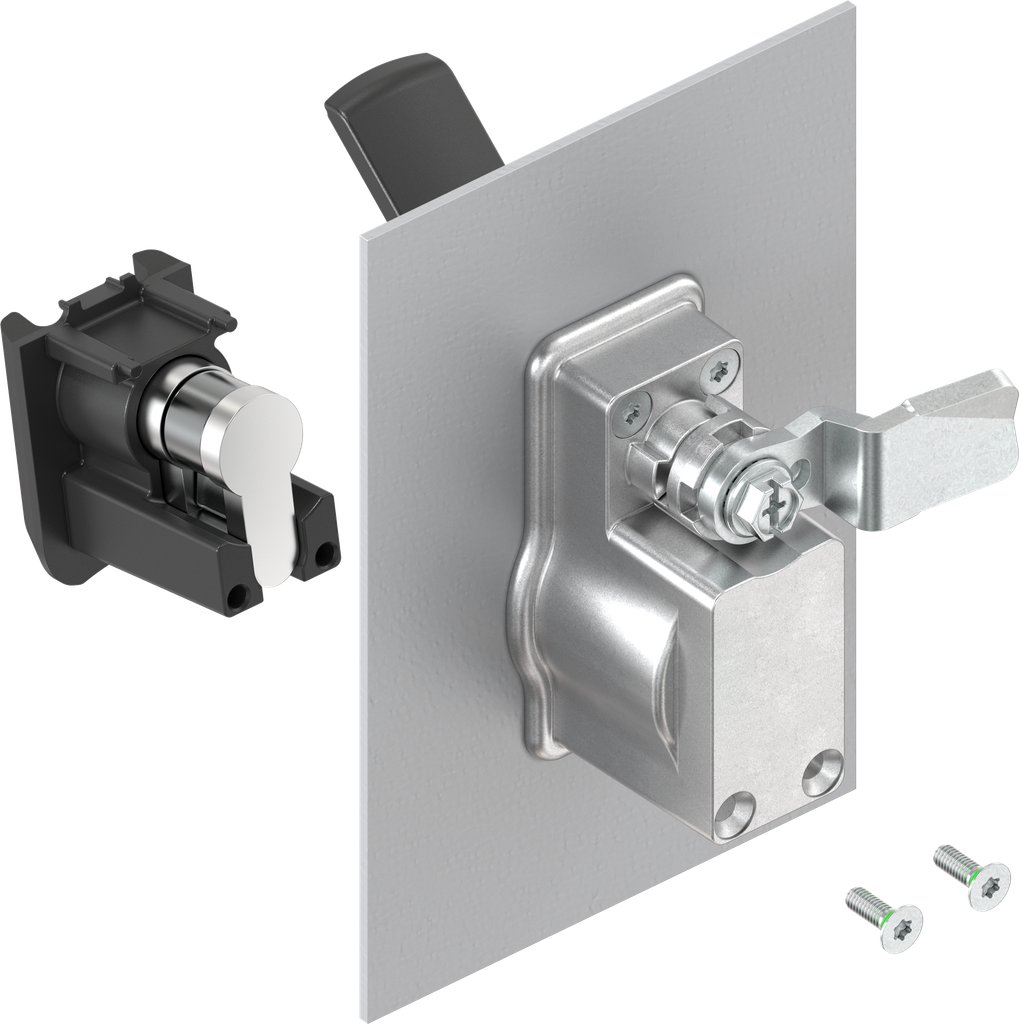

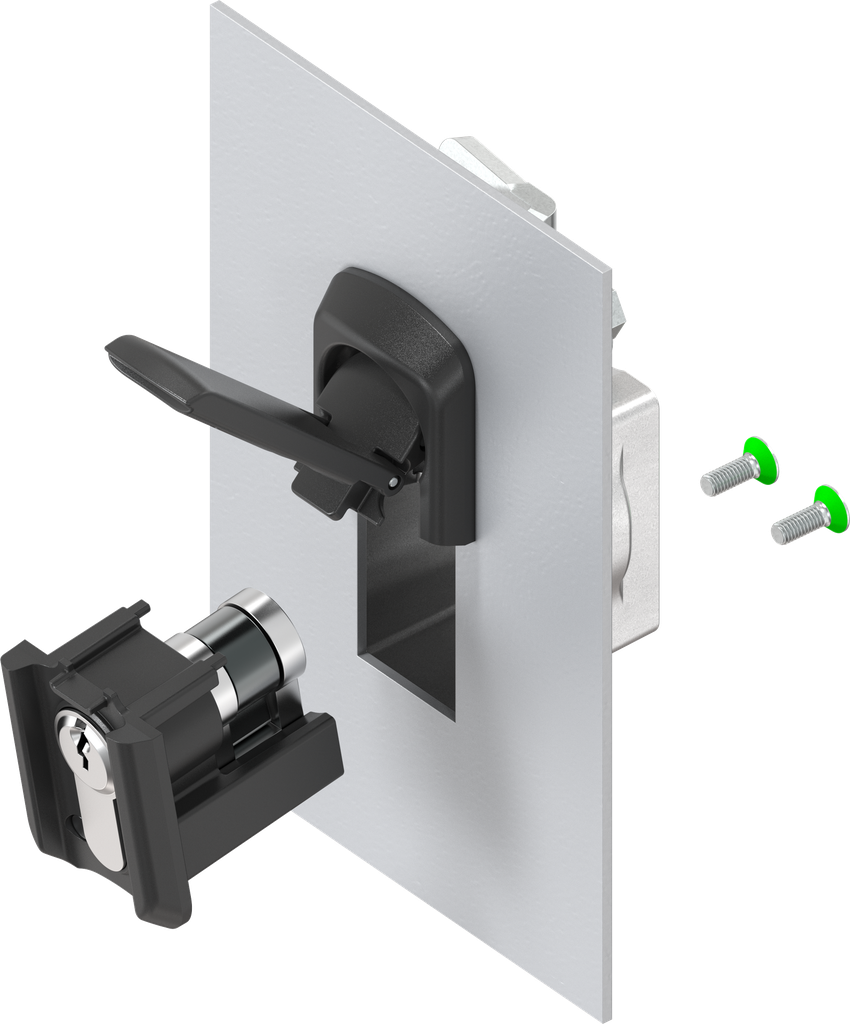

Easy exchange of the locking sets
By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U11-01
Barcode:
2225-U00011-0000001
Product Type:
Locking set
Program:
2225
Catalog sheet:
3J-140
Material of the module :
Zinc die
Surface of the module:
black powder-coated for outdoor use
Article with property rights:
Yes
Installation Position of Block:
Dish
Locking set:
Profile half cylinder A = 30
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
