Escutcheon 2150 for insert double bit with mask, Polyamide GF black
Escutcheon 2150 for insert double bit with mask, Polyamide GF black
Escutcheon 2153 with L-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon 2153 with L-handle, non-keyed, Polyamide black and zinc die black powder-coated

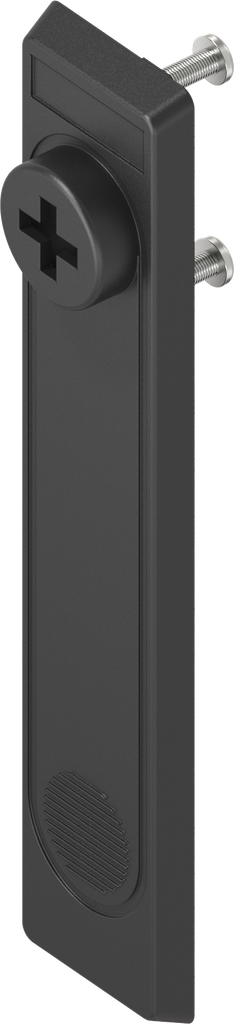

Escutcheon 2150 for insert FIAT, Polyamide GF black; 2150-U3

https://www.emka.com/products/2150-u3-escutcheon-2150-for-insert-fiat-polyamide-gf-black-234496 https://www.emka.com/web/image/product.template/234496/image_1920?unique=7ca7e22

    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 54
    No stock item, please ask for availability

    Product information:

    Logo recess: 27 x 8 x 0.5
    Multicolour pad print possible
    Internal Reference: 2150-U3
    Standards: Protection class IP 54
    Barcode: 2150-U00003-0000000
    Product Type: Escutcheon
    Program: 2150
    Catalog sheet: 3H-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert FIAT
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Insert
    Bearing bush
    Rod control

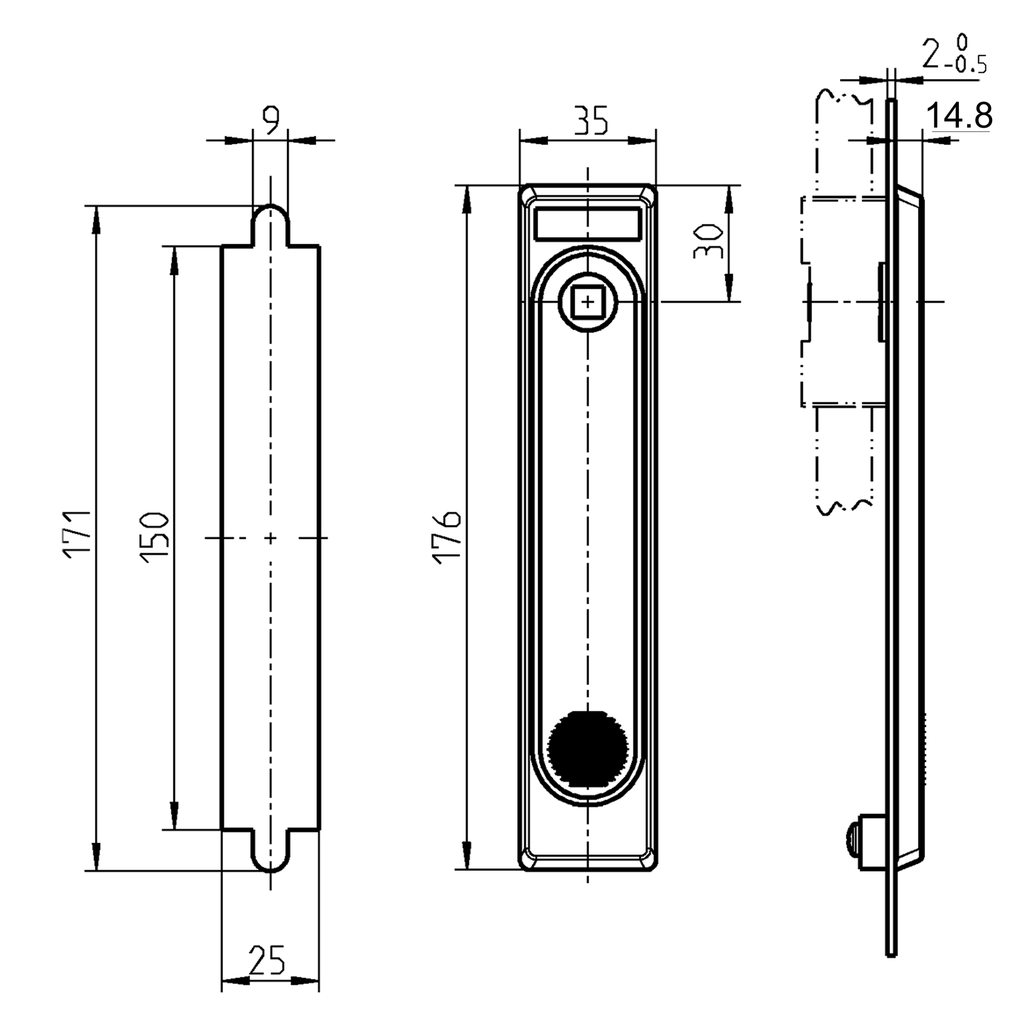

    Here you can find the product data sheets and CAD files of this product
