Locking set with insert square 7, Polyamide GF black
Locking set with insert square 7, Polyamide GF black
Locking set with insert triangular 9, Polyamide GF black
Locking set with insert triangular 9, Polyamide GF black

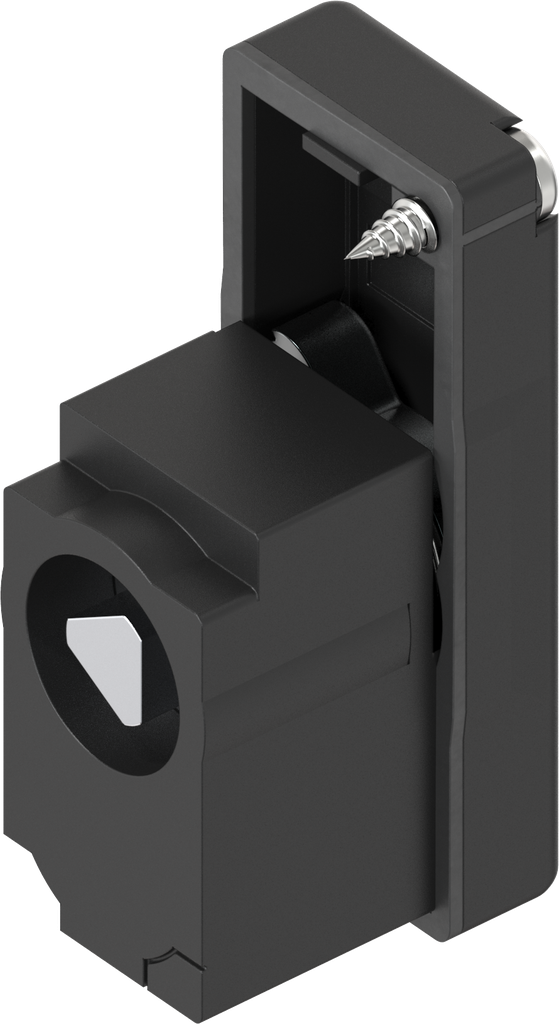

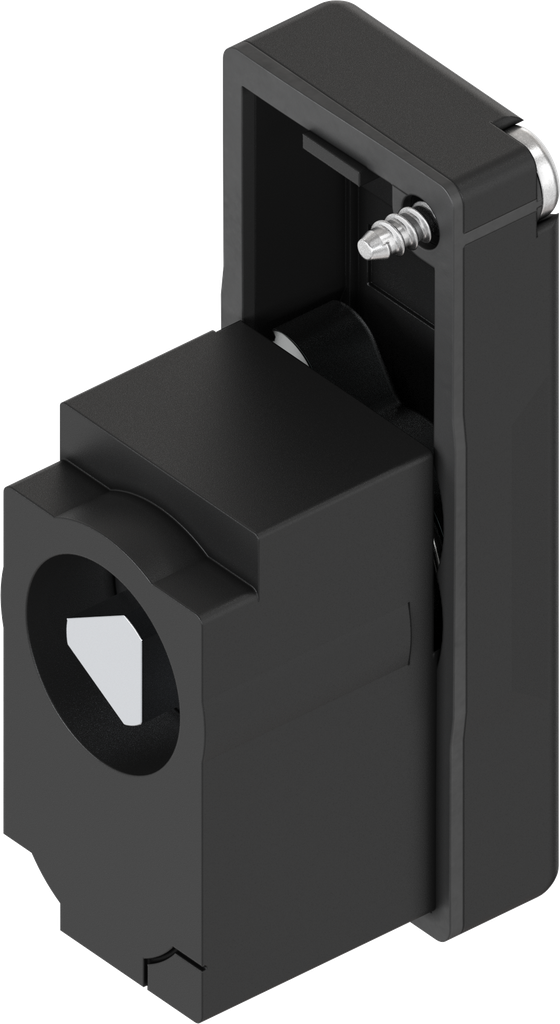

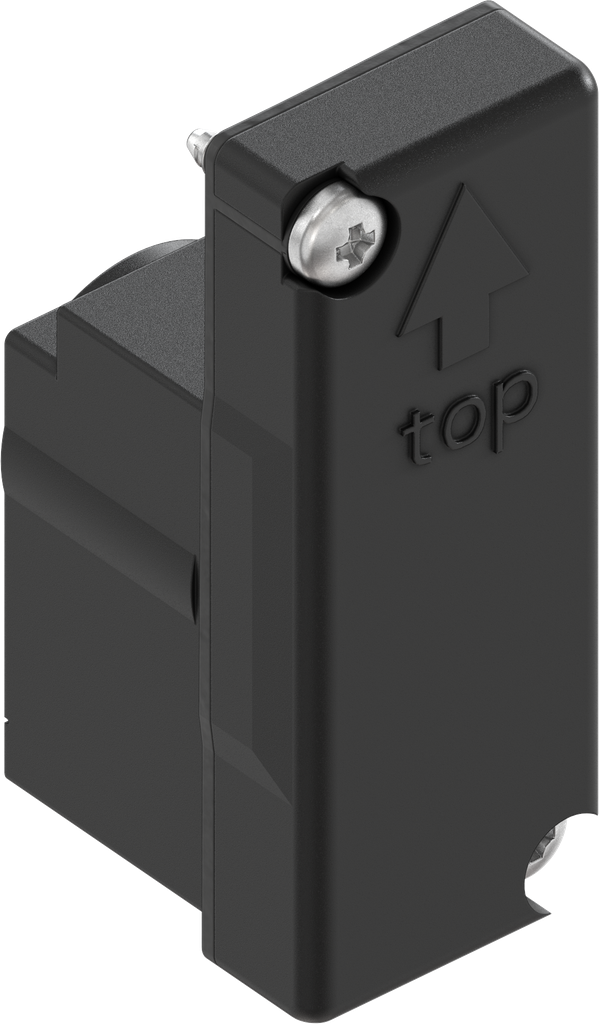

Locking set with insert triangular 8, Polyamide GF black; 2100-U38

https://www.emka.com/products/2100-u38 https://www.emka.com/web/image/product.template/234261/image_1920?unique=3290560

    This combination does not exist.

    No stock item, please ask for availability

    Product information:

    Insert is spring loaded
    Internal Reference: 2100-U38
    Barcode: 2100-U00038-0000000
    Product Type: Locking set
    Program: 2100
    Catalog sheet: 3XA-140
    Material of the module : Polyamide GF
    Surface of the module: black
    Article with property rights: Yes
    Type of actuation: Triangular 8
    Installation Position of Block: Dish
    Cloak: Yes

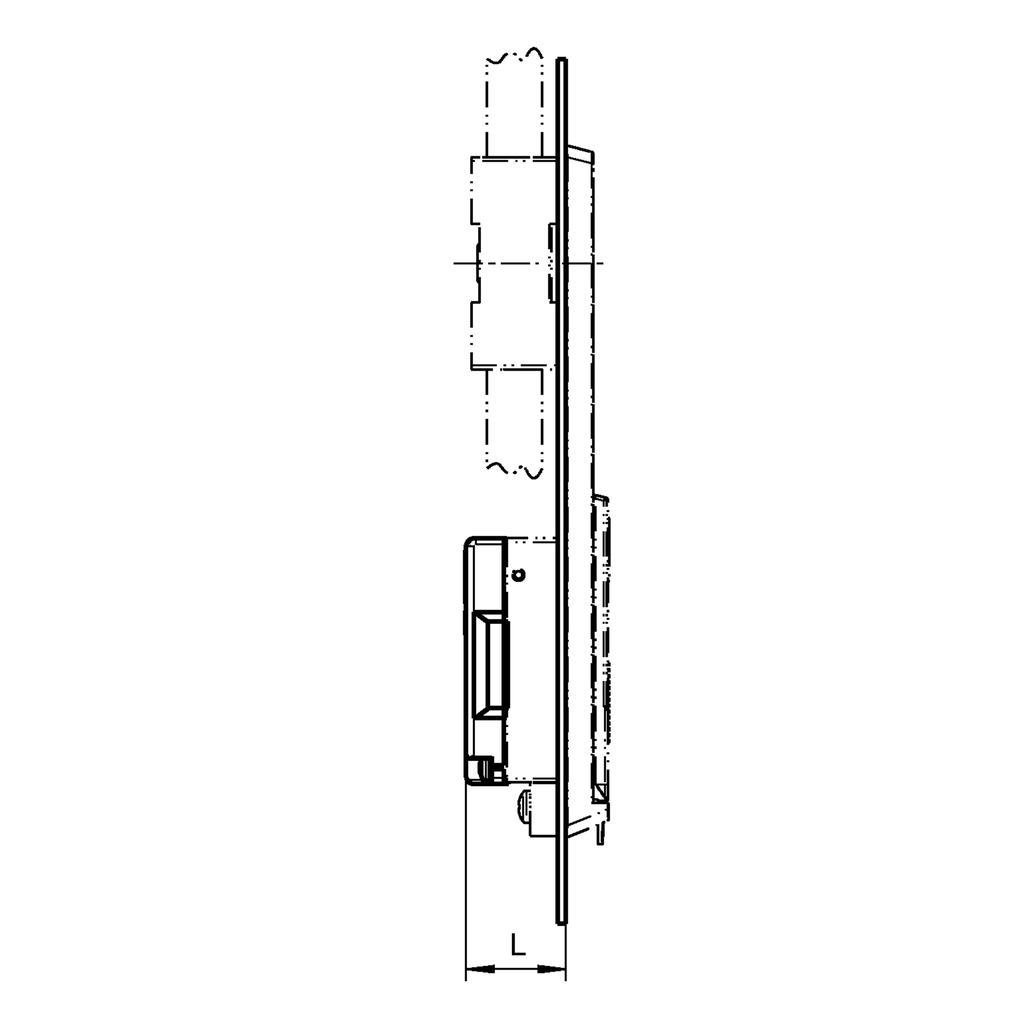

    Cap dimension L: Program 2400 = 20,Program 1180 = 21.5,Program 2100 = 25,Program 1150 = 31.5
    Locking set: Insert
    No Specifications
    View All Products
    Keys

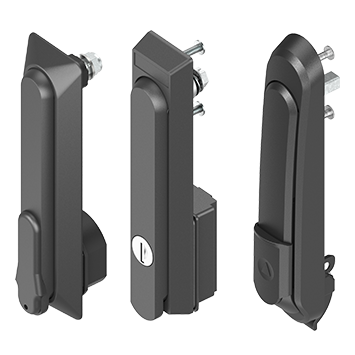

    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
