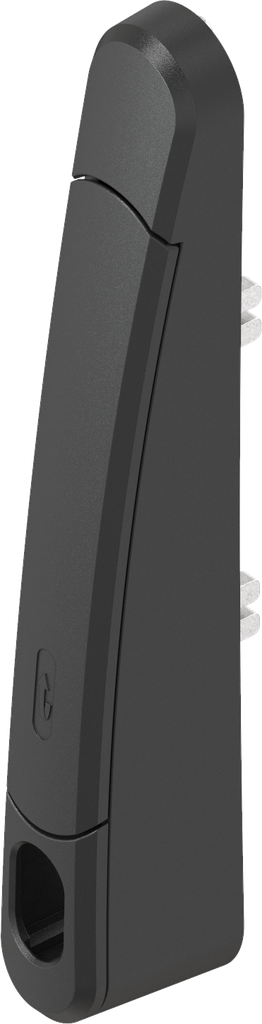

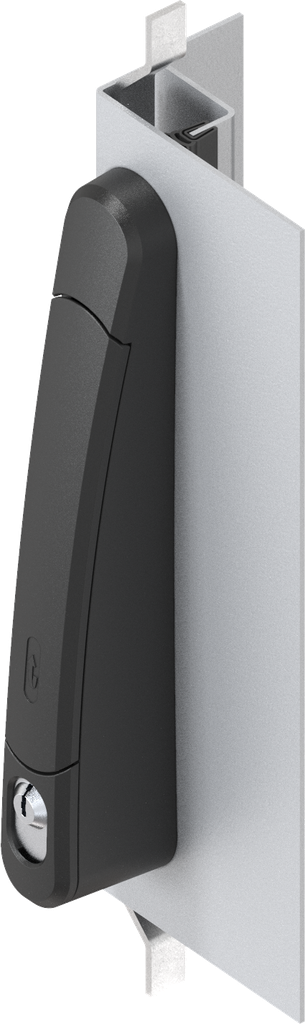

Lifthandle for small bending area, Polyamide GF black; 1390-U3

https://www.emka.com/products/1390-u3 https://www.emka.com/web/image/product.template/232376/image_1920?unique=e10027f

for locking sets with push button, KABA cylinder and ASSA cylinder


    This combination does not exist.

    Outside the sealing Left Right


    Product Benefits:

    • Bi-directional lifthandle
    • Variable positioning of the rods depending on hinge fixing
    • Small cut out due to outside handle mechanism
    • Innovative new and well-priced technology
    • Attractive design
    • Larger clearance due to narrow bending 33 x 25 mm or 37 x 25 mm
    • Patented

    Product information:

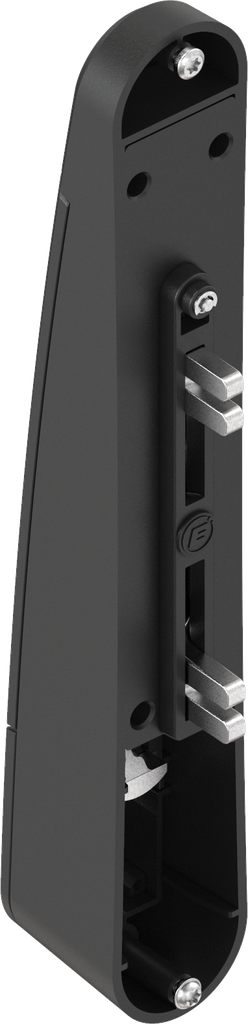

    Rod movement is bi-directional

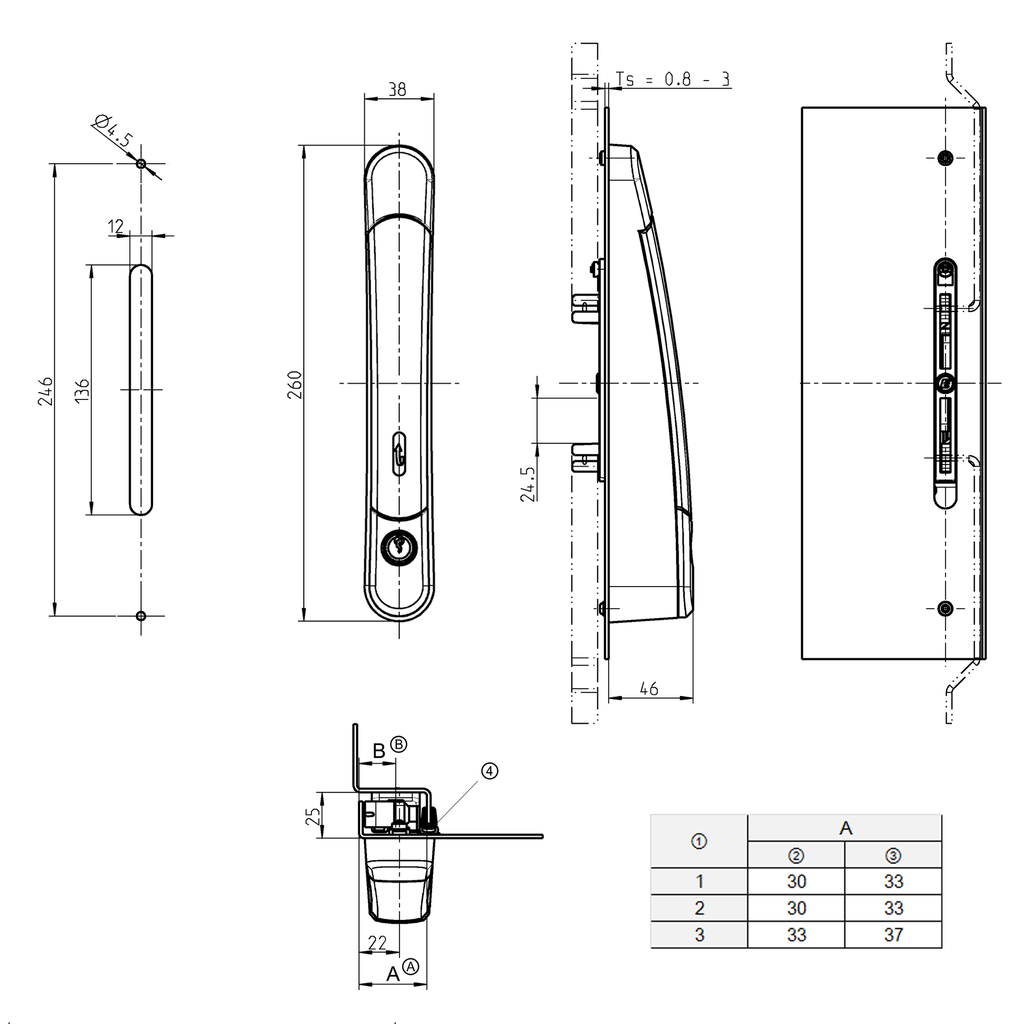

    Ⓐ = The values in the table for dimension A with seal refer to the seal 1011-10 The values for dimension A are different for other seals.
    Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used.

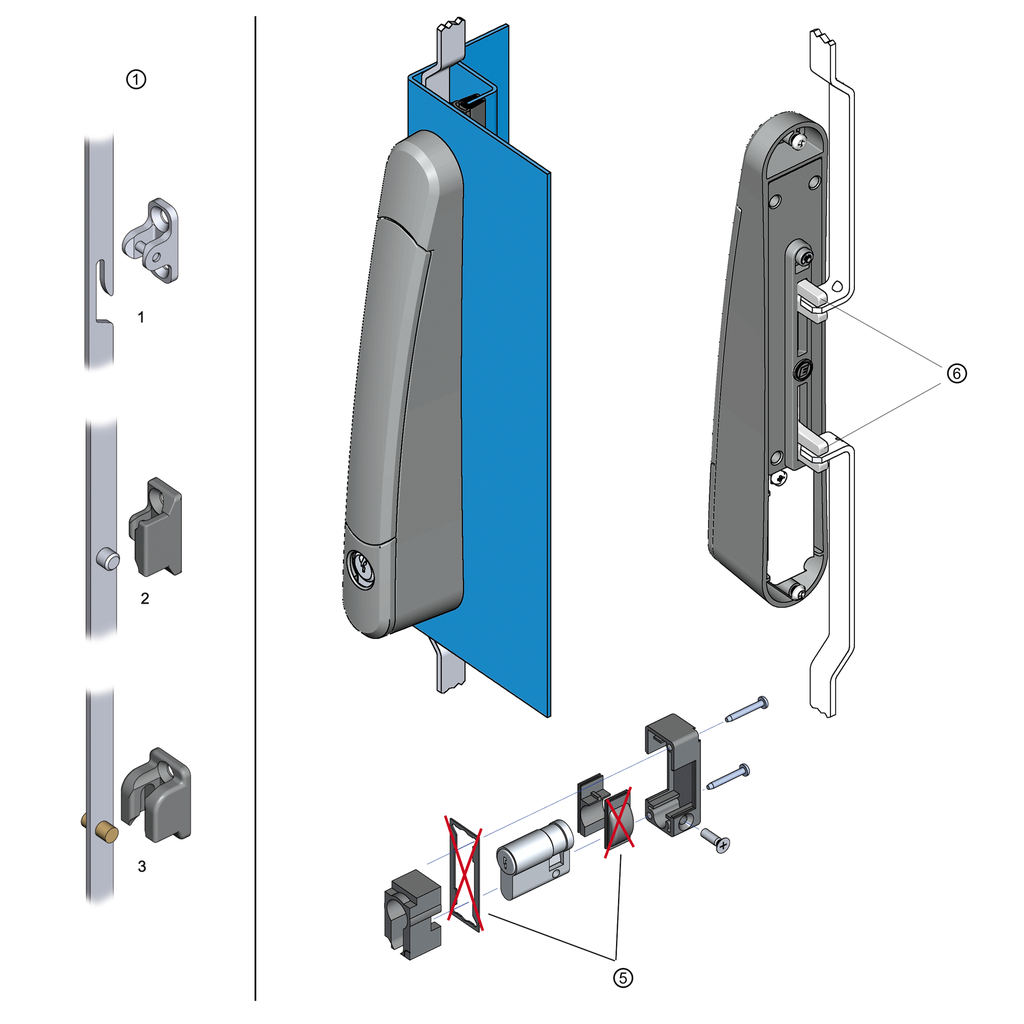

    ① = Locking type
    ② = Without seal
    ③ = With seal
    ④ = Seal example: 1011-10
    ⑤ = Seal and seal piece with "bulge" are not used for this assembly
    ⑥ = Variable rod control

    Assembly instruction:

    The lifthandle is als suitable for locking sets with profile hald cylinder, round cylinder and inserts

    Internal Reference: 1390-U3
    Product Type: Swinghandle, Lifthandle
    Program: 1390
    Catalog sheet: 3FA-150
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Outside the sealing
    For small bending area: Yes
    Handle Art(1): Lifthandle
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set modular technology: ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Push button with cap, mounted at the dish
    Swivel Handle: 46 mm
    Pan Handle Length: 260 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Integrated rod control
    Padlock Art: Padlock with shackle dimension Ø 12
