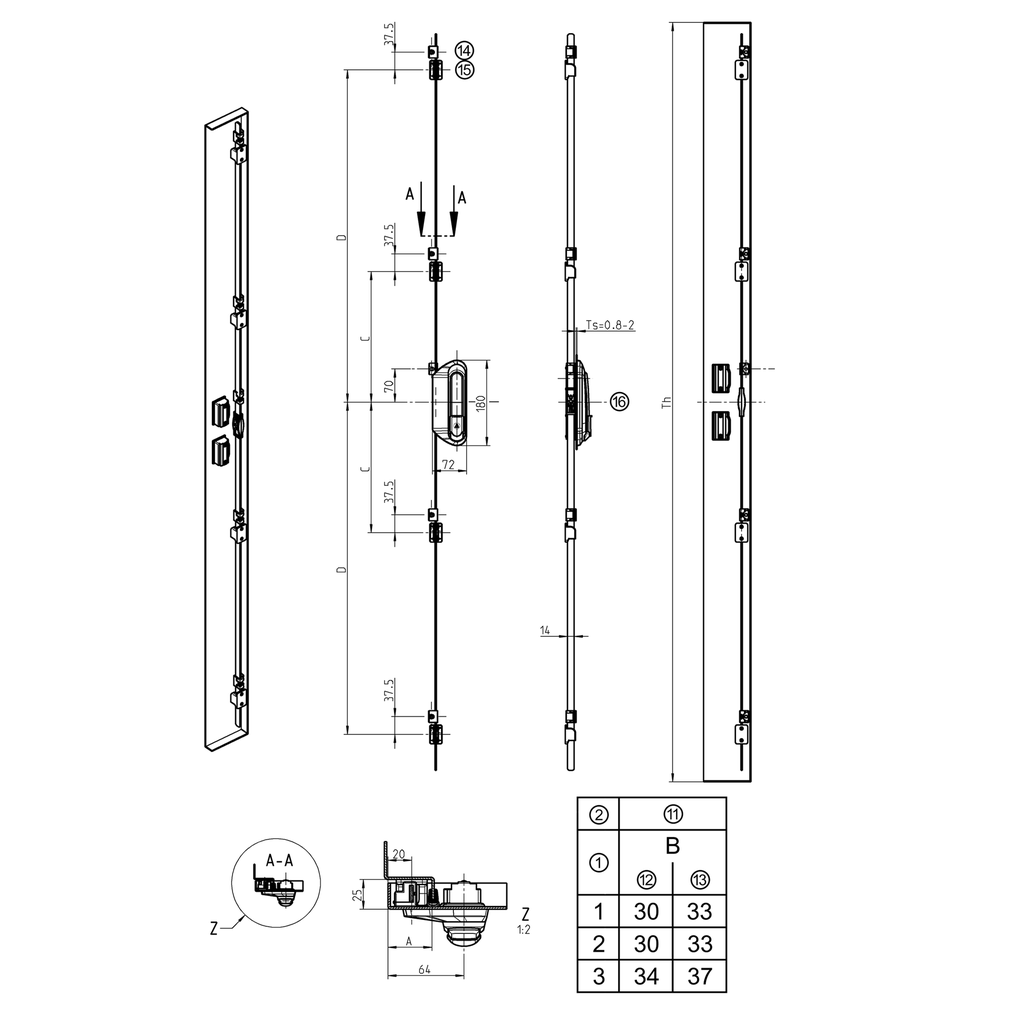

Flat rod 14 x 3 with notch for small bending area bottom, Steel zinc-plated
Flat rod 14 x 3 with notch for small bending area top, Steel zinc-plated
Flat rod 14 x 3 with notch for small bending area bottom, Steel zinc-plated; 1325-14-07JB
No stock item, please ask for availability
Internal Reference:
1325-14-07JB
Barcode:
1325-000014-00007jb
Product Type:
Rod
Material:
Steel
Program:
1325
Surface:
zinc-plated
Catalog sheet:
3ZA-600
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
2 points
Article with property rights:
Yes
C Dimension:
275
D Dimension:
850
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with notch
For Door Height:
1900-2200
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
