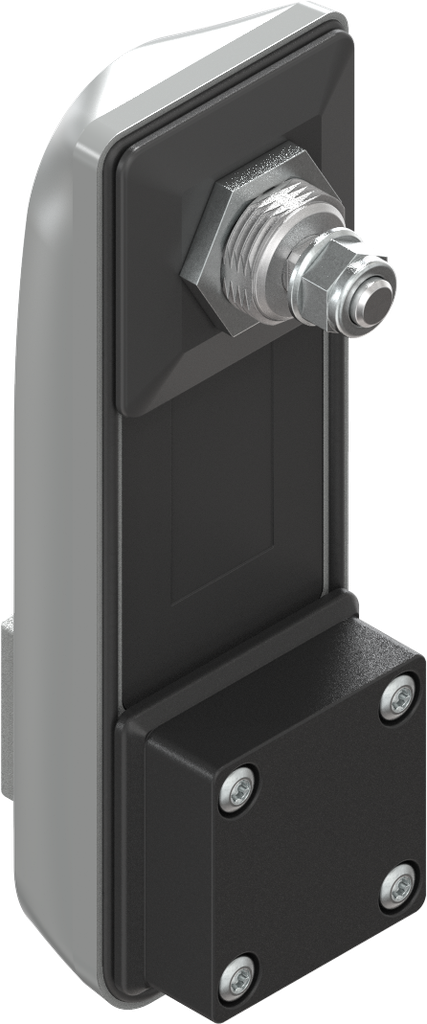

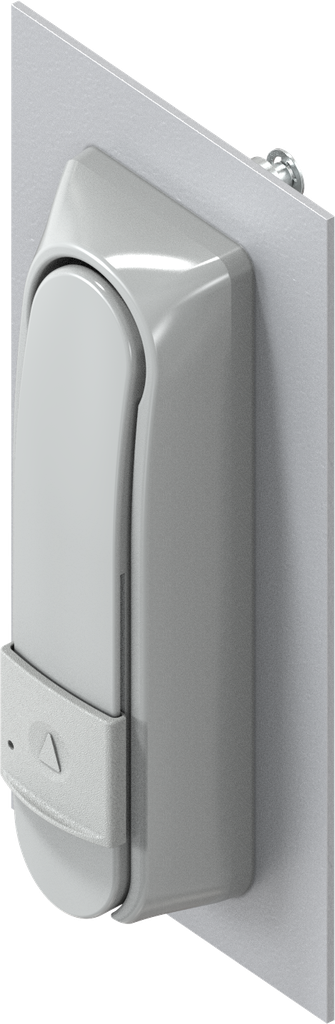

Swinghandle "short" with RC2, with electromechanical release and for KABA type 1514, Zinc die grey powder-coated RAL 7038

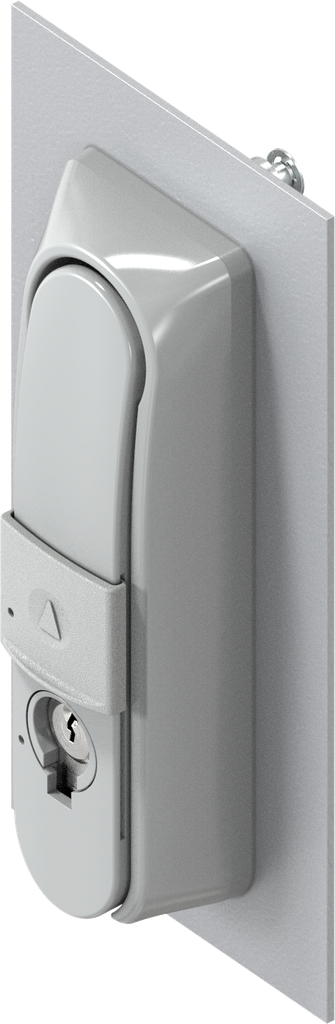

Double cylinder swinghandle "long" with RC2 for profile half cylinder 40 mm and 45 mm (A = 30 mm and 35 mm), Zinc die black powder-coated

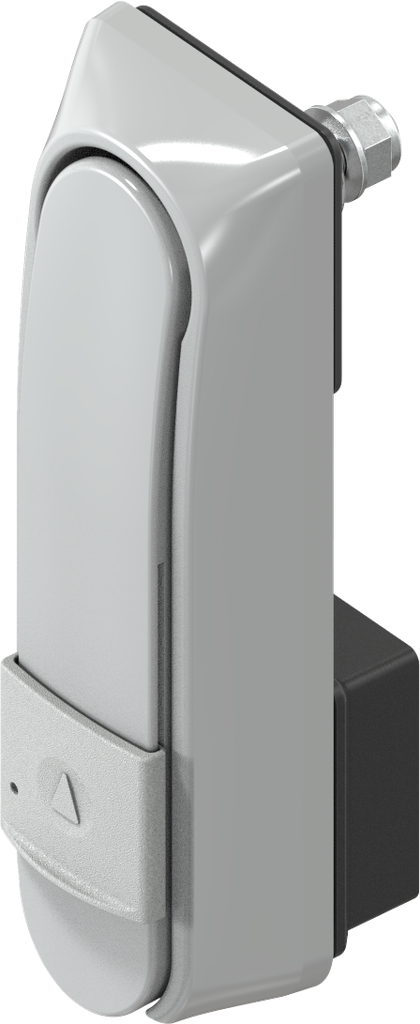

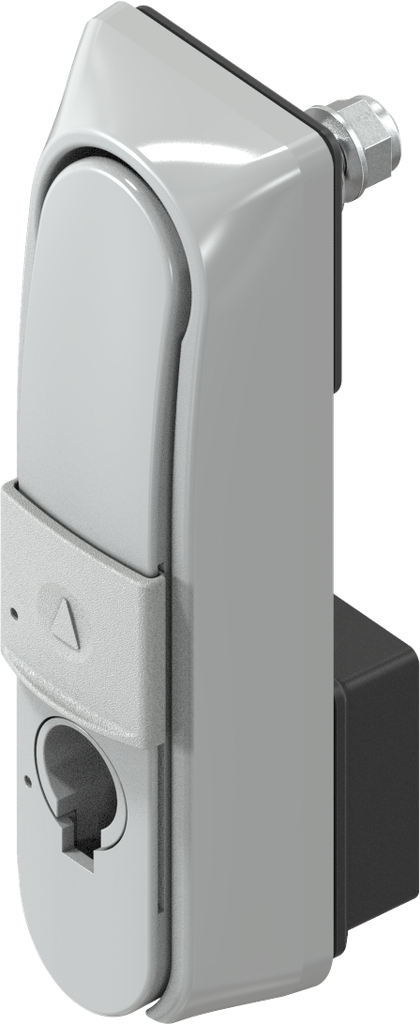

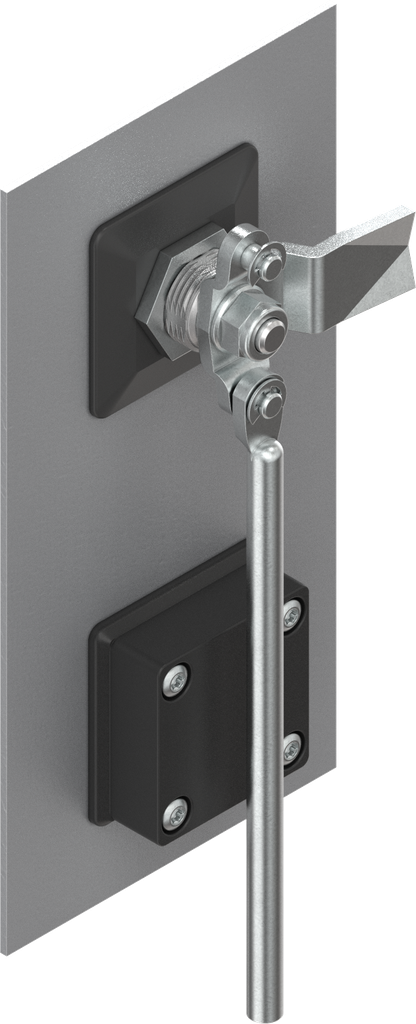

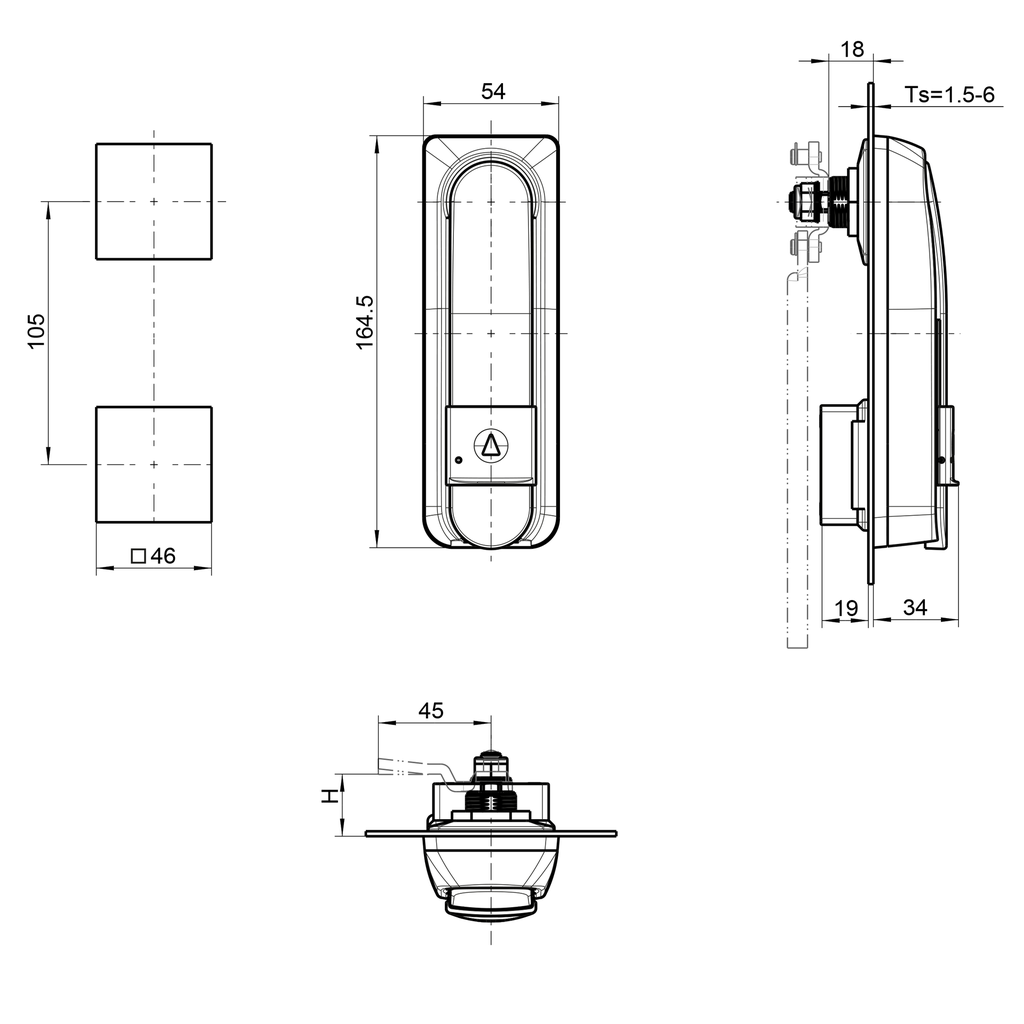

Swinghandle "short" with RC2 for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm) with additional locking cam position 30°, Zinc die grey powder-coated RAL 7038; 1317-U157-BO
for cam
Product Benefits:
- The swinghandle has successfully passed the RC2 DIN EN 1630 test
- The test protection class IK 10 according to DIN EN 50102 was successfully passed
- Integrated scratch protection prevents surface damage (handle / dish)
Product information:
RC2 DIN EN 1630, achieved by profile half-cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.
Note: Without profile half cylinder opening is only possible with key 1004-44-01AA.
Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock.
Assembly instruction:
In case of the mechanical and the electromechanical model, only the profile half-cylinder according to DIN EN 18252 and DIN EN 1303 can be used.
Internal Reference:
1317-U157-BO
Standards:
Protection class IP 65, DIN EN 1630 class RC2 / WK2 (resistivity), DIN EN 50102 - IK10 (shock resistance), DIN EN 61373 (shock and vibration testing)
Barcode:
1317-u00157-00000bo
Product Type:
Swinghandle, Lifthandle
Program:
1317
Catalog sheet:
3AB-180
Material of the module :
Zinc die
Surface of the module:
grey powder-coated RAL 7038
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
6 mm
Sealable:
Yes
Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630):
Yes
Test rating IK 10 following DIN EN 50102:
Yes
Locking set:
Profile half cylinder A = 30,Profile half cylinder A = 35
Key Removable:
Key can be withdrawn in any handle position
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
34 mm
Pan Handle Length:
165 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right

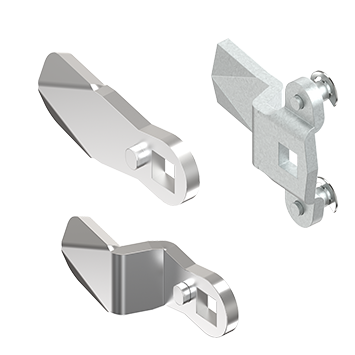

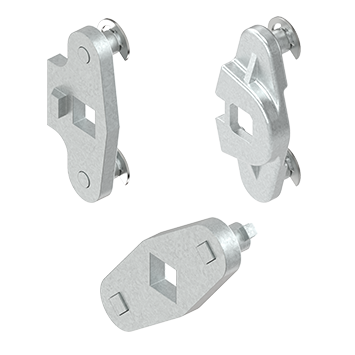

Locking components:
Cam
No Specifications
