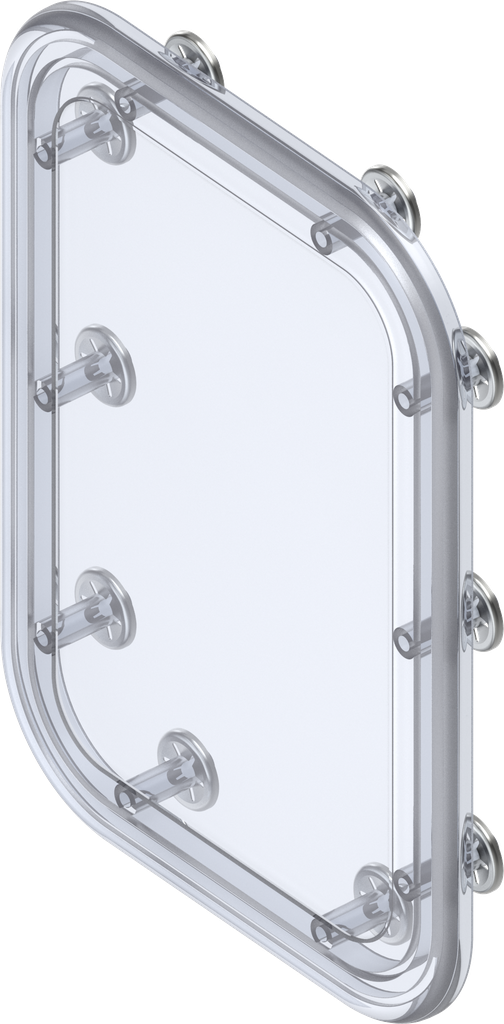

Viewing window, foamed, with frame, Polycarbonate crystal clear
Viewing window, foamed, with frame, Polycarbonate crystal clear
Viewing window, foamed, without frame, Polycarbonate crystal clear; 1250-U6
No stock item, please ask for availability
Product information:

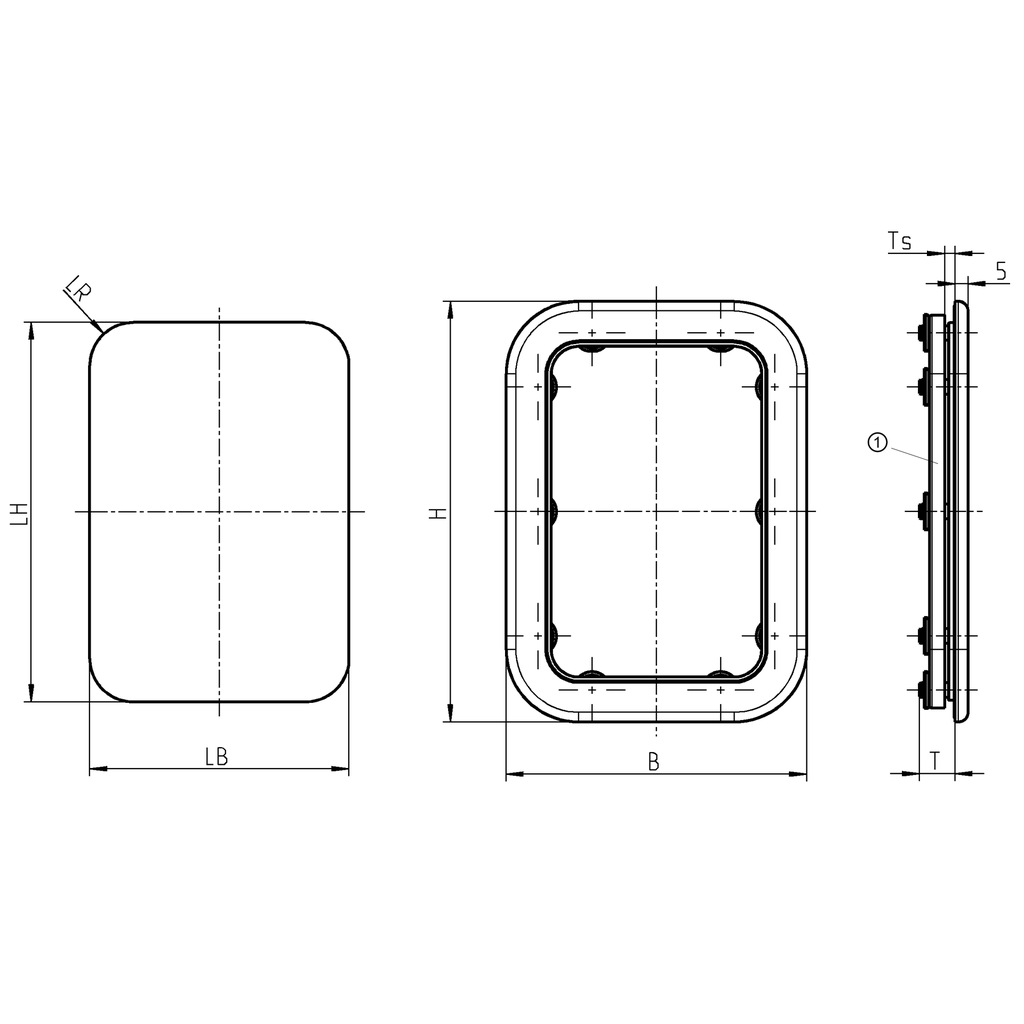

1 = Without frame
H = 175 mm
B = 125 mm
LH = 156.5 mm
LB = 107 mm
LR = 20 mm
T = 15 mm
Internal Reference:
1250-U6
Standards:
Protection class IP 65
Barcode:
1250-U00006-0000000
Product Type:
Viewing windows
Program:
1250
Catalog sheet:
8D-540
Material of the module :
Polycarbonate
Surface of the module:
crystal clear
Viewing Window:
with shaft clamping rings without frame
Viewing Window 1250:
B = 175; H = 125
Window 1250; door thickness up to:
12 mm
Window 1250; door thickness of:
3 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
