Catch, Stainless steel AISI 316 P.2931
Catch, Stainless steel AISI 316 P.2931
EMKA Proflex aluminium window, Aluminium anodized
EMKA Proflex aluminium window, Aluminium anodized

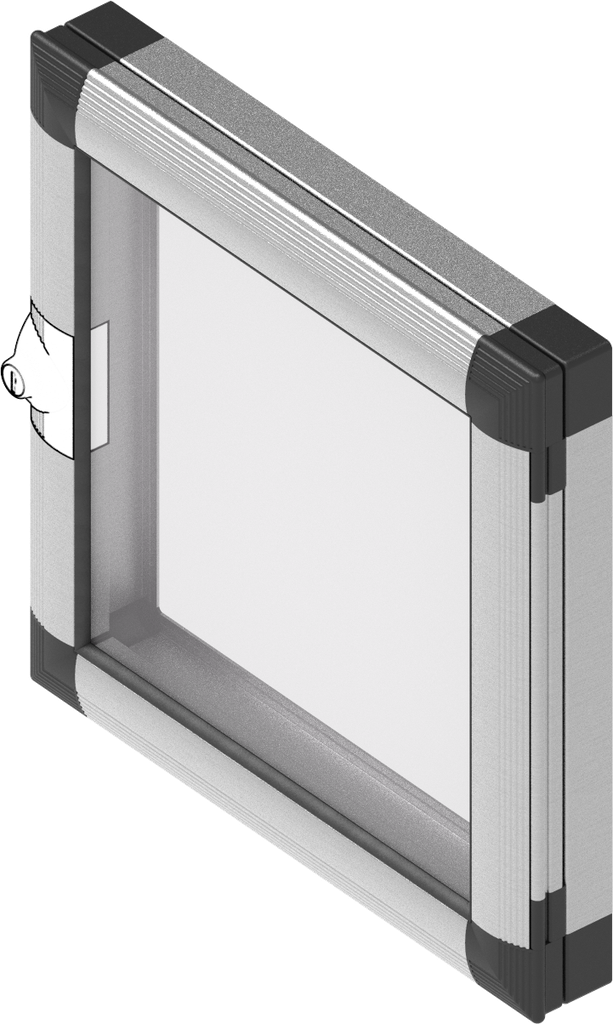

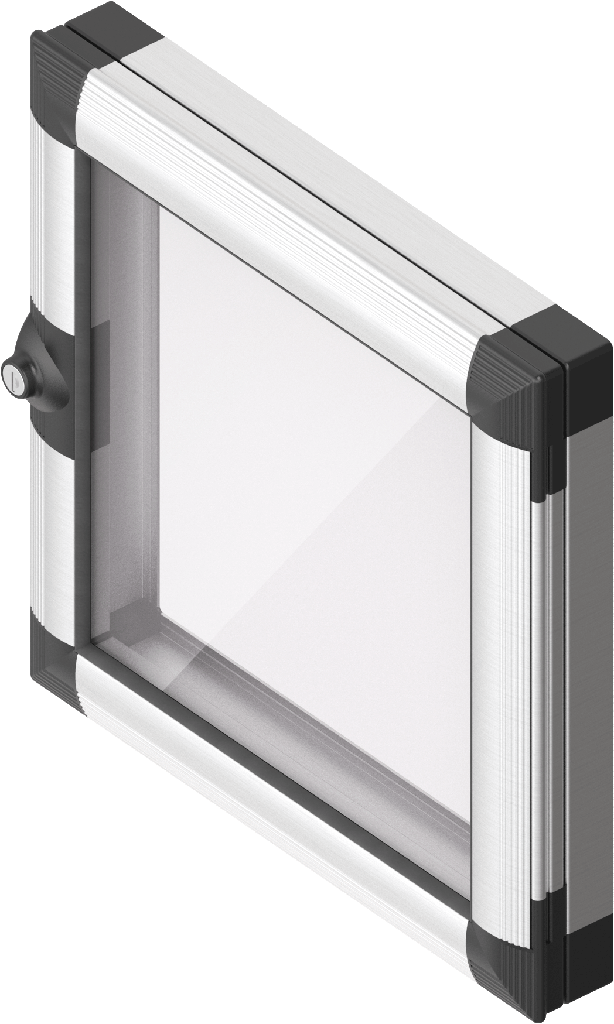

EMKA Proflex aluminium window, Aluminium anodized; 1210-U250-500

https://www.emka.com/products/1210-u250-500-emka-proflex-aluminium-window-aluminium-anodized-228967 https://www.emka.com/web/image/product.template/228967/image_1920?unique=56b566e

    This combination does not exist.

    Product information:

    Attention:
    Please specify locking option separately!
    Internal Reference: 1210-U250-500
    Barcode: 1210-U00250-0000500
    Product Type: Aluminium windows
    Material: Aluminium
    Program: 1210
    Material of the module : Aluminium
    Surface of the module: anodized
    Essay window art: Aluminium window with 30 mm frame
    Dimension B max.: 500 mm
    Dimension B min: 401 mm
    Fixing type: Nut fixing / riveting from the front,Nut fixing from the rear
    Dimension H max.: 250 mm
    Dimension H min.: 201 mm
    IP 65 on request: Yes
    Opening Angle: 180°
    Shutter Position: At the front in the frame
    No Specifications
    View All Products
    Aluminium window lock
    Here you can find the product data sheets and CAD files of this product
