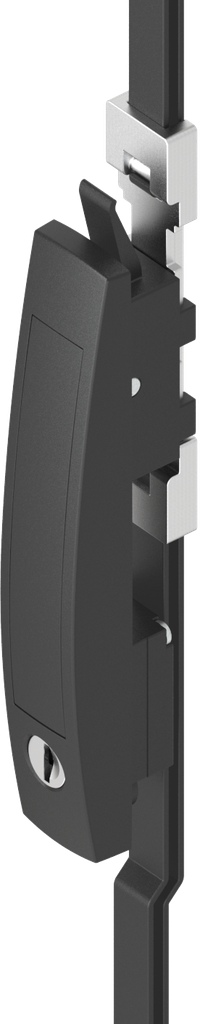

Lifthandle locking system complete with 4 locking points, keyed EK 333, Polyamide GF black
Lifthandle locking system complete with 4 locking points, keyed EK 333, Polyamide GF black

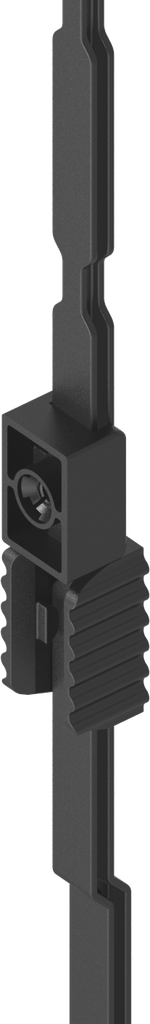

Cam, Zinc die

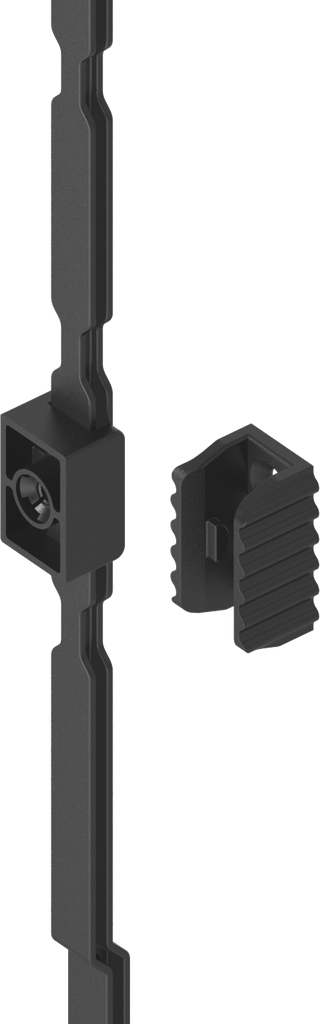

Cam, Zinc die

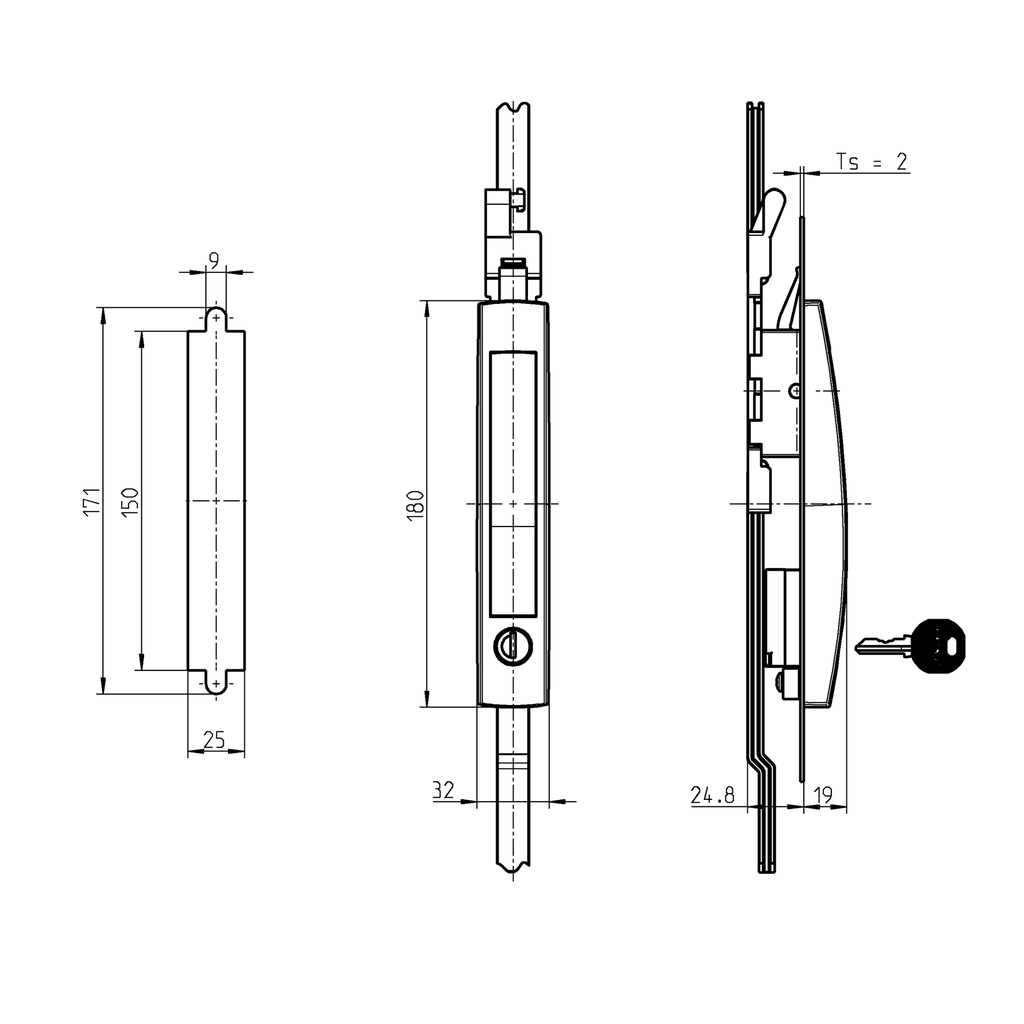

Lifthandle locking system complete with 2 locking points, keyed EK 333, Polyamide GF black; 1190-U7

https://www.emka.com/products/1190-u7 https://www.emka.com/web/image/product.template/65117/image_1920?unique=e0d59c1


    This combination does not exist.

    Outside the sealing Left Right


    Function:

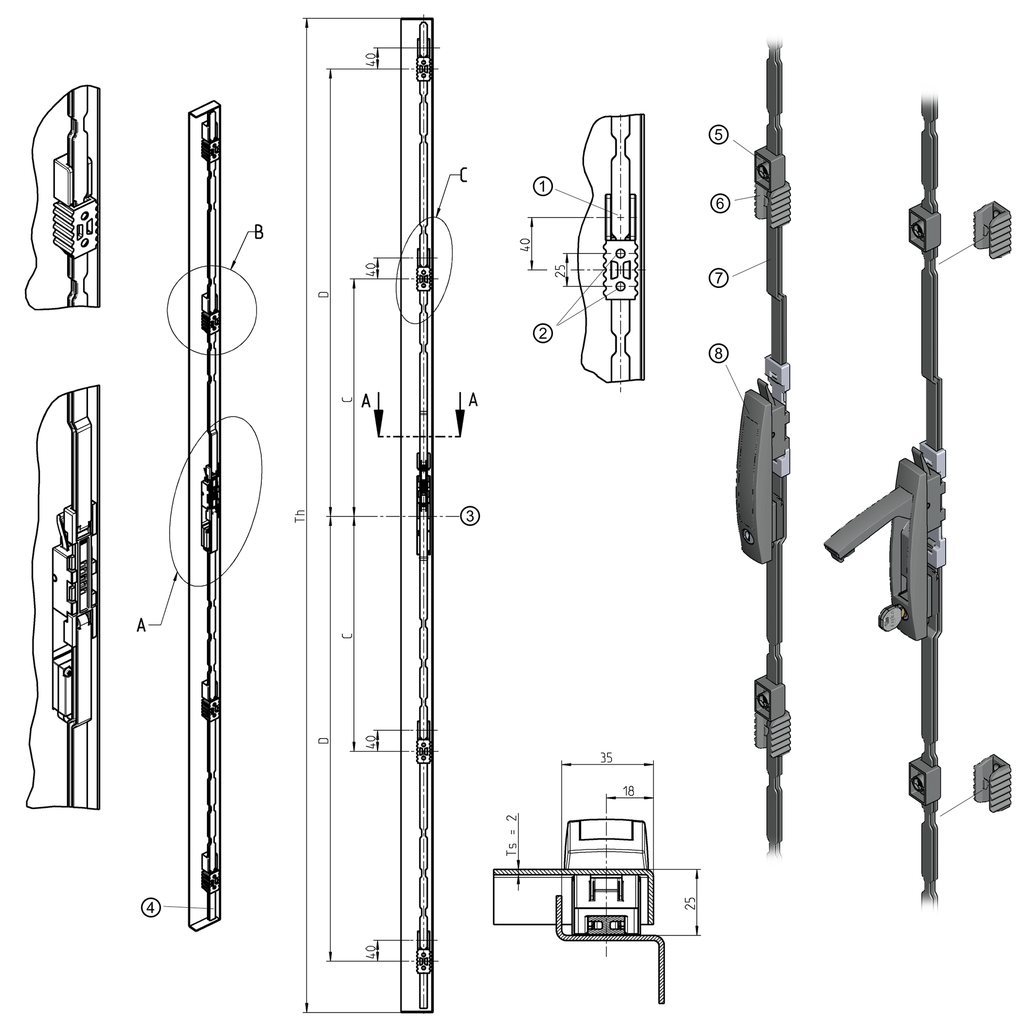

    • Door height Th = 800 mm - 1200 mm:
      Dimension C: not applicable; Dimension D: 300 mm
    • Door height Th = 1200 mm - 1600 mm:
      Dimension C: not applicable; Dimension D: 450 mm

    Assembly instruction:

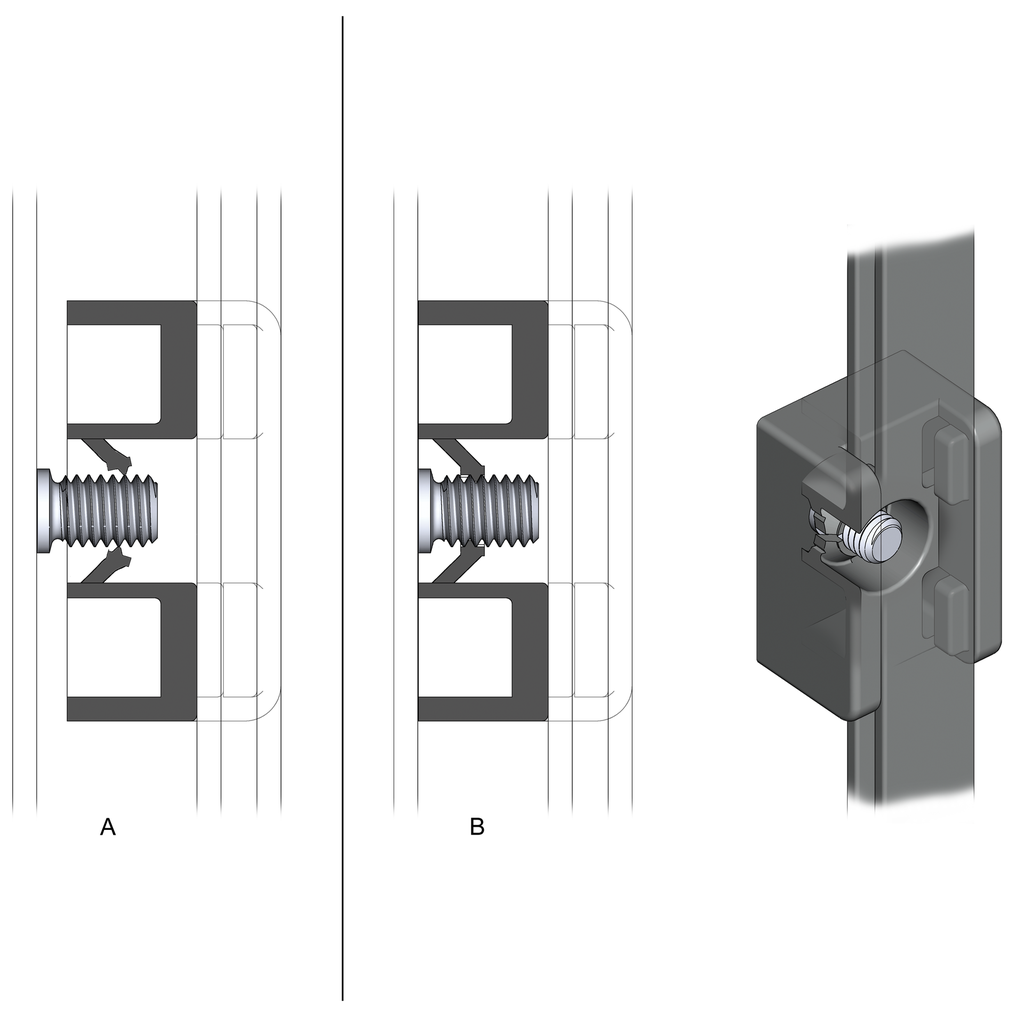

    A = Fitting the rod guide onto the weld stud
    B =Rod guide completely assembled

    Pull-out force: Fmin. = 350 N
    Application force: typical value F ≃ 135 N
    These values refer to a thread with a raw or zinc-plated surface which is free from grease.

    Akeneo Note:

    Number of rod guides and catches 2; Stroke 18 mm

    Internal Reference: 1190-U7
    Product Type: Swinghandle, Lifthandle
    Program: 1190
    Catalog sheet: 3F-420
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Number of Possible Locking Points: 2 points
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Outside the sealing
    Handle Art(1): Lifthandle
    With integrated rod control / 3-point cam: Yes
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Swivel Handle: 19 mm
    Pan Handle Length: 180 mm
    Door Version : Left,Right
    Thickness: 2 mm
    Locking components: Integrated rod control
