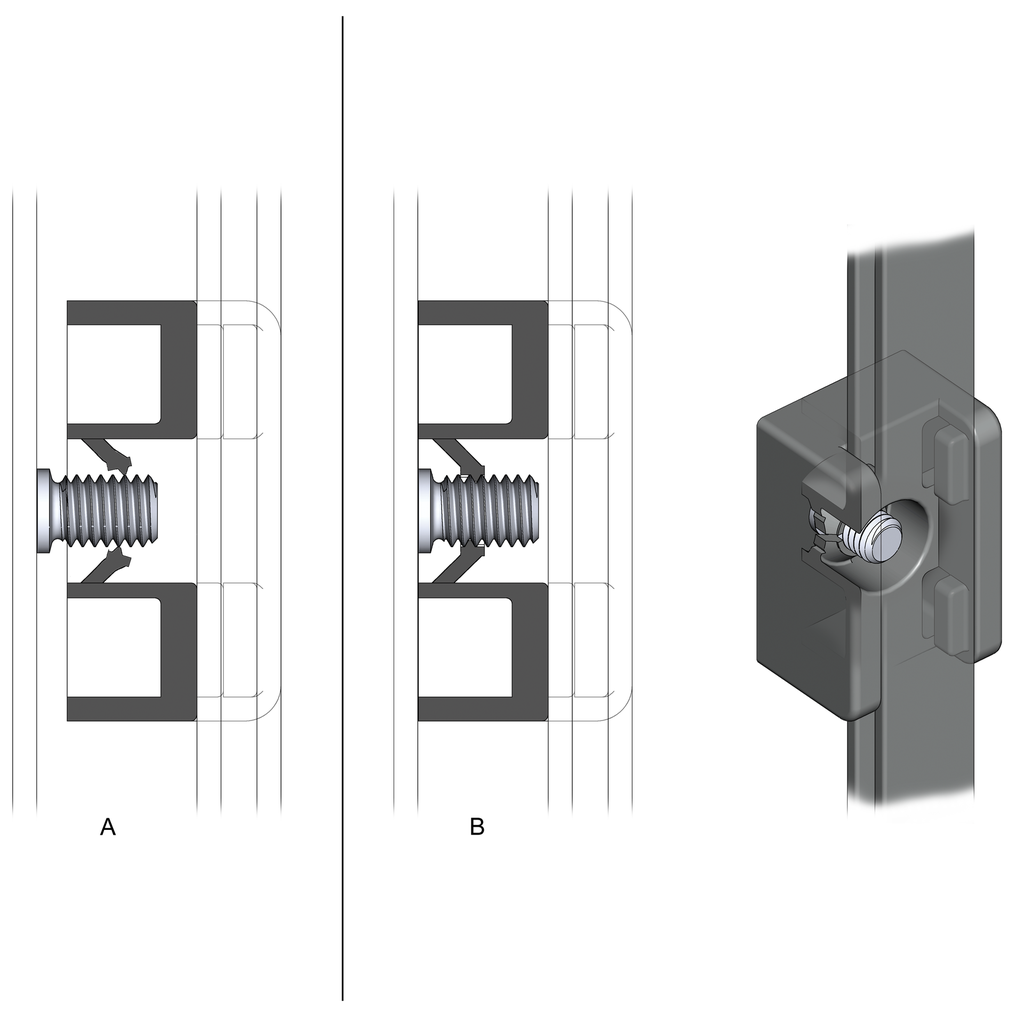

Fixing material adapter and screw for cam for escutcheon;
Lifthandle locking system complete with 2 locking points, keyed different, Polyamide GF black

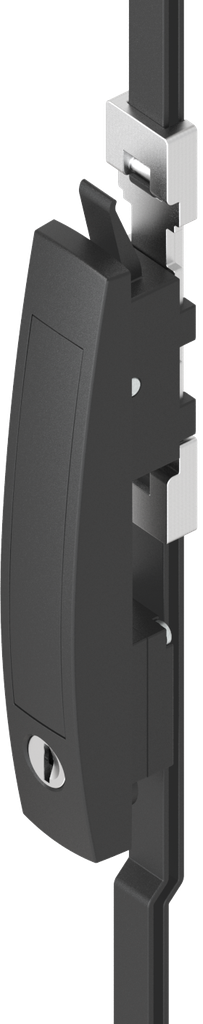

Lifthandle locking system complete with 4 locking points, keyed different, Polyamide GF black; 1190-U6-V
No stock item, please ask for availability

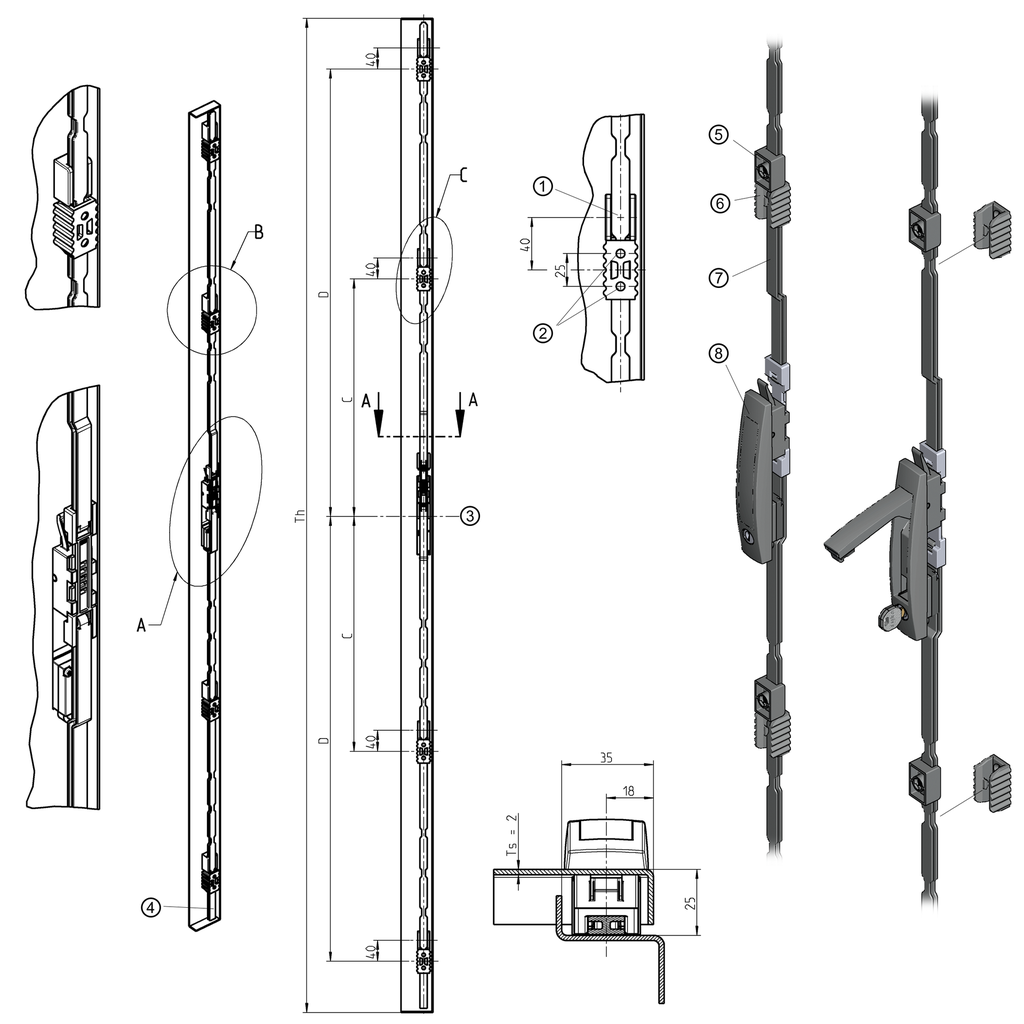

Function:
- Door height Th = 800 mm - 1200 mm:
Dimension C: not applicable; Dimension D: 300 mm - Door height Th = 1200 mm - 1600 mm:
Dimension C: not applicable; Dimension D: 450 mm - Door height Th = 1600 mm - 1900 mm:
Dimension C: 300 mm; Dimension D: 700 mm - Door height Th = 1900 mm - 2200 mm:
Dimension C: 300 mm; Dimension D: 850 mm
Akeneo Note:

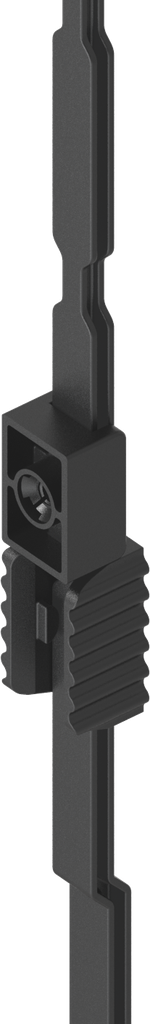

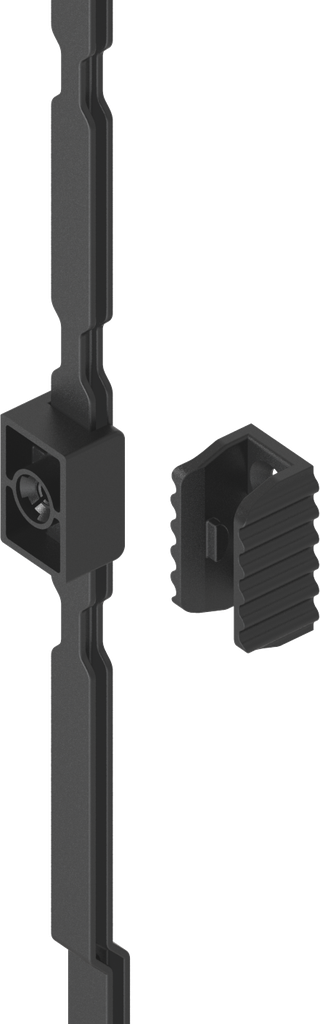

Number of rod guides and catches 4; Stroke 18 mm
Internal Reference:
1190-U6-V
Barcode:
1190-u00006-000000v
Product Type:
Swinghandle, Lifthandle
Program:
1190
Catalog sheet:
3F-420
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
4 point
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Outside the sealing
Handle Art(1):
Lifthandle
With integrated rod control / 3-point cam:
Yes
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Swivel Handle:
19 mm

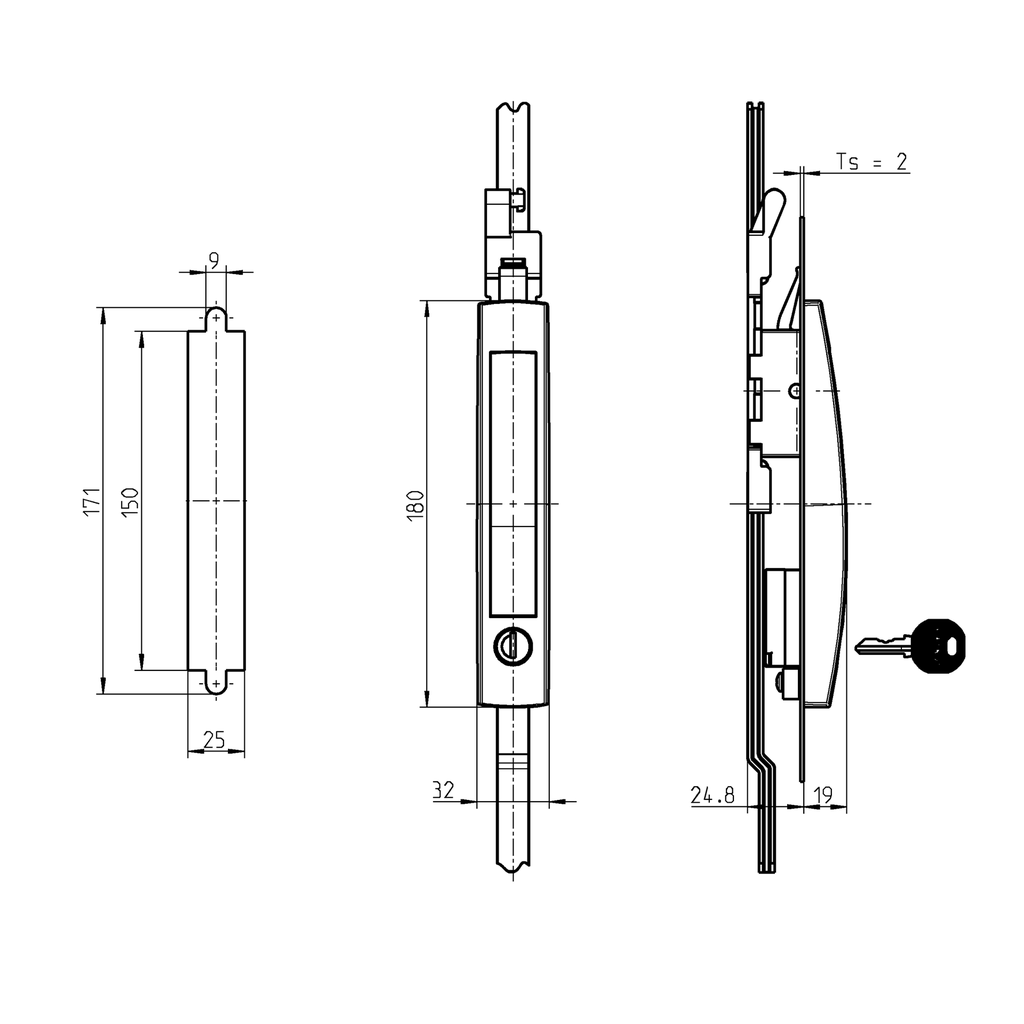

Pan Handle Length:
180 mm
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Integrated rod control
