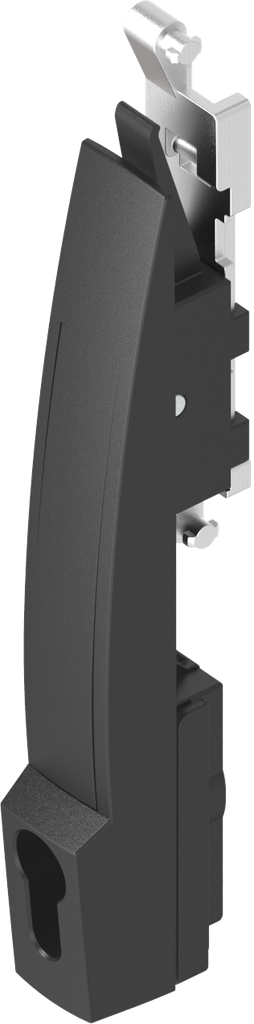

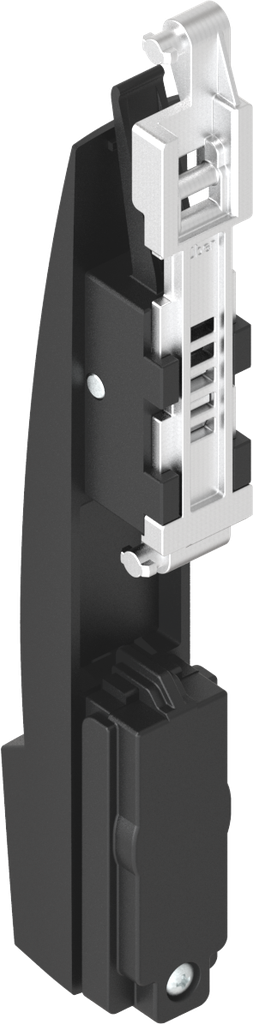

Lifthandle for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1190-U306

https://www.emka.com/products/1190-u306 https://www.emka.com/web/image/product.template/227569/image_1920?unique=f86255a


    This combination does not exist.

    Outside the sealing Left Right


    Product information:

    Profile half cylinder 40 mm (A = 30 mm), set locking cam to 11 o'clock

    Rod movement is unidirectional

    Stroke 18 mm

    Internal Reference: 1190-U306
    Product Type: Swinghandle, Lifthandle
    Program: 1190
    Catalog sheet: 3F-330
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Mounting Positions : Outside the sealing
    Handle Art(1): Lifthandle
    With integrated rod control / 3-point cam: Yes
    Locking set: Profile half cylinder A = 30
    Swivel Handle: 27 mm
    Pan Handle Length: 214 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Thickness: 2 mm
    Locking components: Integrated rod control
    No Specifications
    View All Products

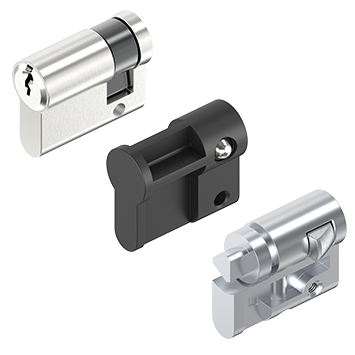

    Profile half cylinder
