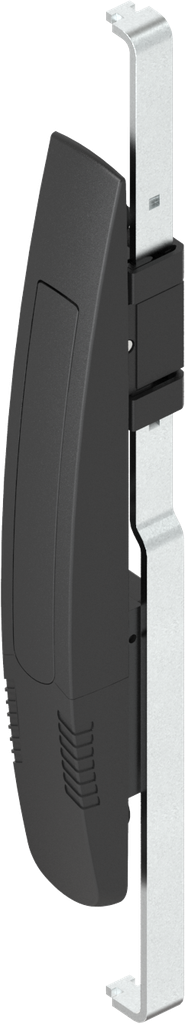

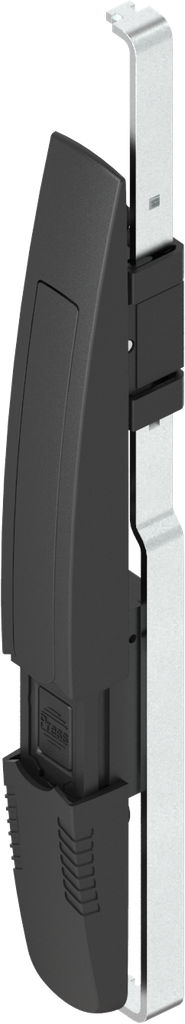

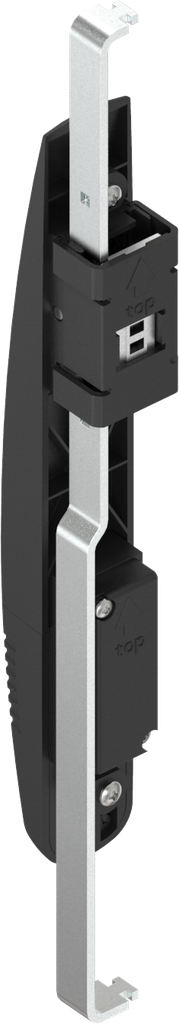

Lifthandle with push button, Polyamide GF black; 1190-U1

https://www.emka.com/products/1190-u1 https://www.emka.com/web/image/product.template/65114/image_1920?unique=118caf2


    This combination does not exist.

    Outside the sealing Protection class IP 40 Left Right


    Product information:

    Rod movement is unidirectional
    Stroke 18 mm

    For door return of 25 mm locking sets with round cylinder or insert can be used

    Internal Reference: 1190-U1
    Product Type: Swinghandle, Lifthandle
    Program: 1190
    Catalog sheet: 3F-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Outside the sealing
    Handle Art(1): Lifthandle
    Locking set: Push button
    Locking set modular technology: Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder without cap, mounted at the dish,Insert without cap, mounted at the dish
    locking set cover: Yes
    Swivel Handle: 22 mm
    Pan Handle Length: 265 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Thickness: 2 mm
    Locking components: Integrated rod control
