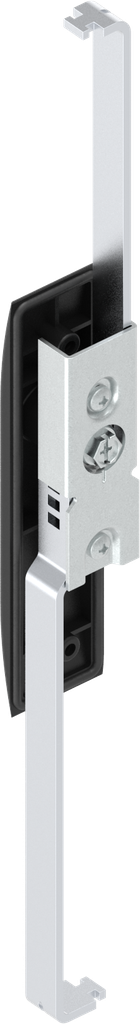

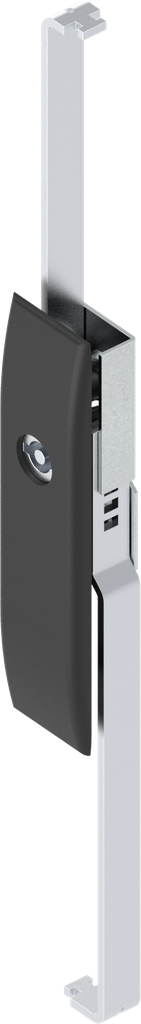

Escutcheon with rods with insert double bit 5, Polyamide GF black; 1160-U62

https://www.emka.com/products/1160-u62-escutcheon-with-rods-with-insert-double-bit-5-polyamide-gf-black-226940 https://www.emka.com/web/image/product.template/226940/image_1920?unique=74323a2

    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 65
    No stock item, please ask for availability

    Function:

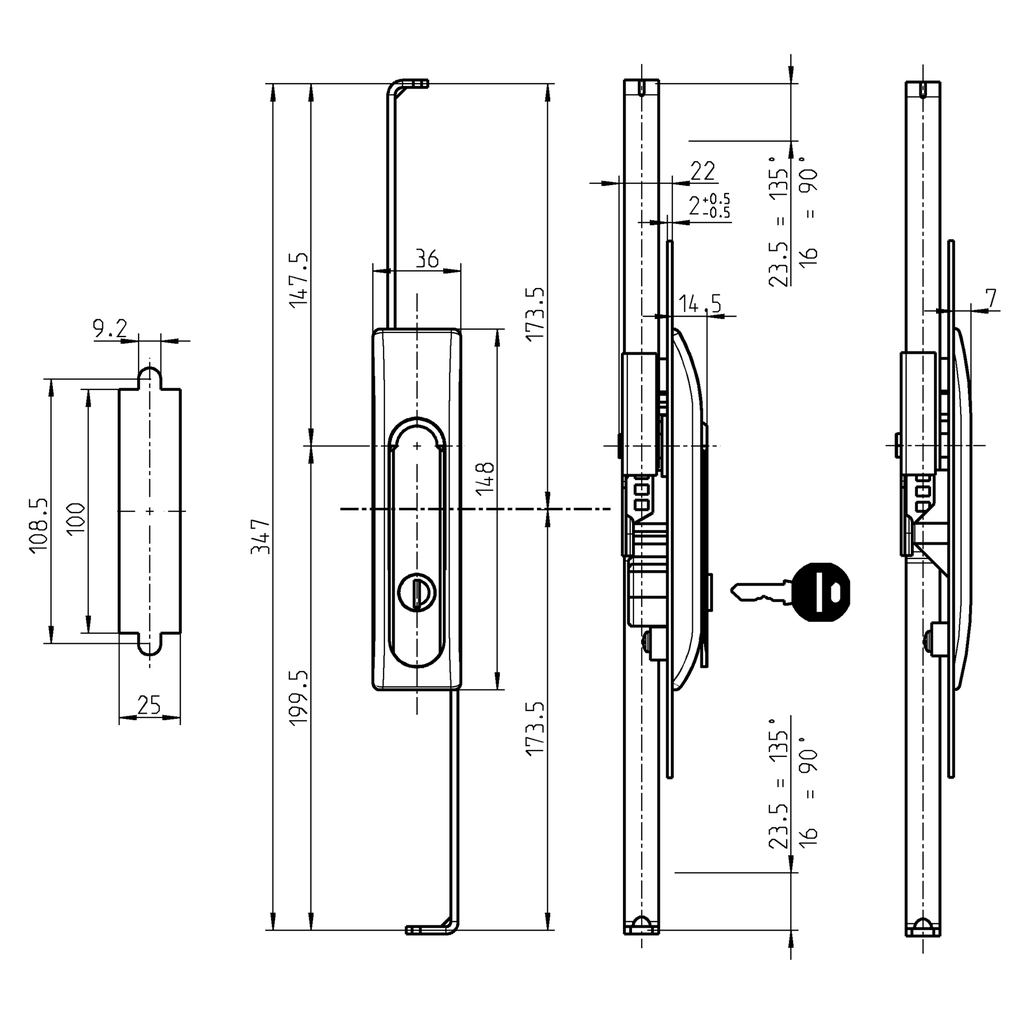

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1160-U62
    Standards: False
    Barcode: 1160-U00062-0000000
    Product Type:
    Program: 1160
    Catalog sheet: 3D-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: False
    Type of actuation: Double bit 5
    Mounting Positions : False
    Foamed gasket: Yes
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Locking means key tag: Insert double bit
    Locking components: False
    No Specifications
