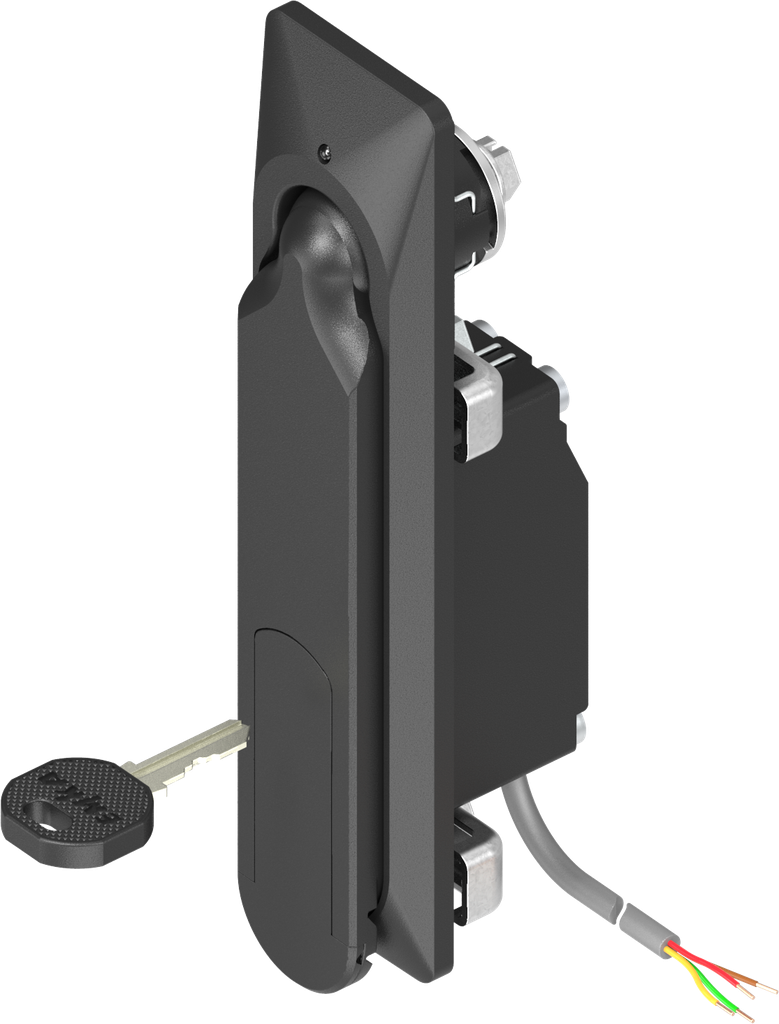

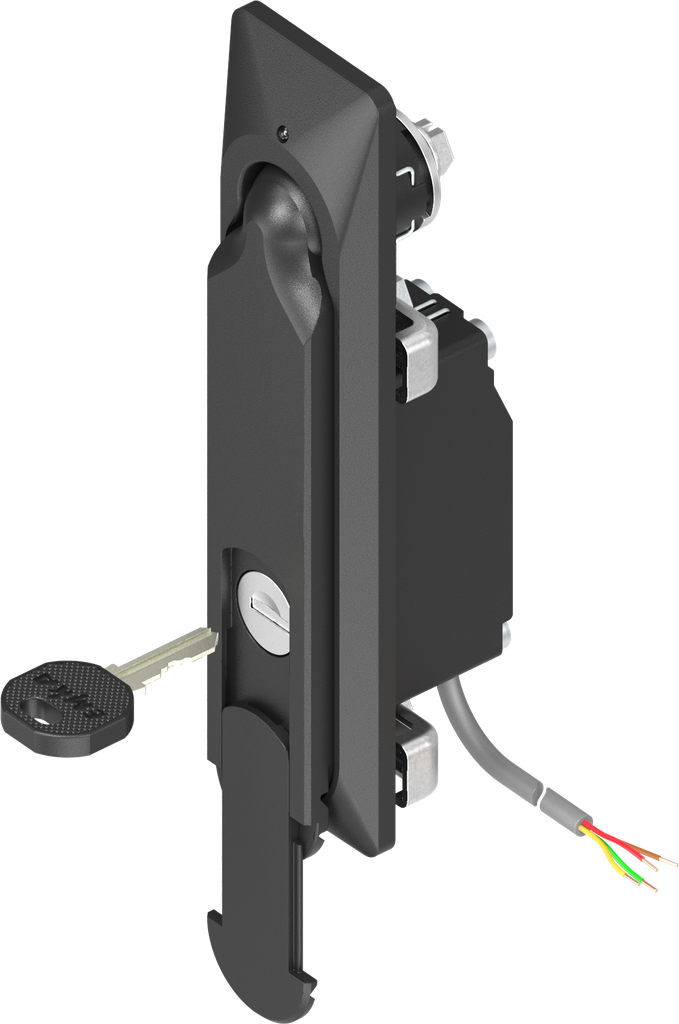

Swinghandle with electromechanical release and emergency opening, keyed EK 333, Zinc die black powder-coated; 1154-U6-03

https://www.emka.com/products/1154-u6-03 https://www.emka.com/web/image/product.template/64998/image_1920?unique=7db622d


    This combination does not exist.

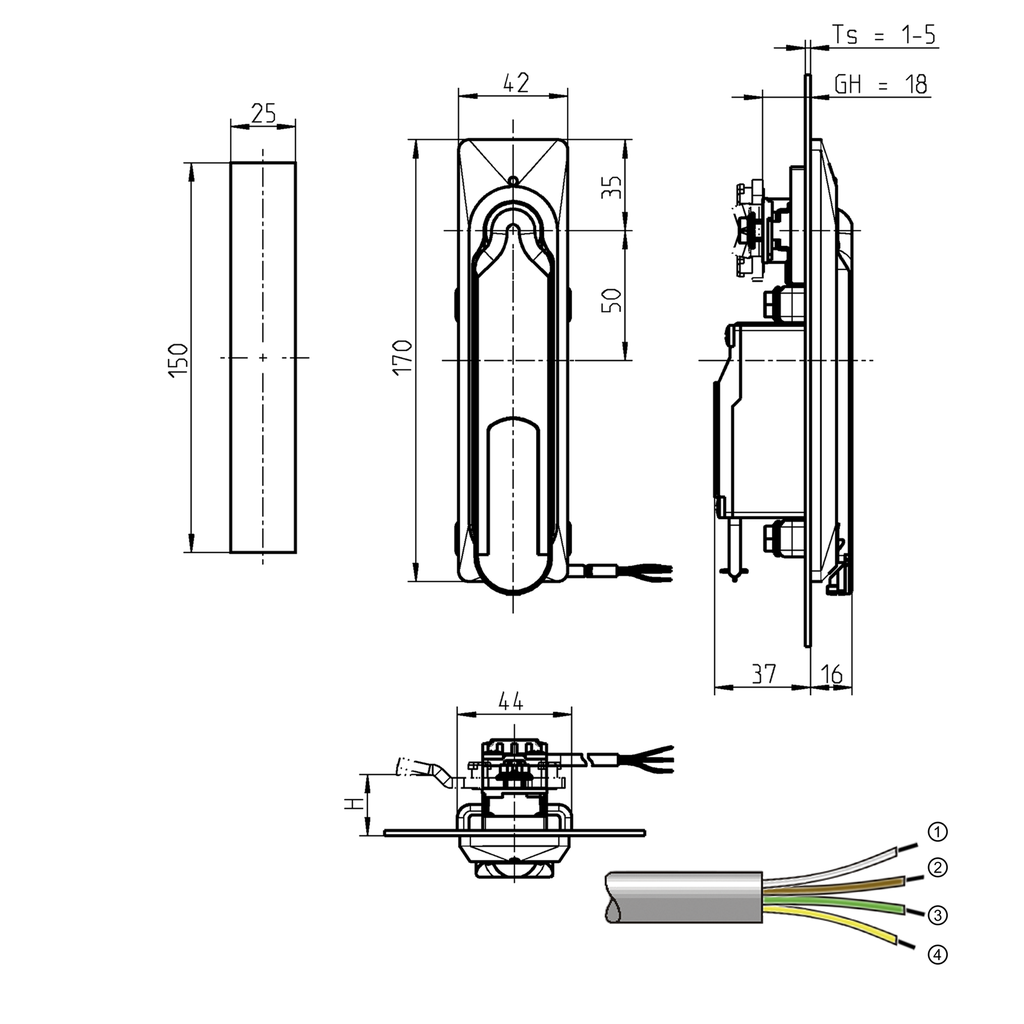

    Inside the sealing Foamed seal Protection class IP 65 Left Right


    Product information:

    ① = white (+)
    ② = brown (-)
    ③ = green contact
    ④ = yellow contact

    Two countersunk screws M3 for the cylinder cover are included in the delivery. Cross recess and hexagon female SW 2 with pin

    Function:

    This handle is suitable for locking outdoor cabinets.
    By applying a 12 V, 24 V or 48 V DC signal, the handle is released. After pushing the handle briefly into the dish, it can be opened. The integrated Reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The provided key is used to open the handle in case of power failure. To open the cylinder cover the screw M3 has to be removed. Then it is possible to unlock by means of round / pin cylinder.

    On release of the handle, the LED is illuminated.

    The maximum power-on time is 1 minute.

    Internal Reference: 1154-U6-03
    Product Type: Swinghandle, Lifthandle
    Program: 1154
    Catalog sheet: 3C-240
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    Electromechanical Unlocking : 12 V
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art(1): Swinghandle
    Emergency opening: Yes
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 5 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    locking set cover: Yes
    Swivel Handle: 16 mm
    Pan Handle Length: 170 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam
    No Specifications
    View All Products
    Cam

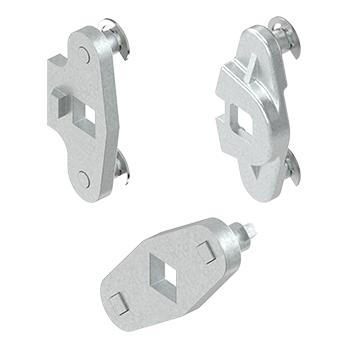

    Rod control

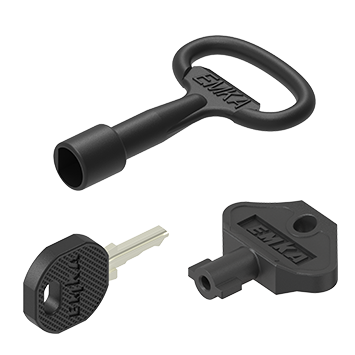

    Keys
