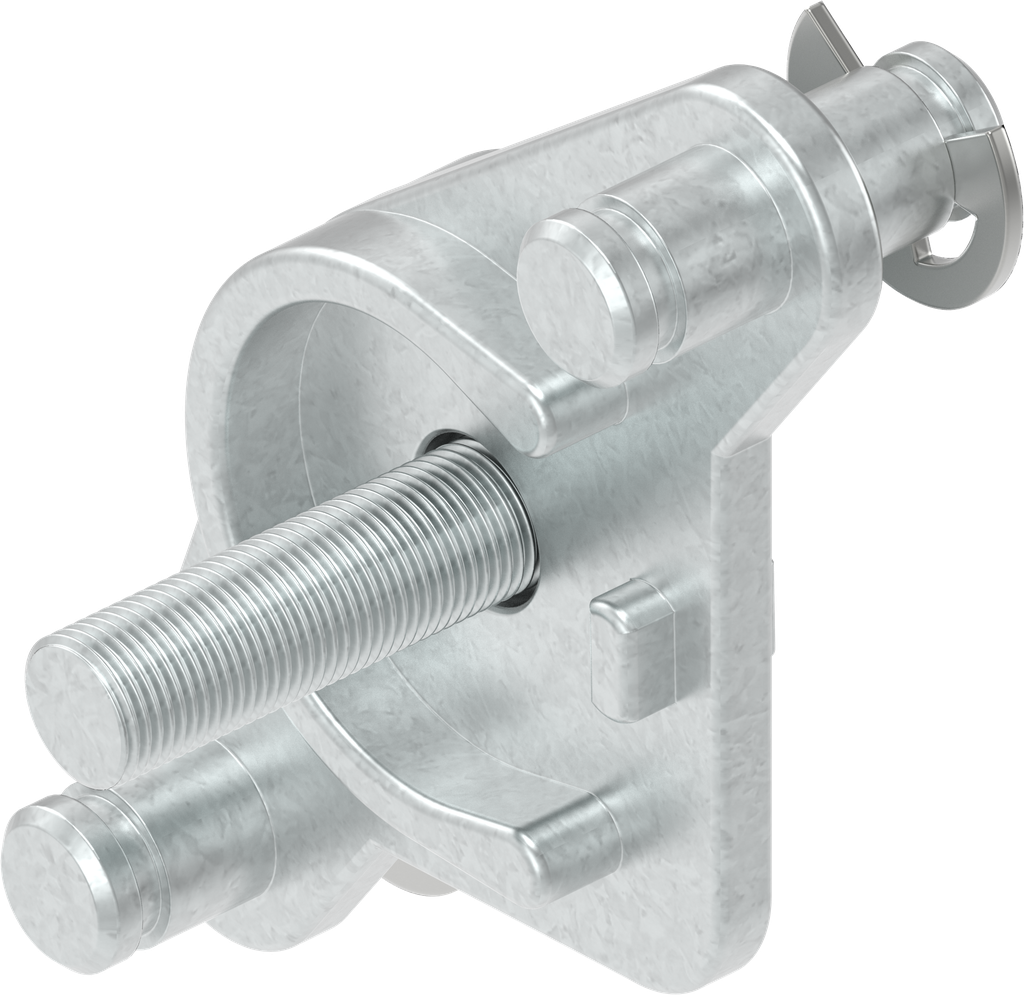

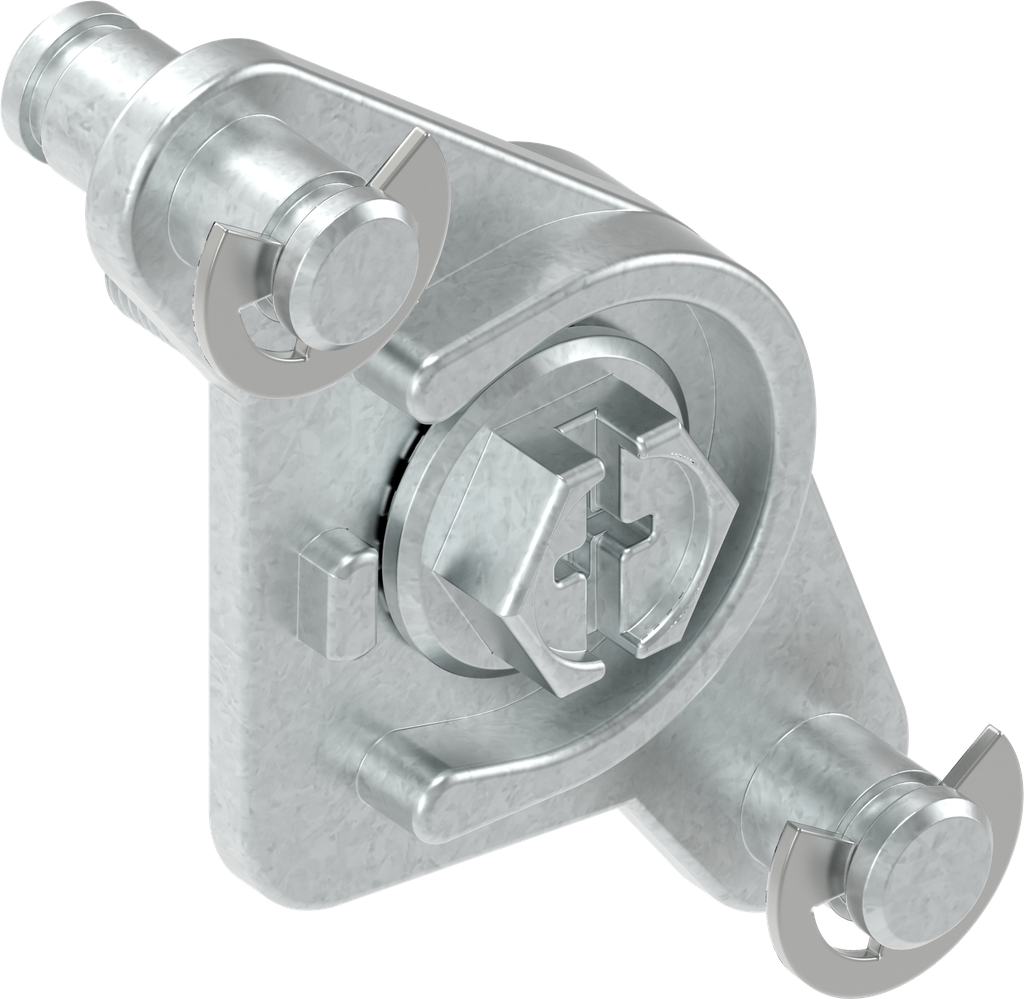

Rod control for swinghandle 1150, Zinc die zinc-plated; 1150-U63-01

https://www.emka.com/products/1150-u63-01-rod-control-for-swinghandle-1150-zinc-die-zinc-plated-226277 https://www.emka.com/web/image/product.template/226277/image_1920?unique=8c458df

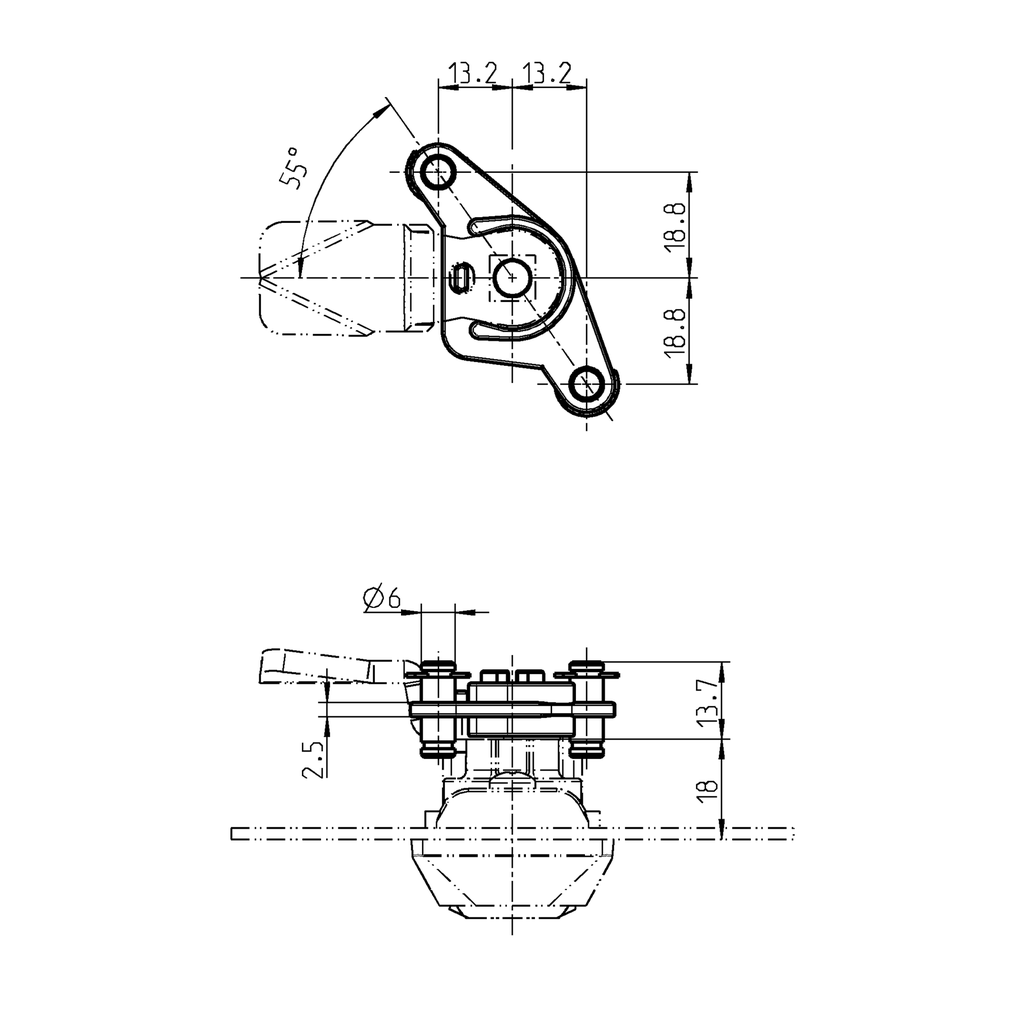

Stroke = 32 mm

    This combination does not exist.

    Inside the sealing
    No stock item, please ask for availability

    Product information:

    Attention:
    Only cams with catch of steel or stainless steel can be used.


    Note:
    When using the rod control for the cam, the screw-in depth of the screw is reduced by 2.5 mm.
    Internal Reference: 1150-U63-01
    Barcode: 1150-u00063-0000001
    Product Type: Rod control
    Program: 1150
    Catalog sheet: 3YC-190
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 32 mm
    No Specifications
    View All Products
    Cam
    Rod

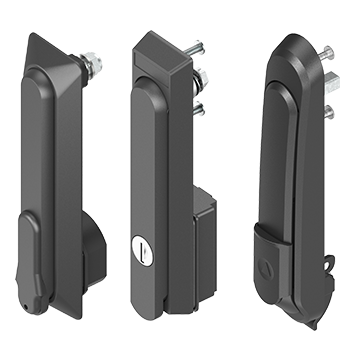

    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
