Folding T-handle with compression function for clip-in cylinder system 3, Polyamide GF black and zinc die black powder-coated
Spacer frame unfoamed for Ts = 40 mm, ABS black

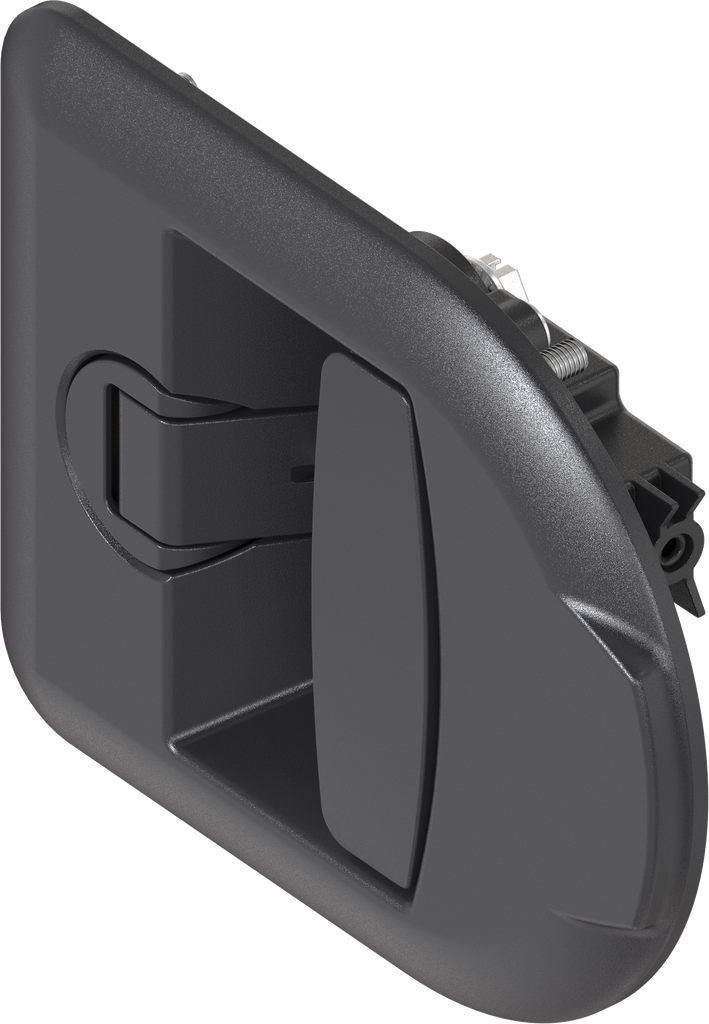

Folding T-handle with compression function blind (non-keyed), Polyamide GF black and zinc die black powder-coated; 1130-U24-01
with integrated padlock eyelet
Product information:

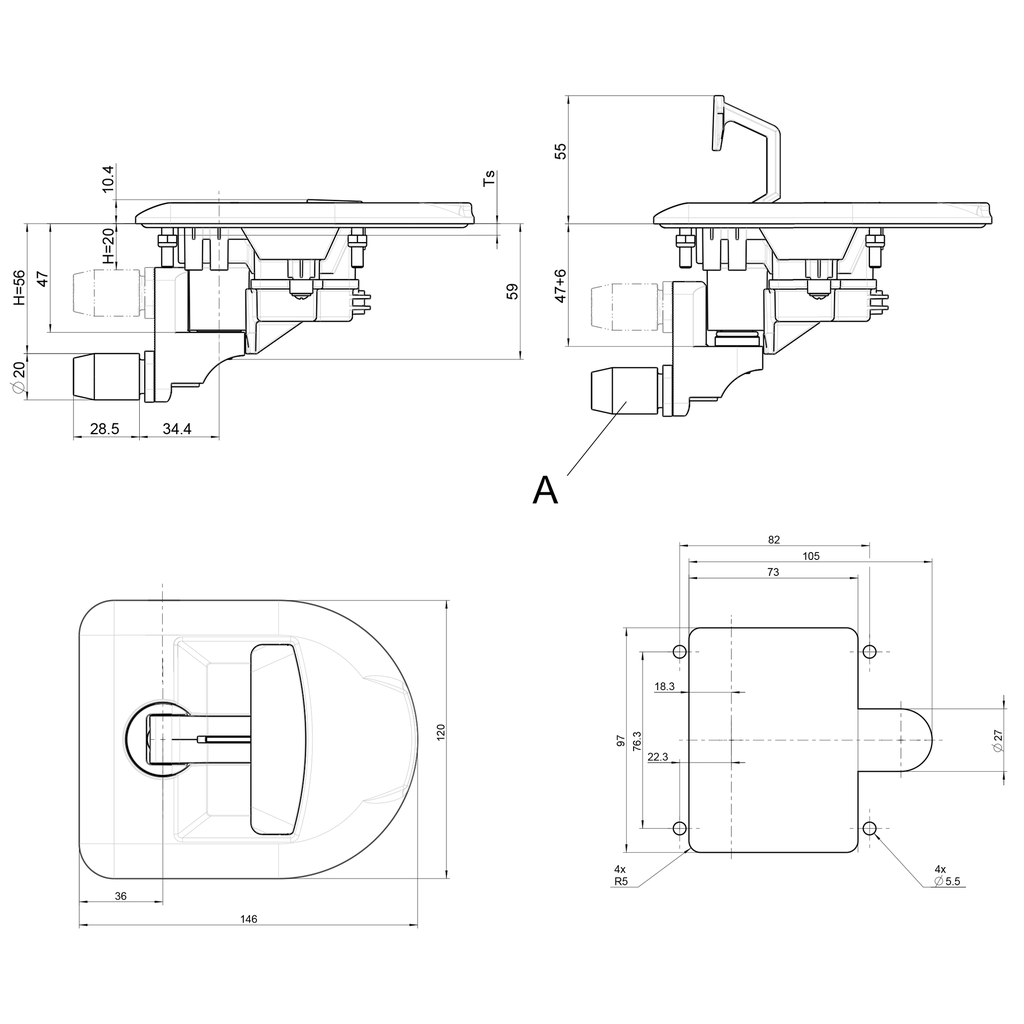

A = Roller cam height adjustable

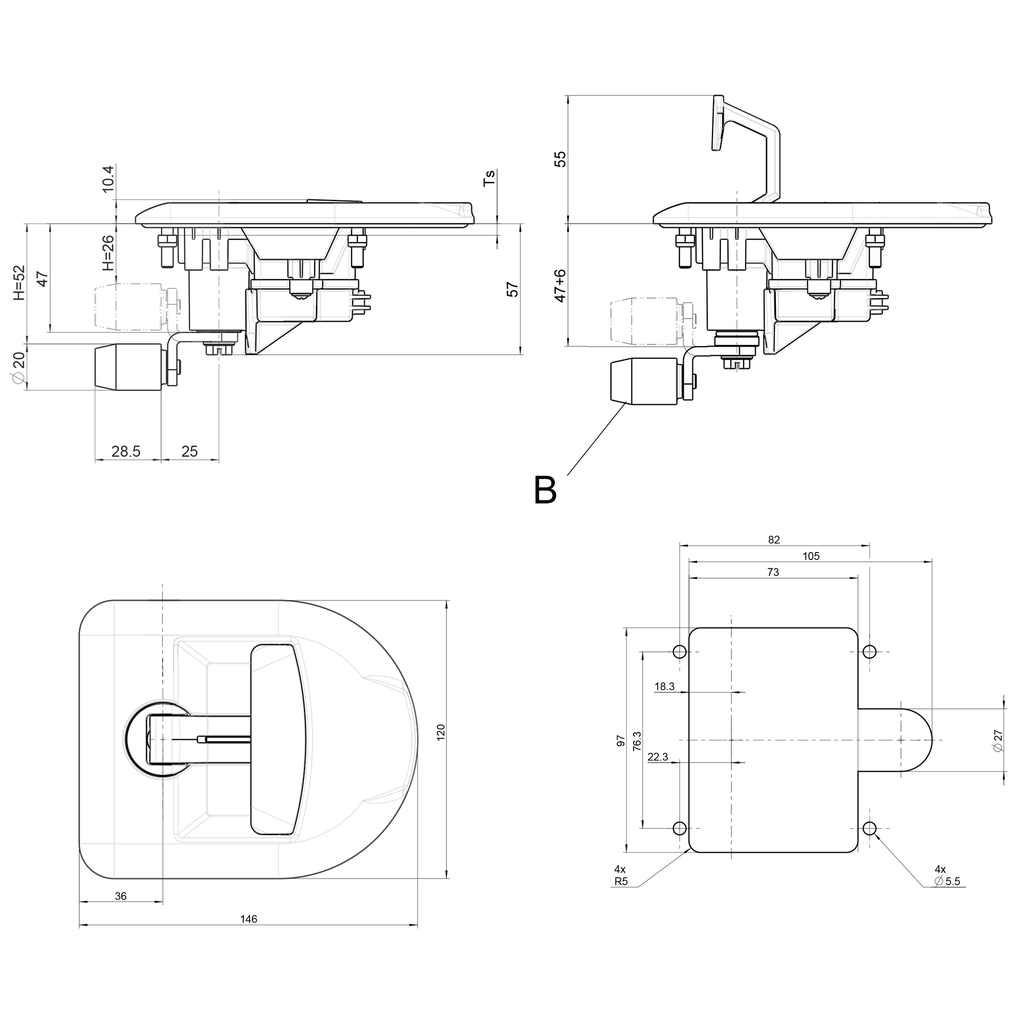

B = Roller cam small
C = Roller cam large
Internal Reference:
1130-U24-01
Standards:
Protection class IP 65
Barcode:
1130-U00024-0000001
Product Type:
Other latch
Program:
1130
Catalog sheet:
10A-110
Material of the module :
Polyamide GF black and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Type of attachment to the frame:
screw-on from inside
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Compression Value :
6 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
12 mm
Locking set:
No locking set, blind
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
concealed
Door Version :
Left,Right
Lock Type:
Chest handle with compression function
