Double cylinder swinghandle with 2-key-operation, Polyamide GF black

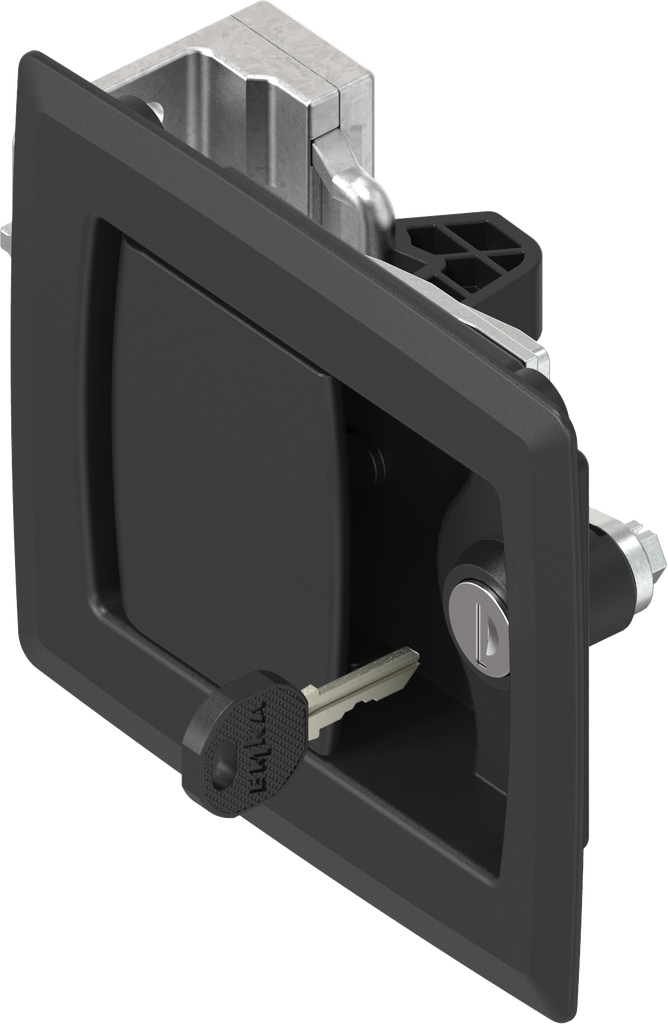

Chest handle keyed different, Polyamide GF black
Chest handle keyed different, Polyamide GF black; 1130-U2
No stock item, please ask for availability
Product information:

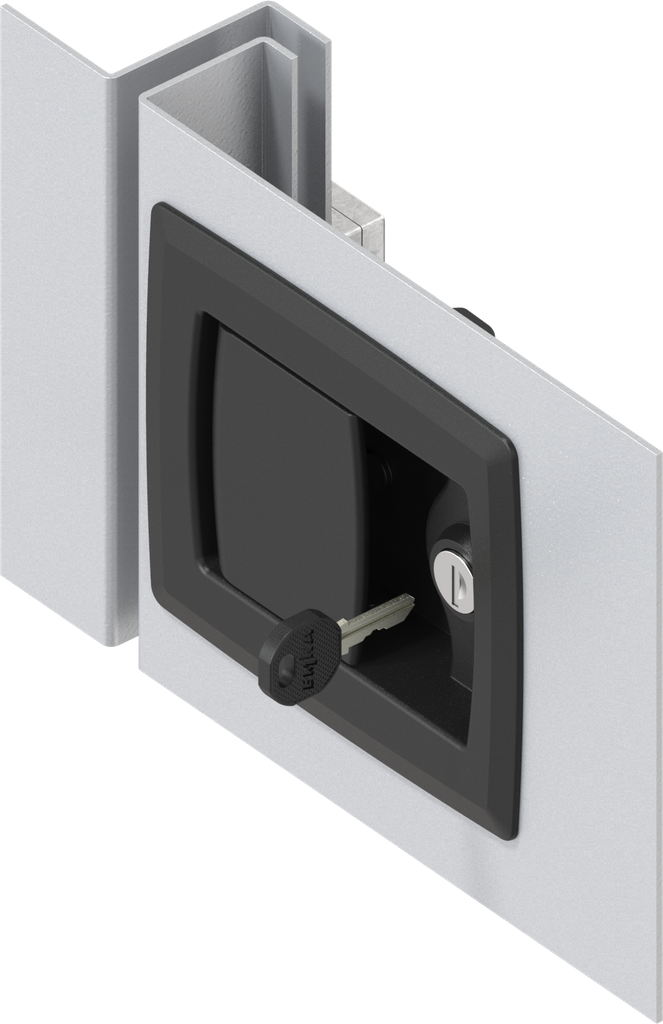

The folding handle 1130-U2 is designed for the right version. The left version is achieved by removing the round cylinder and reinstalling it rotated by 180°.

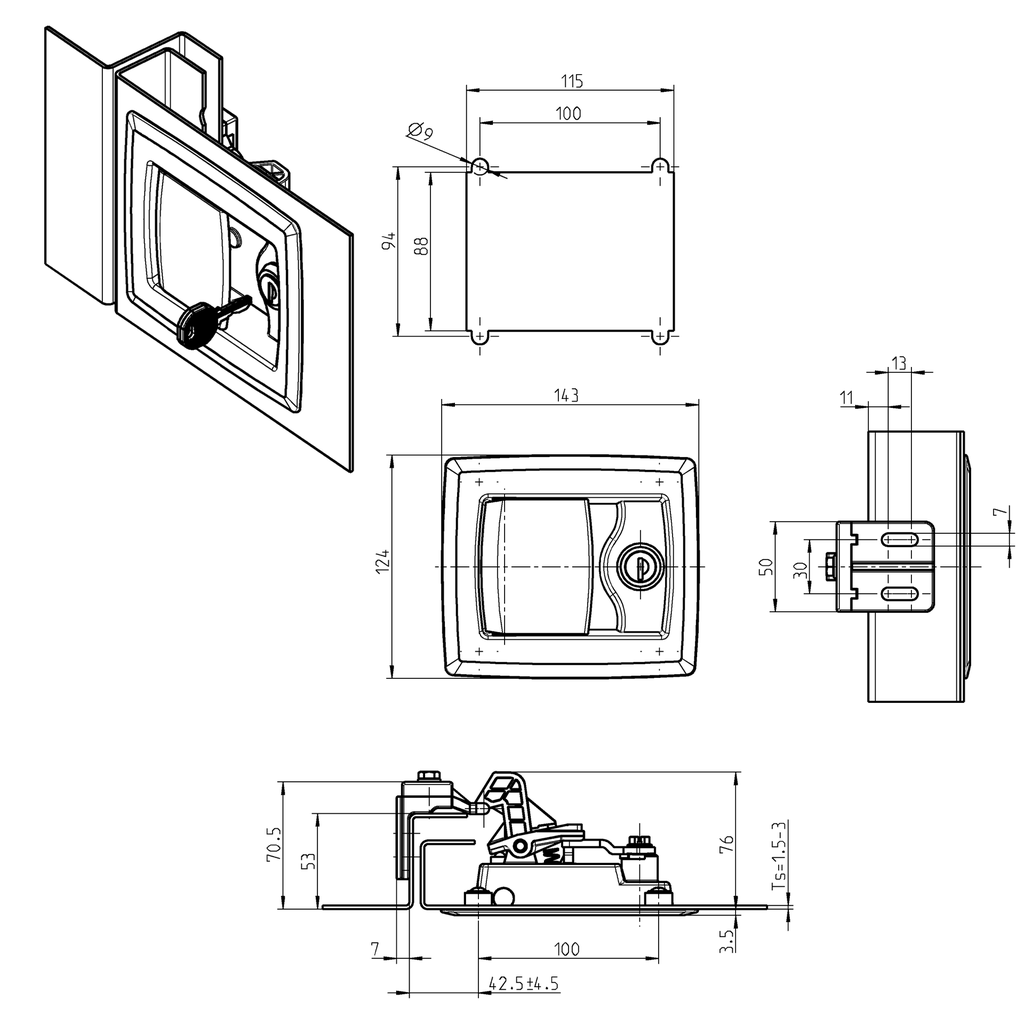

The minimum door width is 500 mm. The locking bar is adjustable by 9 mm.
Function:

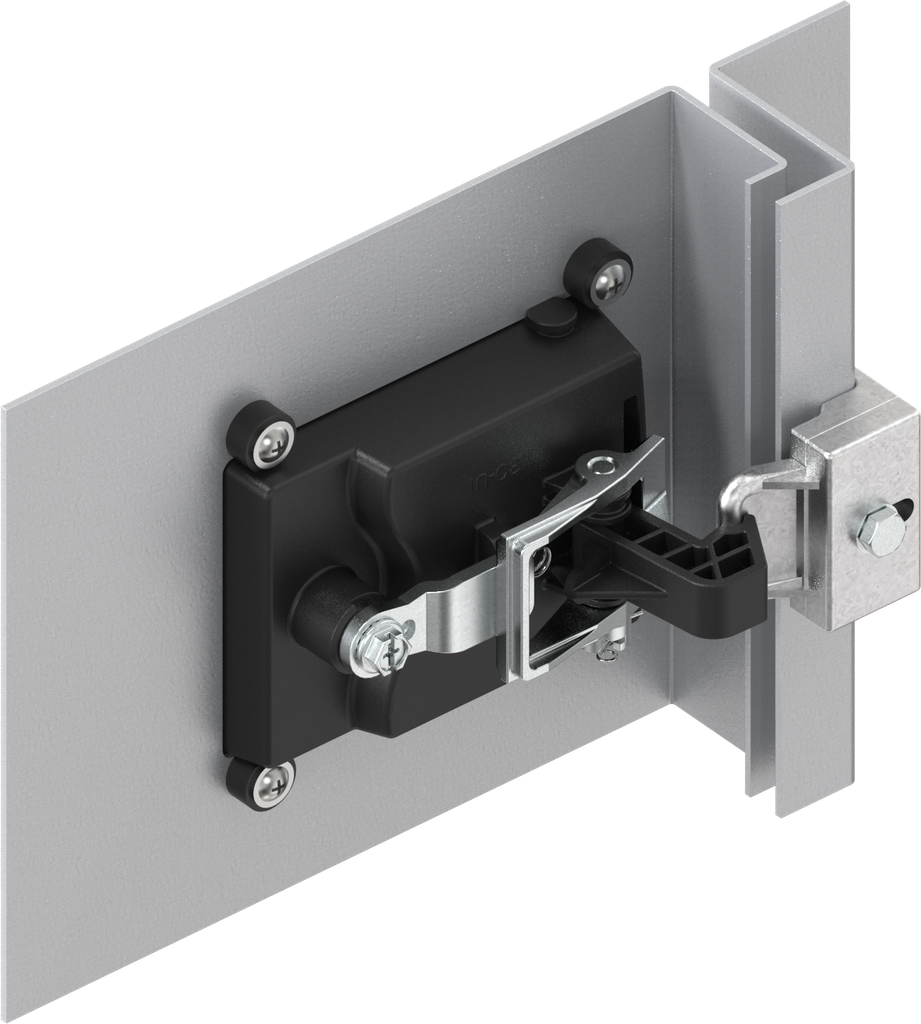

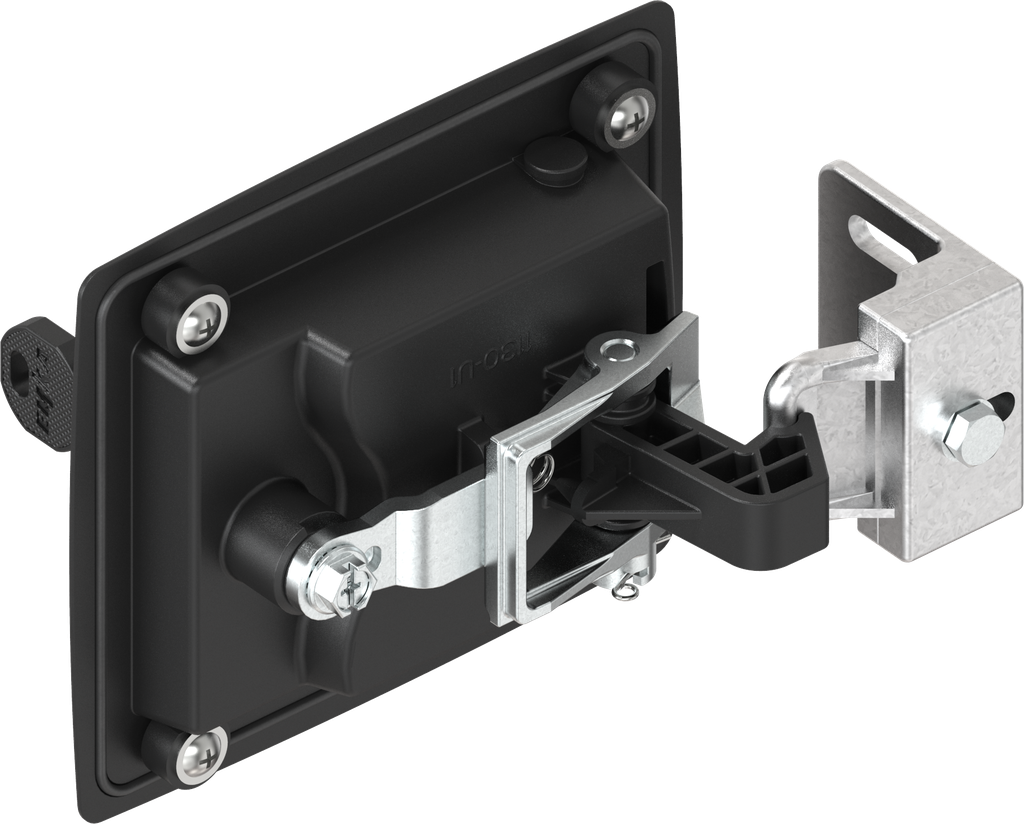

The spring-loaded locking hook is equipped with a 'door-slam' feature. With this, the door can also be closed when locked.
Internal Reference:
1130-U2
Standards:
Protection class IP 54, DIN EN 61373 (shock and vibration testing)
Barcode:
1130-U00002-0000000
Product Type:
Other latch
Program:
1130
Catalog sheet:
8A-120
Material of the module :
Polyamide GF
Surface of the module:
black
Adjustable 2D:
Yes
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
3 mm
Locking set:
Round cylinder
Door Version :
Left,Right
Lock Type:
Chest habdle with snap-in function
