135° Integral hinge for light doors and covers, Polyamide black
135° Integral hinge for light doors and covers, Polyamide black
Chest handle keyed EK 333, Polyamide GF black
Chest handle keyed EK 333, Polyamide GF black

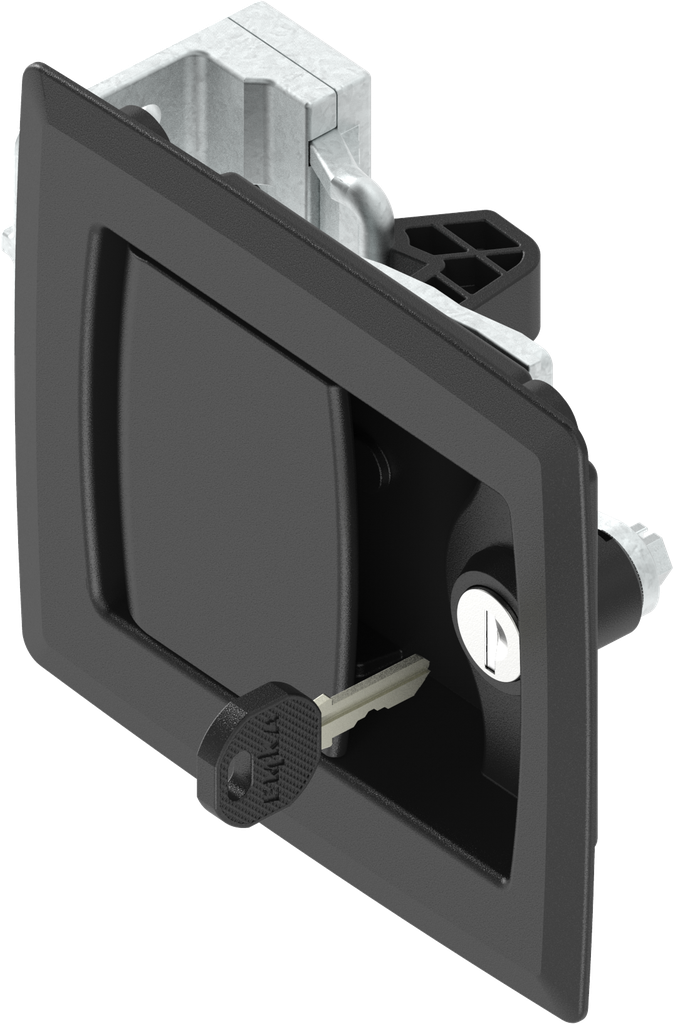

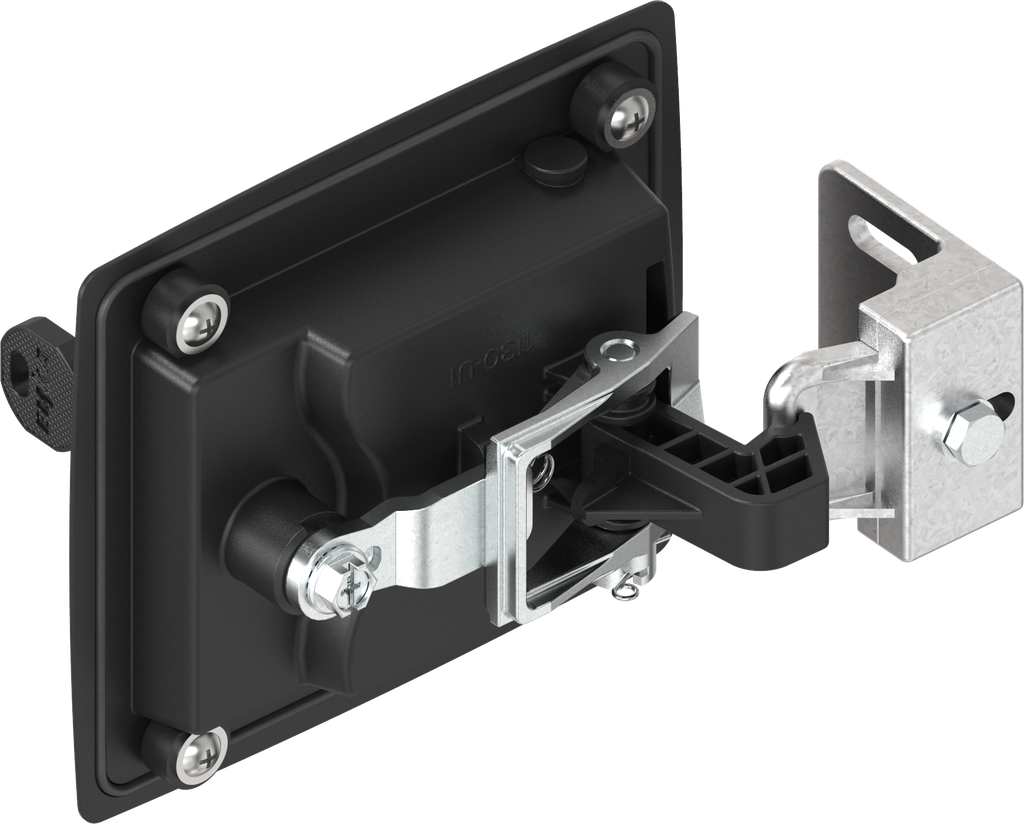

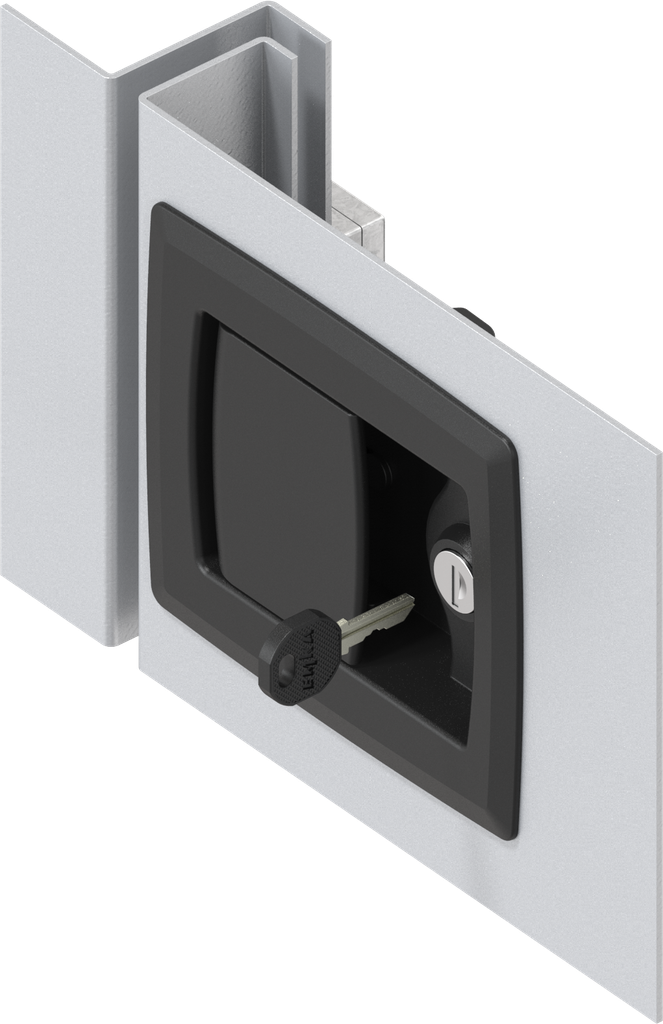

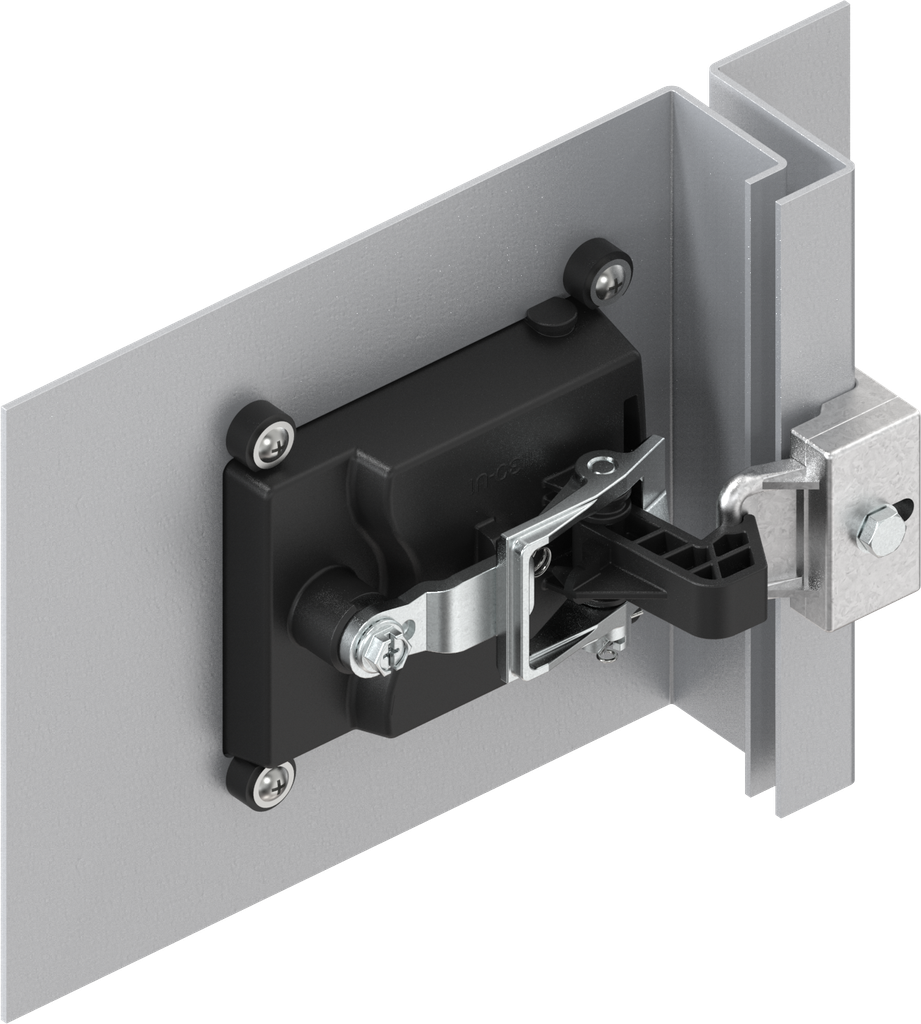

Chest handle keyed EK 333, Polyamide GF black; 1130-U1

https://www.emka.com/products/1130-u1 https://www.emka.com/web/image/product.template/64724/image_1920?unique=f85a849


    This combination does not exist.

    Inside the sealing Left Right


    Product information:

    The chest handles 1130-U1 and -U2 are made for right-hand version. Left-hand version is created by removal of the round cylinder, rotating it by 180° and refitting it.

    Function:

    The spring-loaded locking hook is equipped with a 'door-slam' feature. With this, the door can also be closed when locked.

    Internal Reference: 1130-U1
    Product Type: Other latch
    Program: 1130
    Catalog sheet: 8A-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Adjustable 2D: Yes
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set: Round cylinder
    Door Version : Left,Right
    Lock Type: Chest habdle with snap-in function
    No Specifications
    View All Products

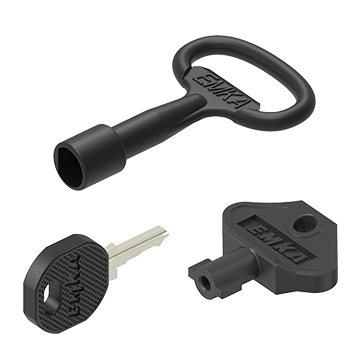

    Keys

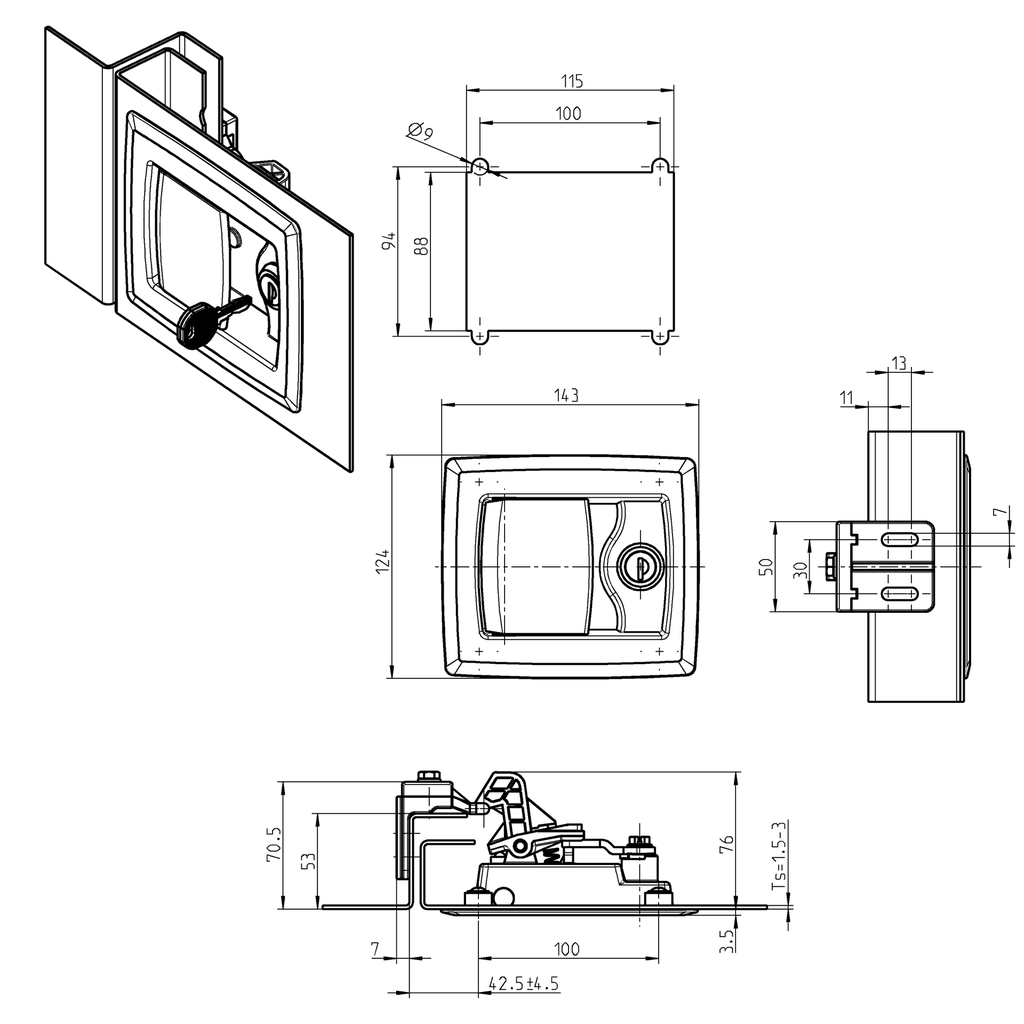

    Here you can find the product data sheets and CAD files of this product
