Escutcheon with wing knob, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon with wing knob, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon with T-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon with T-handle, non-keyed, Polyamide black and zinc die black powder-coated

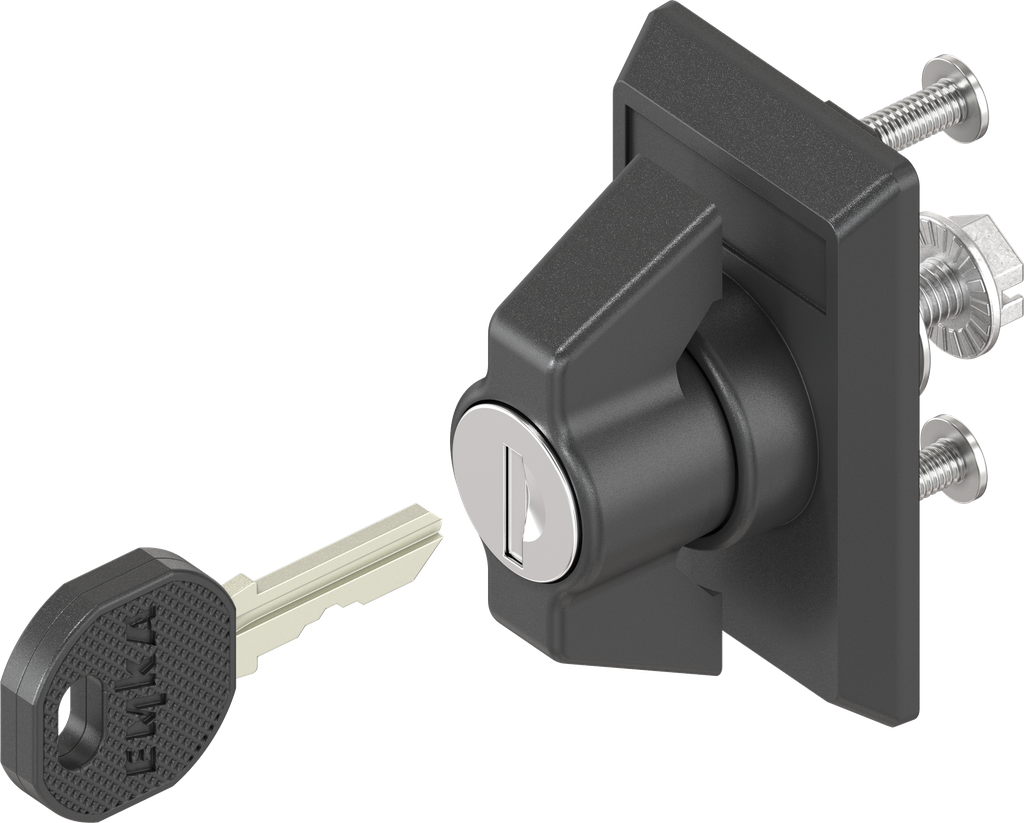

Escutcheon with wing knob, keyed EK 333, Polyamide black and zinc die black powder-coated; 1123-U5-06

https://www.emka.com/products/1123-u5-06 https://www.emka.com/web/image/product.template/64569/image_1920?unique=c57f91b


    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65


    Internal Reference: 1123-U5-06
    Product Type: Escutcheon
    Program: 1123
    Catalog sheet: 3B-180
    Material of the module : Polyamide black and zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art: Wing knob
    Locking means key tag: Wing knob keyed EK 333
    Key Tag Size: short
    Thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys
    Rod control
    Rod control accessories
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
