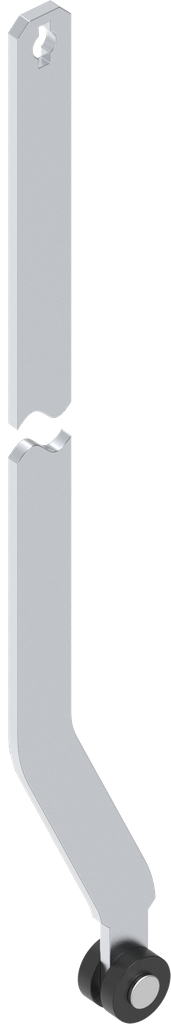

Flat rod L = 801 - 900 mm, Steel zinc-plated
Product information:

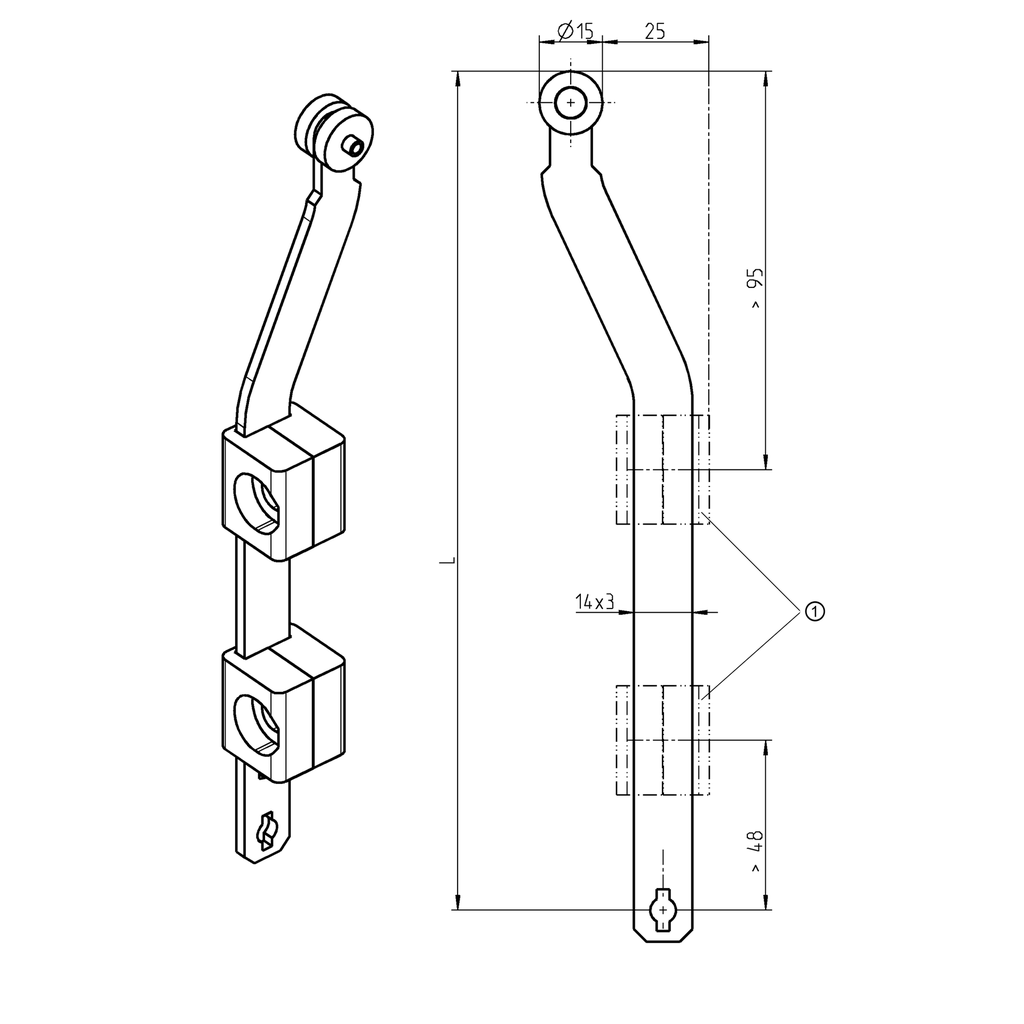

① = Rod guide
Order / Calculation example:
Order number for a flat rod with rollers and a length of 1034 mm = 1121-U28-L 1034
Internal Reference:
1121-U28-03
Barcode:
1121-U00028-0000003
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for rod control
Dimension L up to:
700 mm
Dimension L from:
601 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
