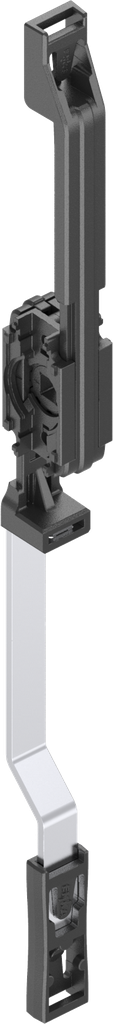

Rod control for flat rods, Made of high-quality plastic combination black; 1121-U26-K

https://www.emka.com/products/1121-u26-k https://www.emka.com/web/image/product.template/64506/image_1920?unique=c15332e


    This combination does not exist.

    Inside the sealing Outside the sealing Left Right

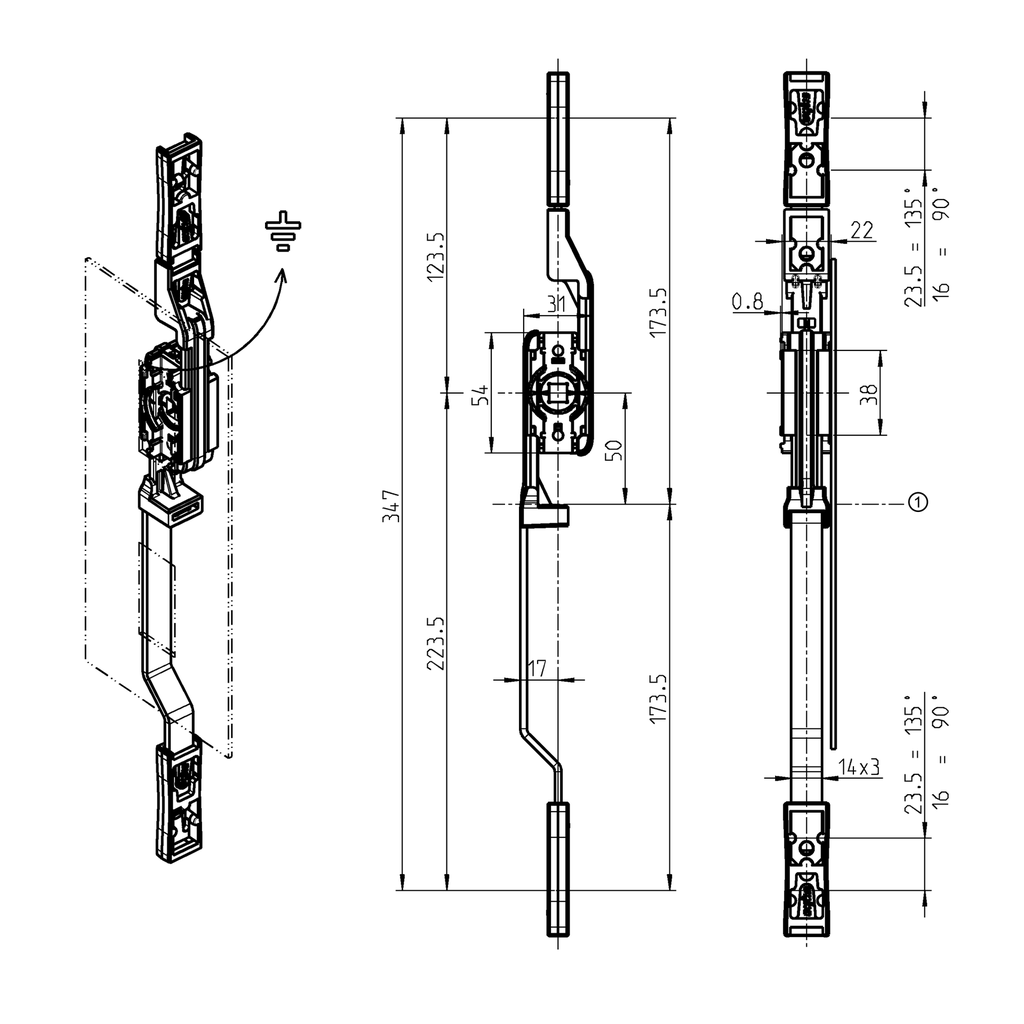

    Product information:

    ① = Center cut out

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm

    Internal Reference: 1121-U26-K
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-110
    Material of the module : Made of high-quality plastic combination
    Surface of the module: black
    Rod: Flat rod
    Connection rod mount: Rivet clip-in, quick mounting
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Quick assembly of rod: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod
    Rod control accessories
    Escutcheon

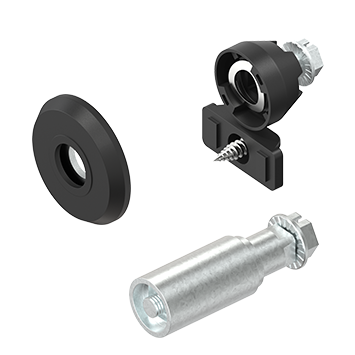

    Adapter

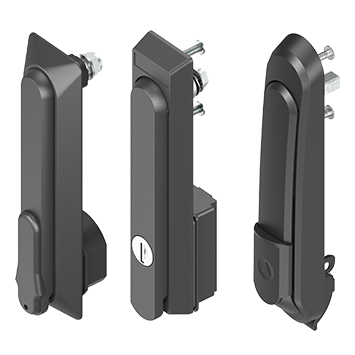

    Swinghandle, Lifthandle
