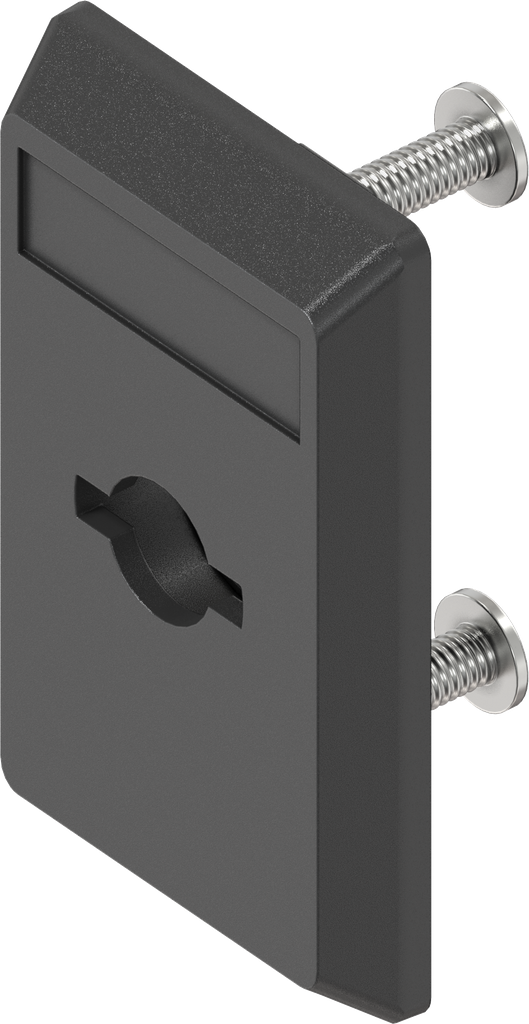

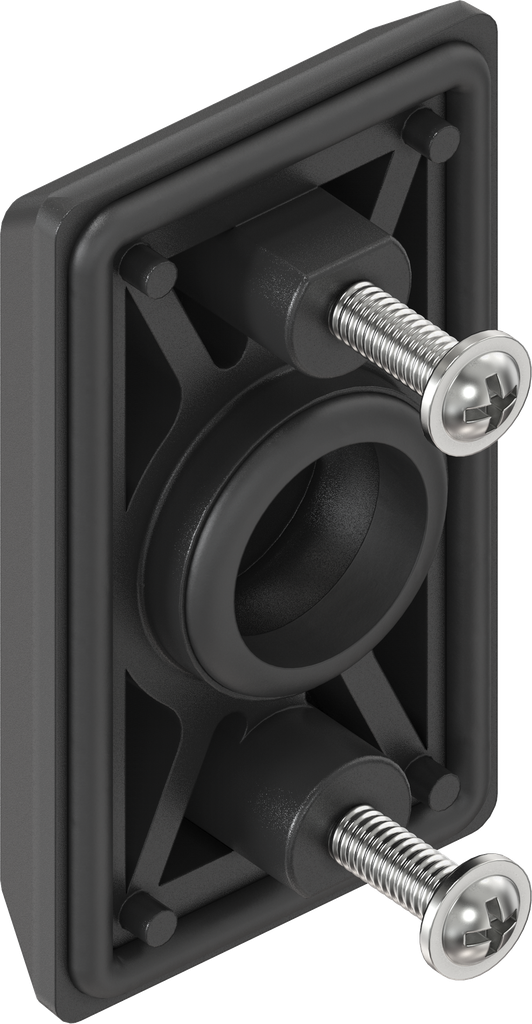

Escutcheon short for double bit, Polyamide GF black; 1121-U23-06

https://www.emka.com/products/1121-u23-06 https://www.emka.com/web/image/product.template/64502/image_1920?unique=c7520c7


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65


    Internal Reference: 1121-U23-06
    Product Type: Escutcheon
    Program: 1121
    Catalog sheet: 3B-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Locking means key tag: Insert double bit
    Key Tag Size: short
    Thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control

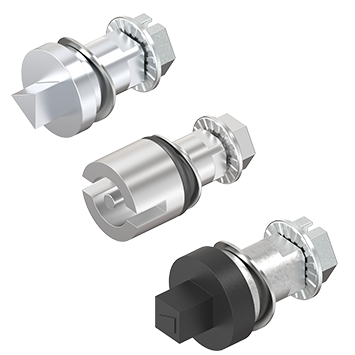

    Insert
    Bearing bush

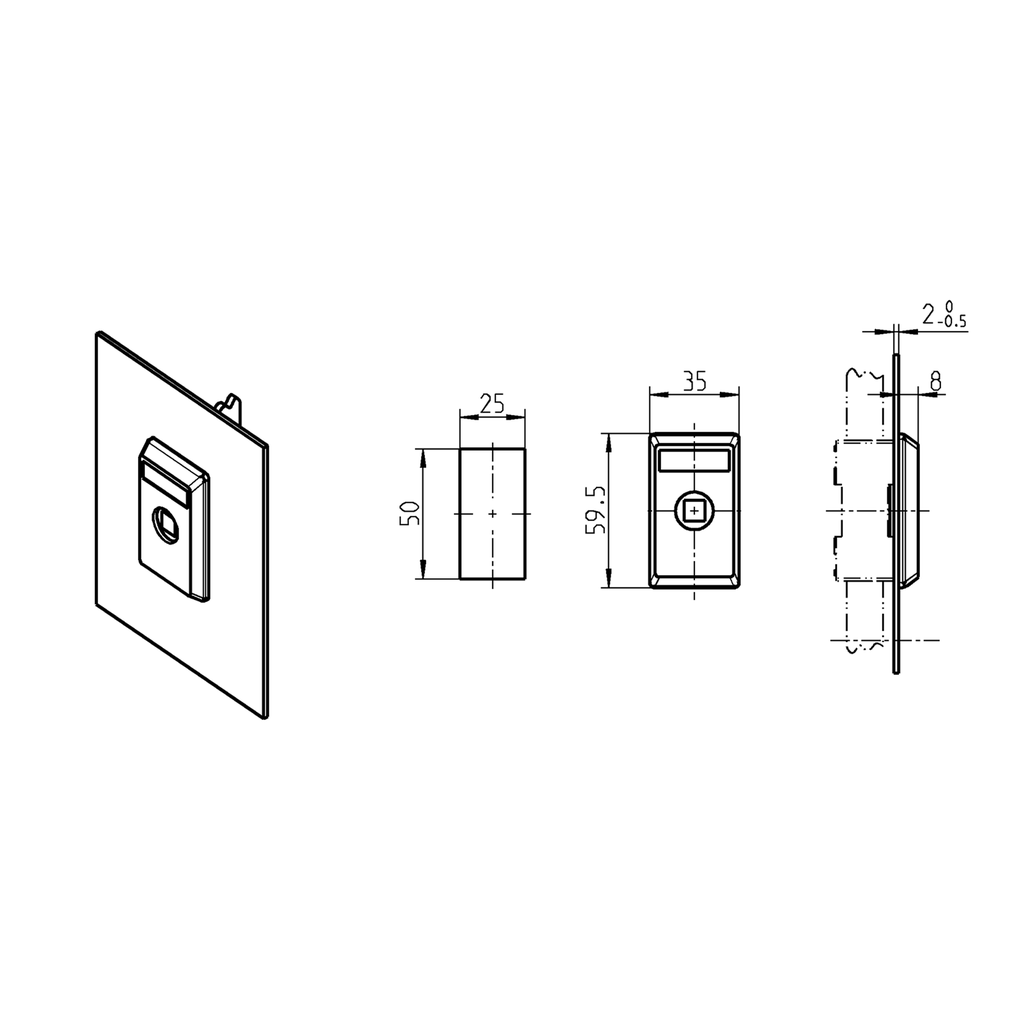

    Here you can find the product data sheets and CAD files of this product
