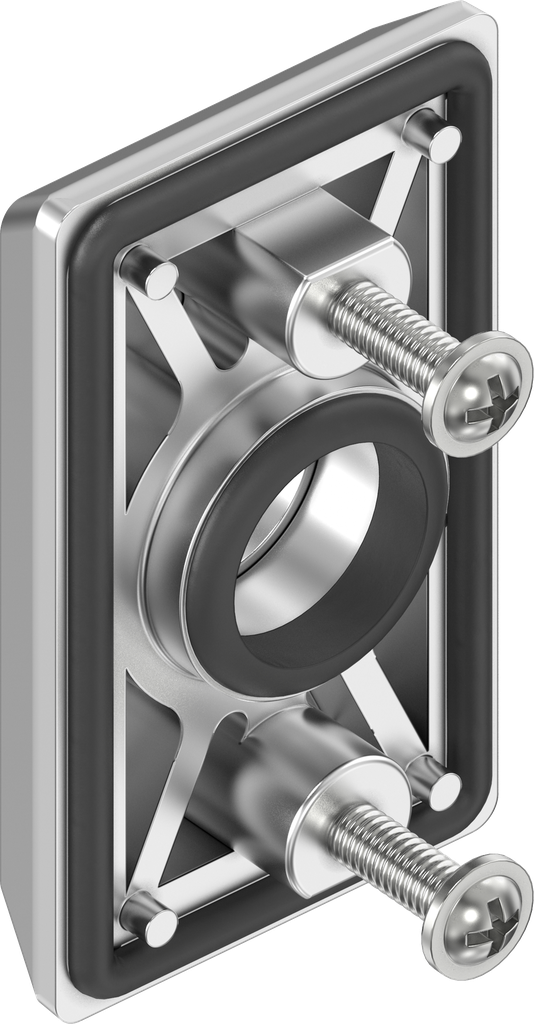

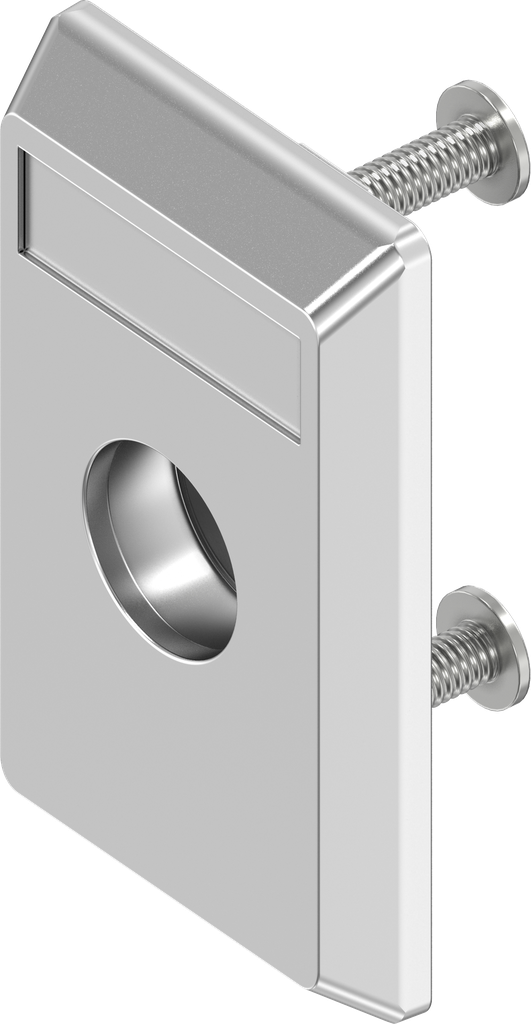

Escutcheon short for square, triangular, Daimler Benz and slot, Stainless steel AISI 316; 1121-U22-06PH

https://www.emka.com/products/1121-u22-06ph https://www.emka.com/web/image/product.template/64501/image_1920?unique=0705b63


    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65


    Internal Reference: 1121-U22-06PH
    Product Type: Escutcheon
    Program: 1121
    Catalog sheet: 3B-120
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Key Tag Size: short
    Thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Insert
    Rod control
    Bearing bush
    Adapter

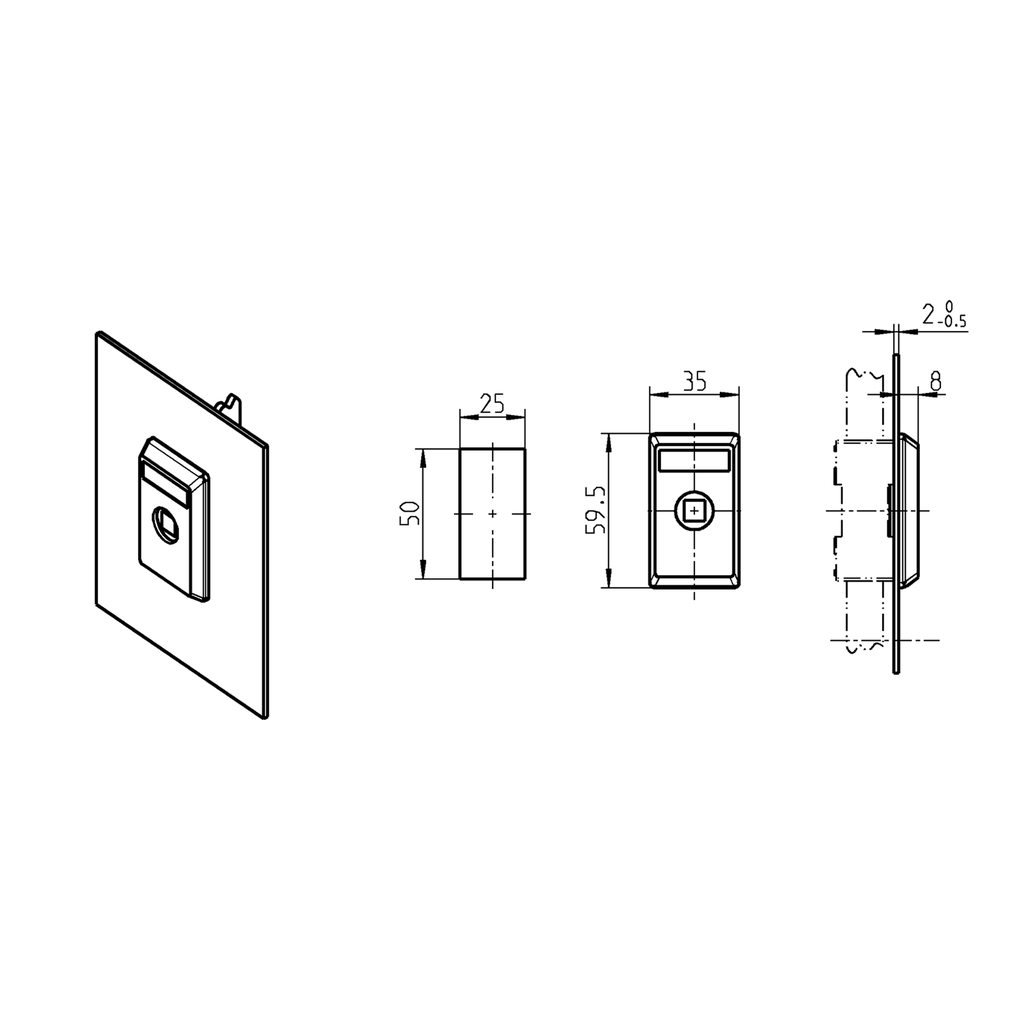

    Here you can find the product data sheets and CAD files of this product
