Flat rod L = 901 - 1000 mm, left version, Steel zinc-plated
Flat rod L = 1101 - 1200 mm, left version, Steel zinc-plated
Flat rod L = 1001 - 1100 mm, left version, Steel zinc-plated; 1121-U146-07
No stock item, please ask for availability
Product information:

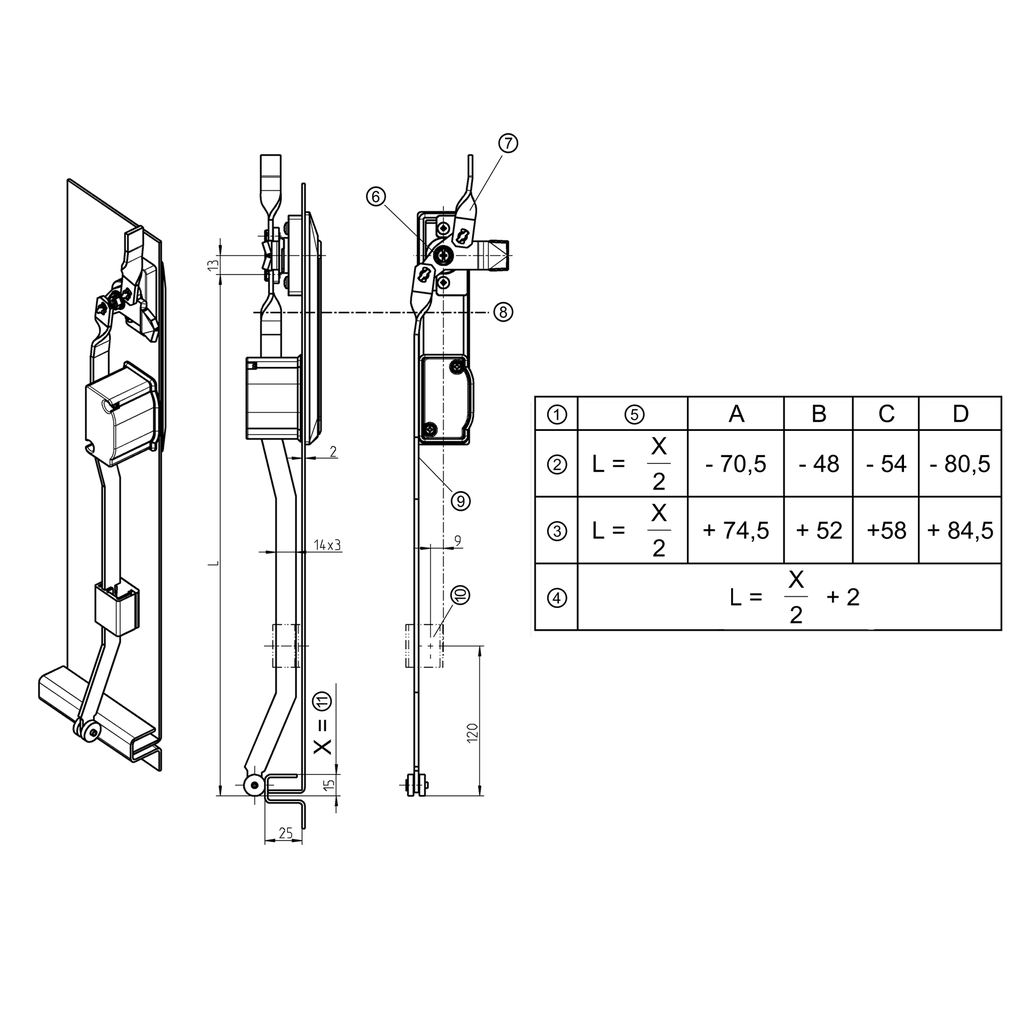

Drawing shown in mirror image
① = Calculation of rod length L
② = Rod, top
③ = rod, bottom
④ = Centre of rotation at door centre, top and bottom same rod length
⑤ = Formula
⑥ = Centre of rotation
⑦ = Rod, top
⑧ = Door centre and clear height
⑨ = Rod, bottom
⑩ = Rod guide
⑪ = Clear height
A = Double cylinder swinghandle program 1125, swinghandle program 1151 catalogue page 3C-420, swinghandle program 1154 catalogue page 3C-280
B = Swinghandle program 1153 catalogue page 3C-320, swinghandle program 1154 catalogue page 3C-220C
C = Swinghandle program 1154 catalogue page 3C-260
D = Double cylinder swinghandle program 1225
Ts = 2 mm, other door thicknesses on request
Order / Calculation example:
Order number for a flat rod with rollers and a length of 1034 mm = 1121-U146-L 1034
Internal Reference:
1121-U146-07
Barcode:
1121-U00146-0000007
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for cam
Dimension L up to:
1100 mm
Dimension L from:
1001 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
