Flat rod L = 901 - 1000 mm, Steel zinc-plated
Flat rod L = 901 - 1000 mm, Steel zinc-plated
Flat rod L = up to 500 mm, right version, Steel zinc-plated
Flat rod L = up to 500 mm, right version, Steel zinc-plated

Flat rod L = 1001 - 1100 mm, Steel zinc-plated; 1121-U144-07

https://www.emka.com/products/1121-u144-07 https://www.emka.com/web/image/product.template/224467/image_1920?unique=1189194


    This combination does not exist.

    Inside the sealing


    Product information:

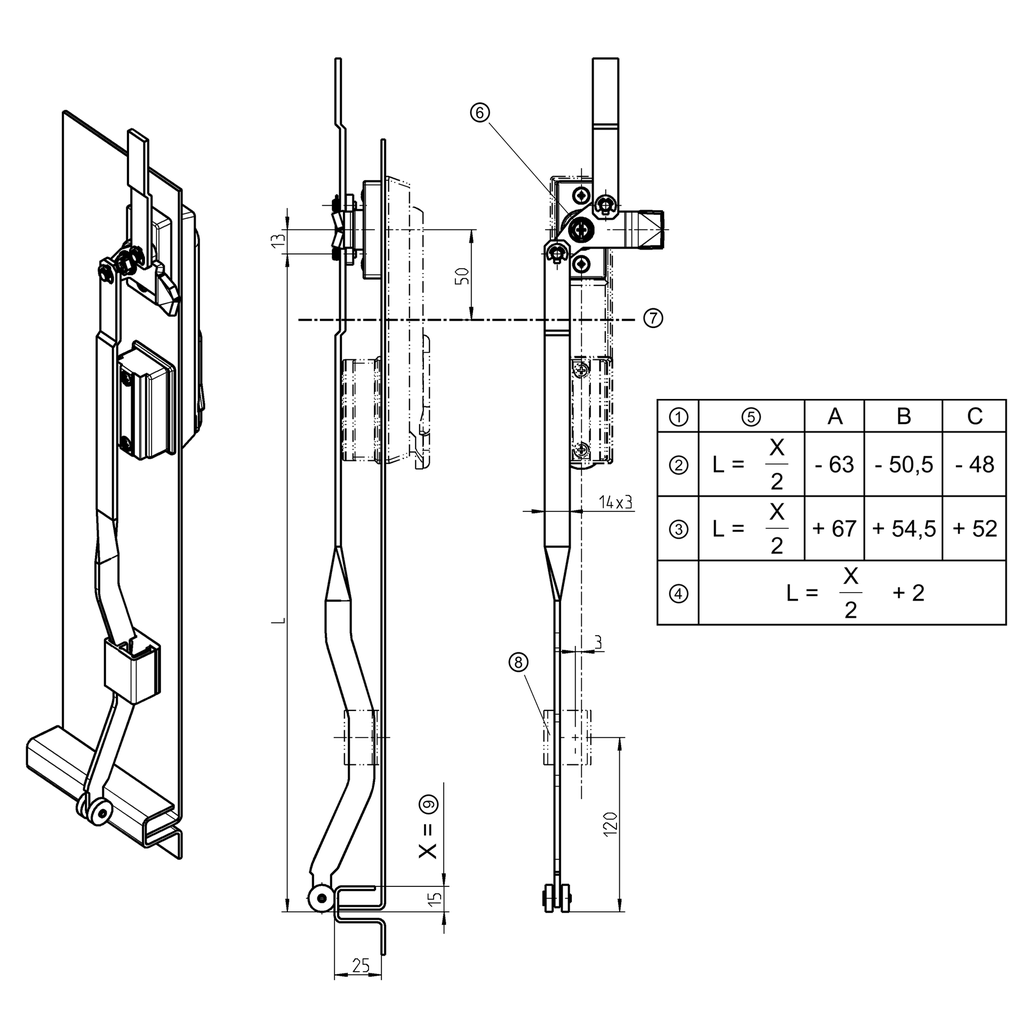

    ① = Calculation of rod length L
    ② = Rod, top
    ③ = Rod, bottom
    ④ = Centre of rotation at door centre, top and bottom same rod length
    ⑤ = Formula
    ⑥ = Centre of rotation
    ⑦ = Door centre and clear height
    ⑧ = Rod guide
    ⑨ = Clear height

    A = Swinghandle program 1107 and 1317 with cut out
    Bore hole distance 130 mm
    B = Swinghandle program 1107 and 1317 with cut out
    Bore hole distance 105 mm
    C = Swinghandle Program 1125, 1225, 1325 and 3000
    Ts = 2 mm, other door gauges on request

    Internal Reference: 1121-U144-07
    Product Type: Rod
    Program: 1121
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Inside the sealing, top or bottom
    Mounting Positions : Inside the sealing
    Flat Bar Inside: Flat rod with roller for cam
    Dimension L up to: 1100 mm
    Dimension L from: 1001 mm
    No Specifications
    View All Products
    Cam
    Rod control
    Rod guide
    Here you can find the product data sheets and CAD files of this product
