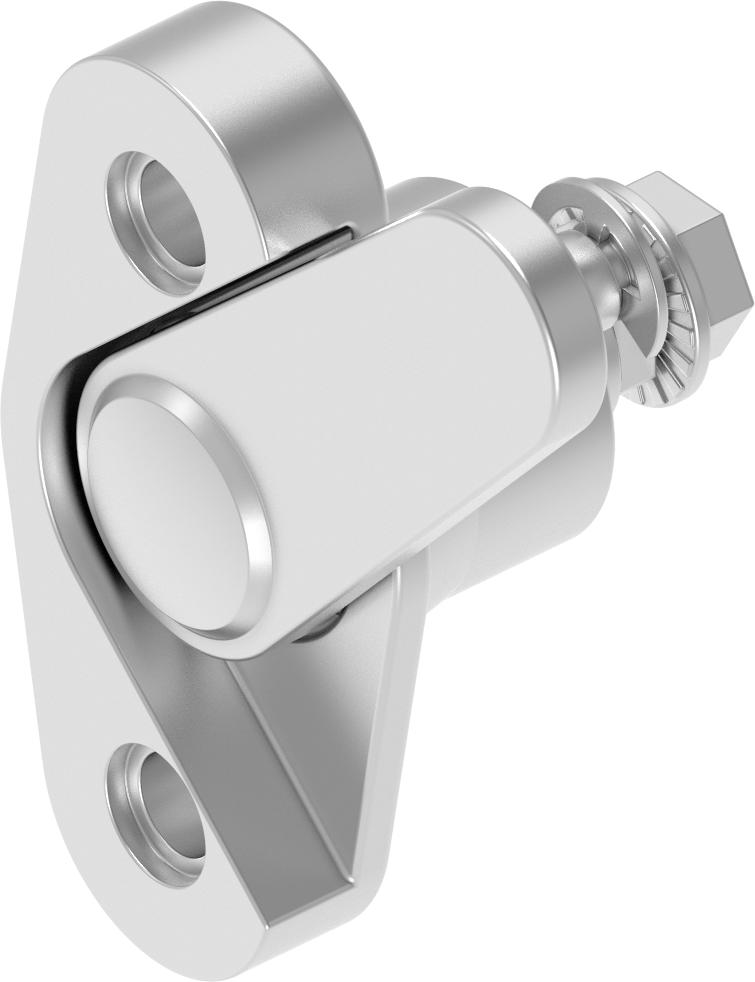

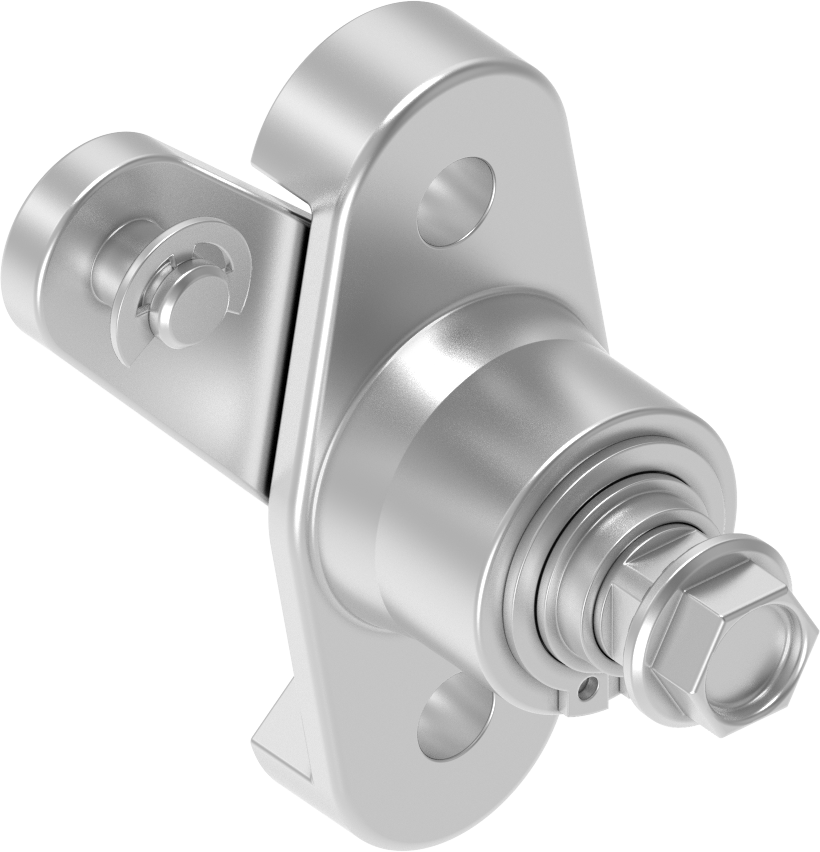

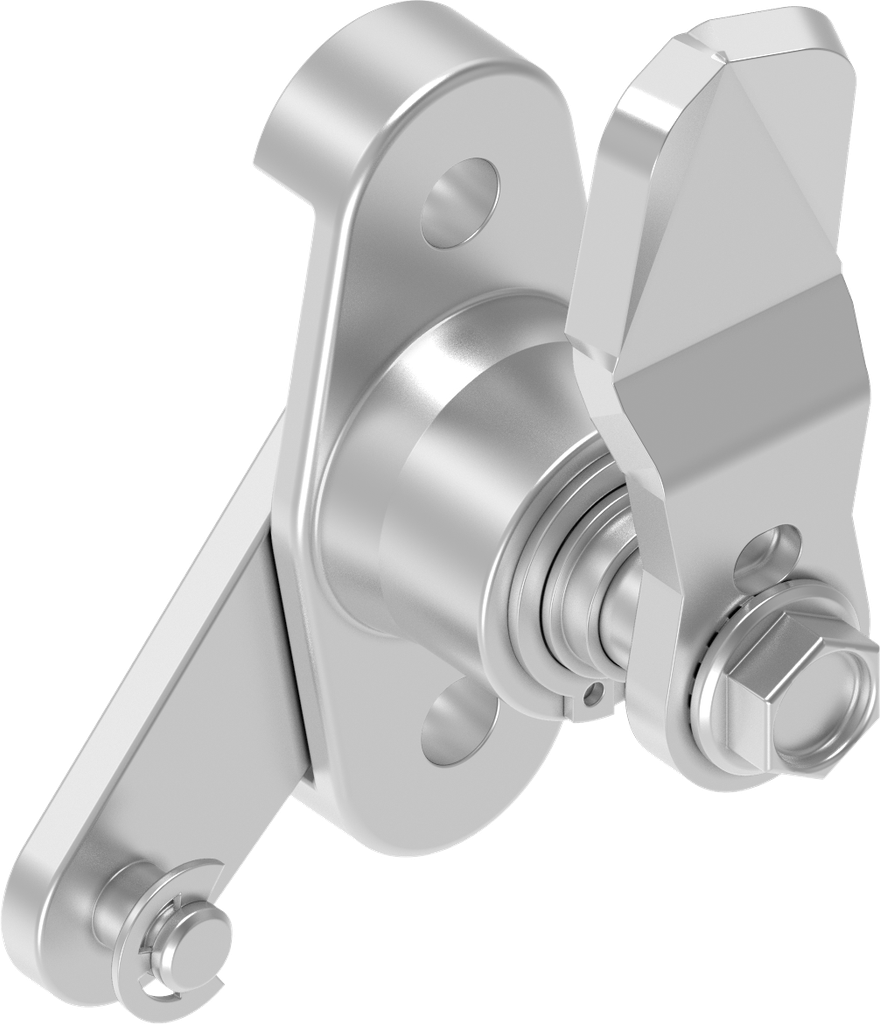

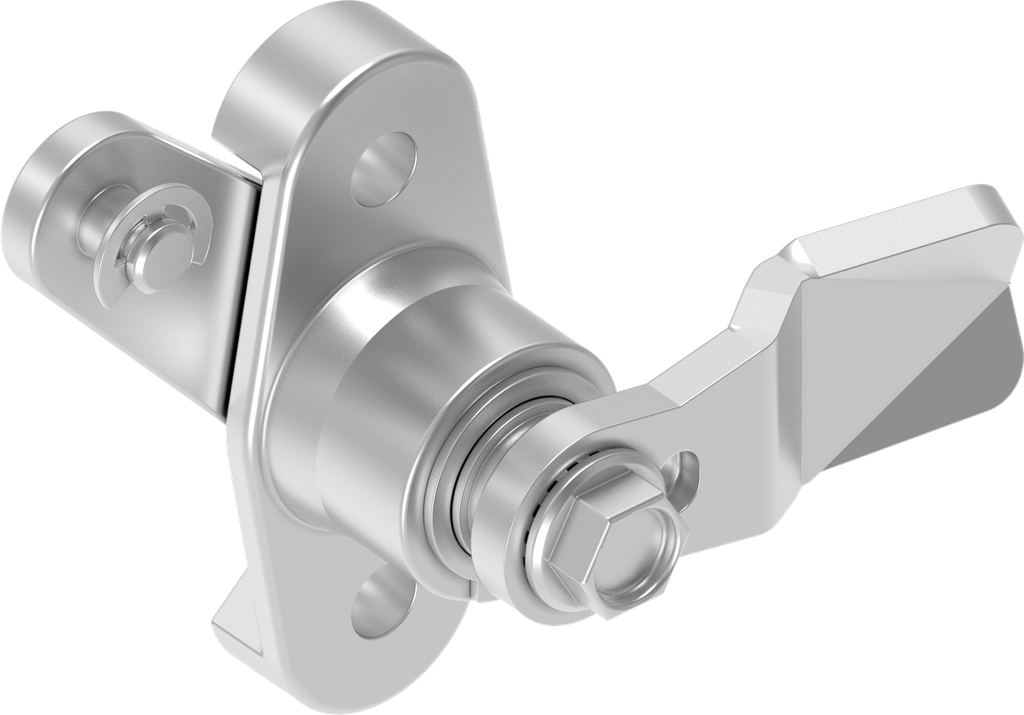

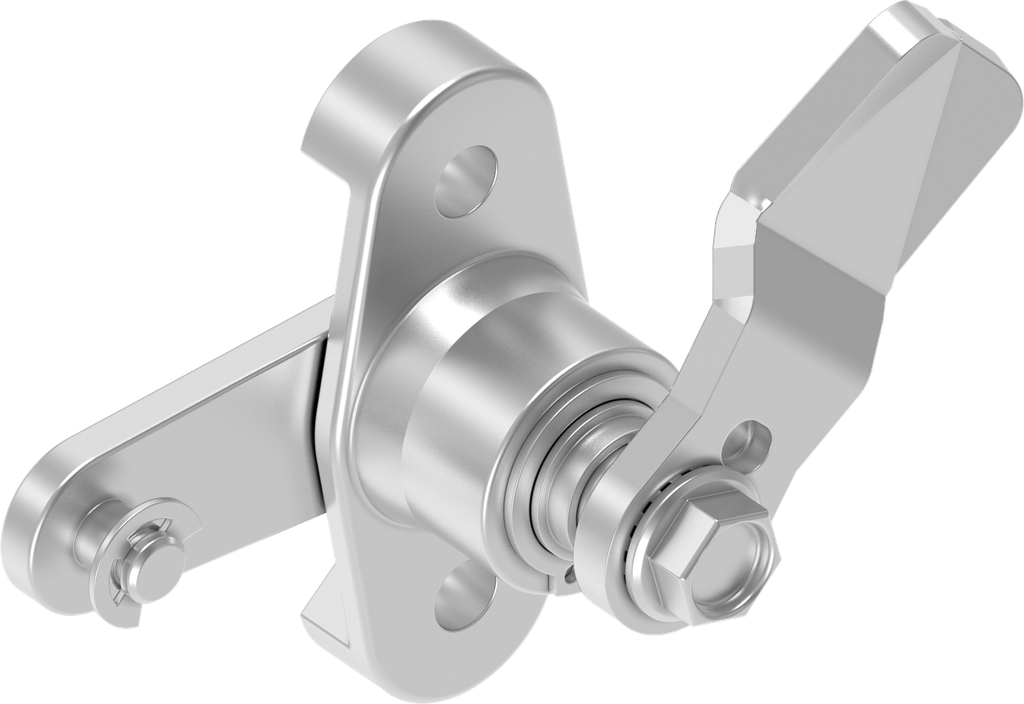

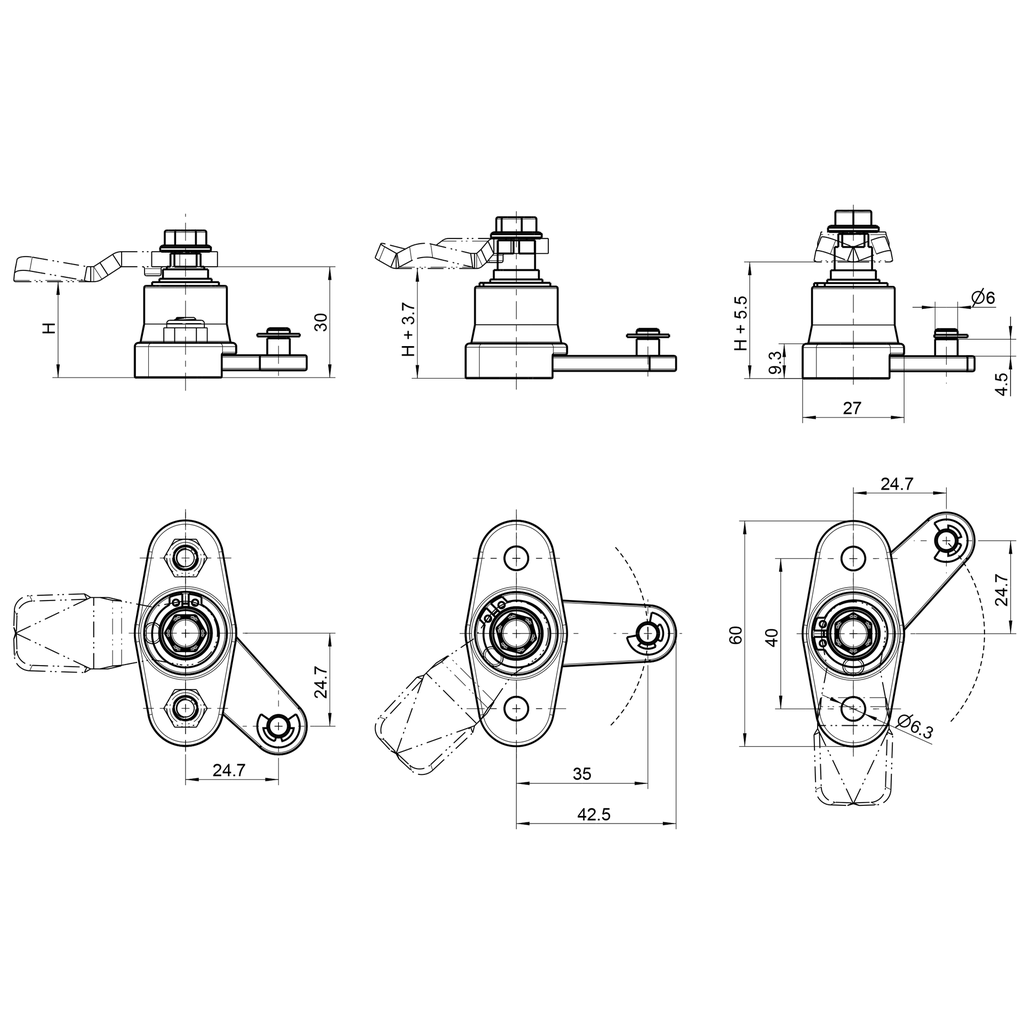

Locking point with compression function for multiple interlocking, left version, Stainless steel AISI 304 electropolished; 1121-SU537-LIPC
for swinghandles, quarter turns and HVACR systems
Product Benefits:
- Compression function
- Locking system and cut out independent of compression latch system
- Corner guide can be used for additional locks in transverse installation
- High closing comfort
- Patented
Product information:
Locking point for compression latch system

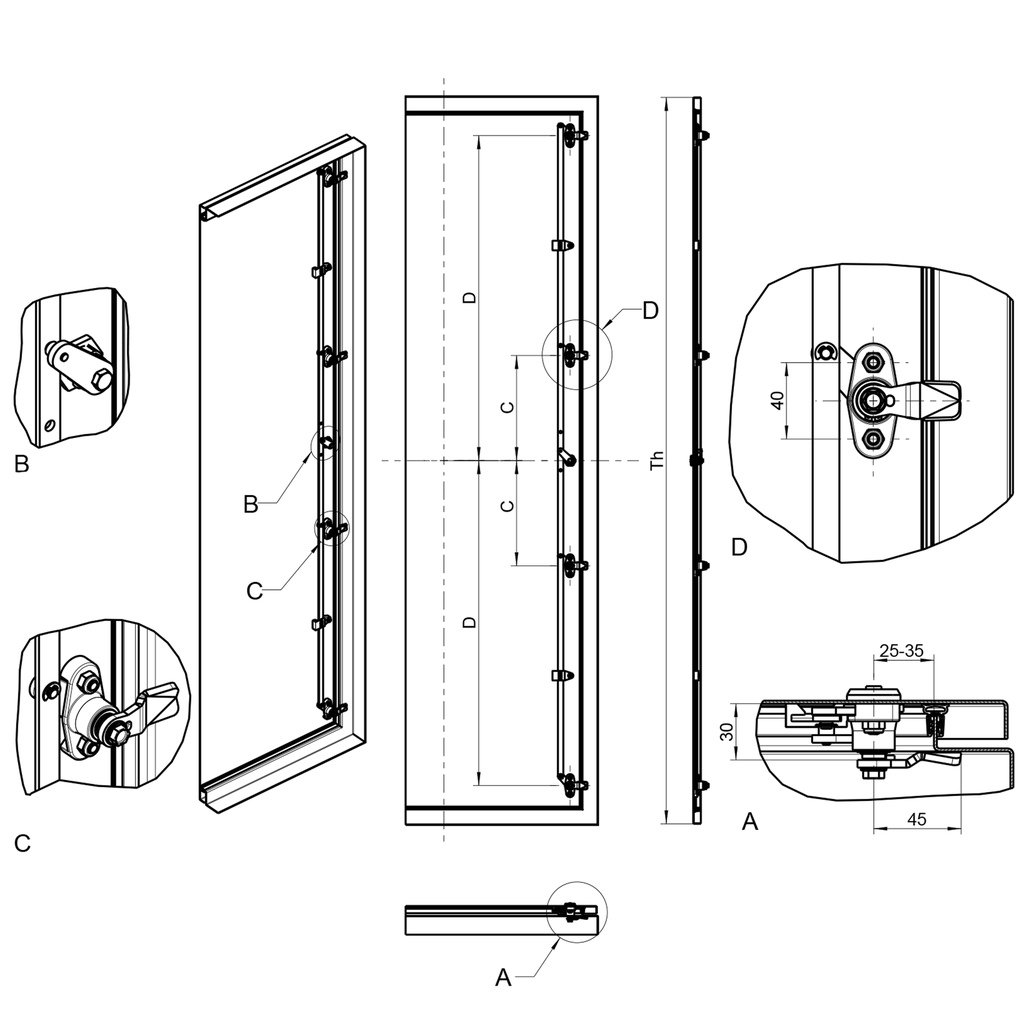

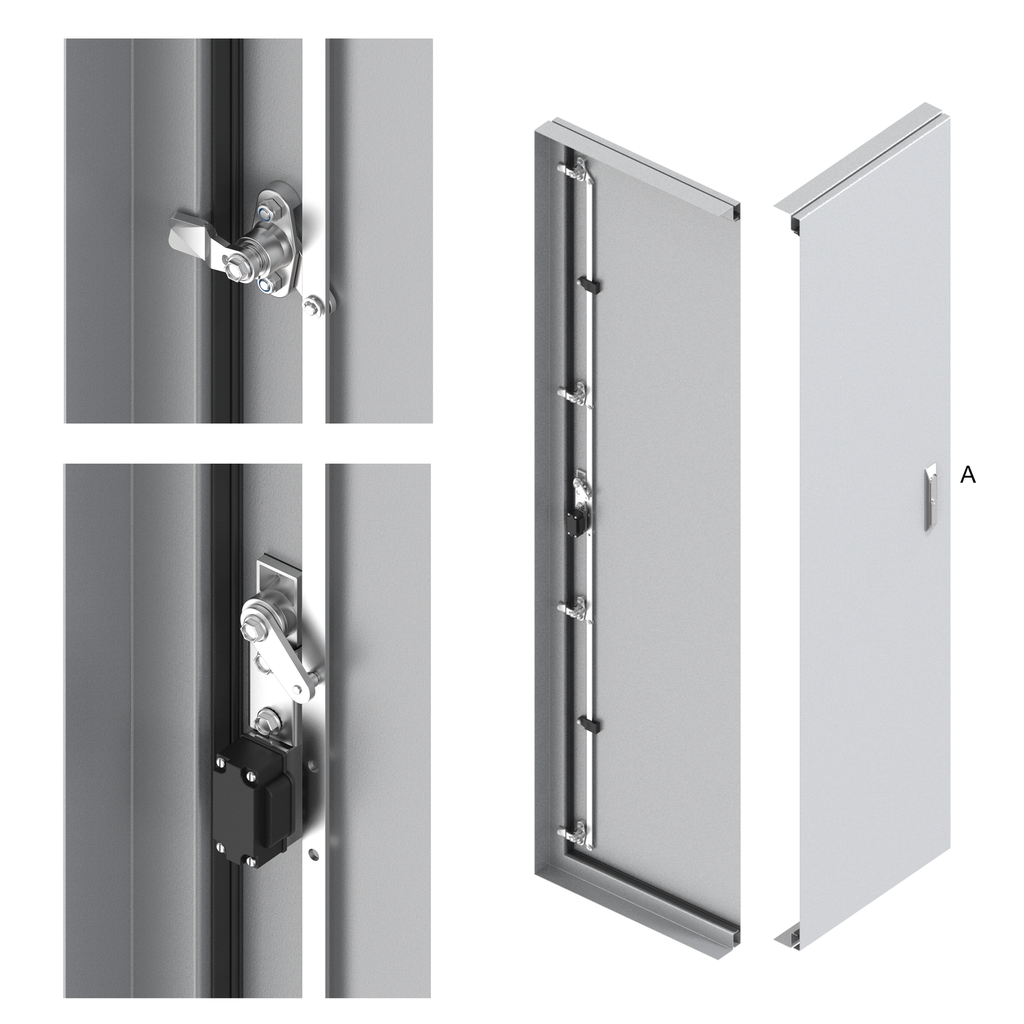

Left version for (A) swinghandle with GH = 18

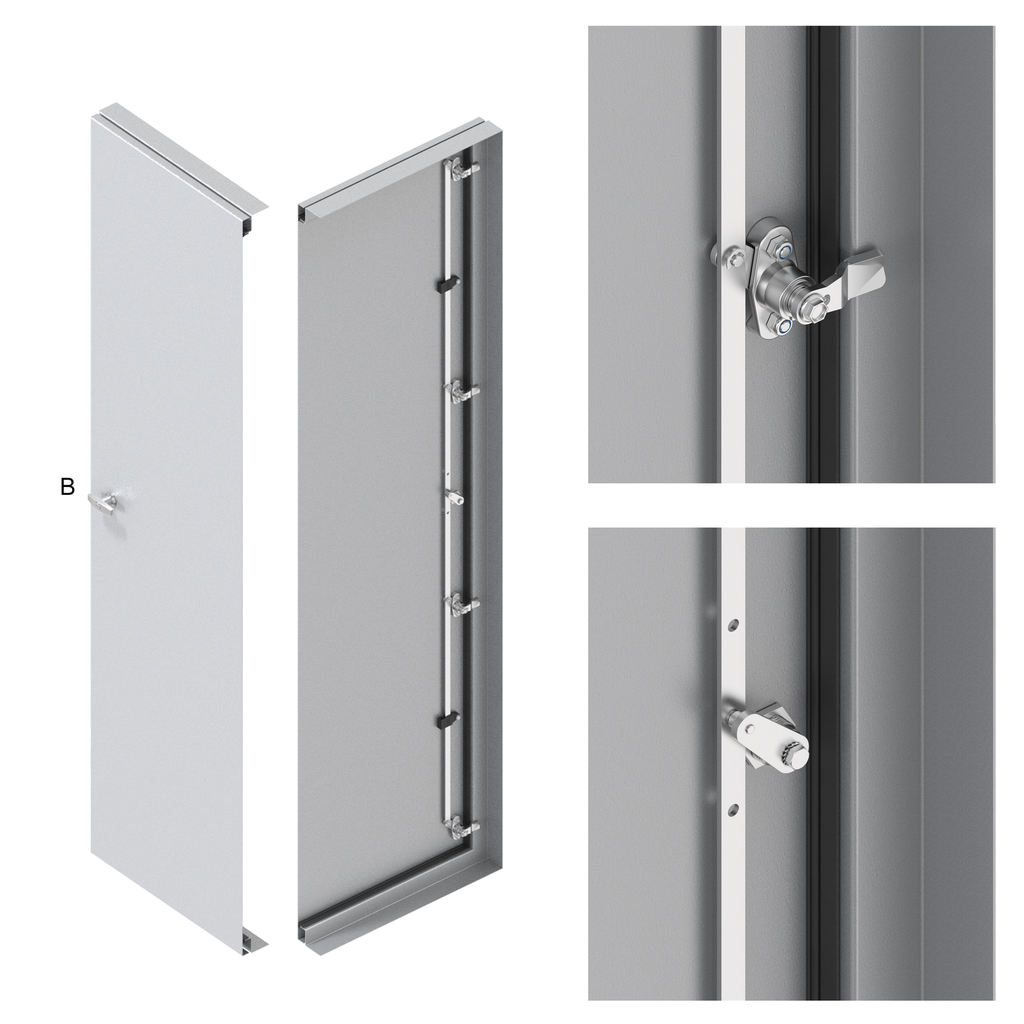

Right version for (B) and (C) quarter turn with GH = 18 with classic opening direction from 3 to 12 o'clock
For systems with corner guide, the connecting rods must be adapted to the respective door height.
Internal Reference:
1121-SU537-LIPC
Standards:
DIN EN 45545-3 class E60 (fire protection)
Barcode:
1121-SU0537-000LIPC
Product Type:
Locking point
Program:
1121
Catalog sheet:
B2-120
Material of the module :
Stainless steel AISI 304
Surface of the module:
electropolished
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Compression Value :
4 mm
Door Version :
Left
Locking components:
Cam
