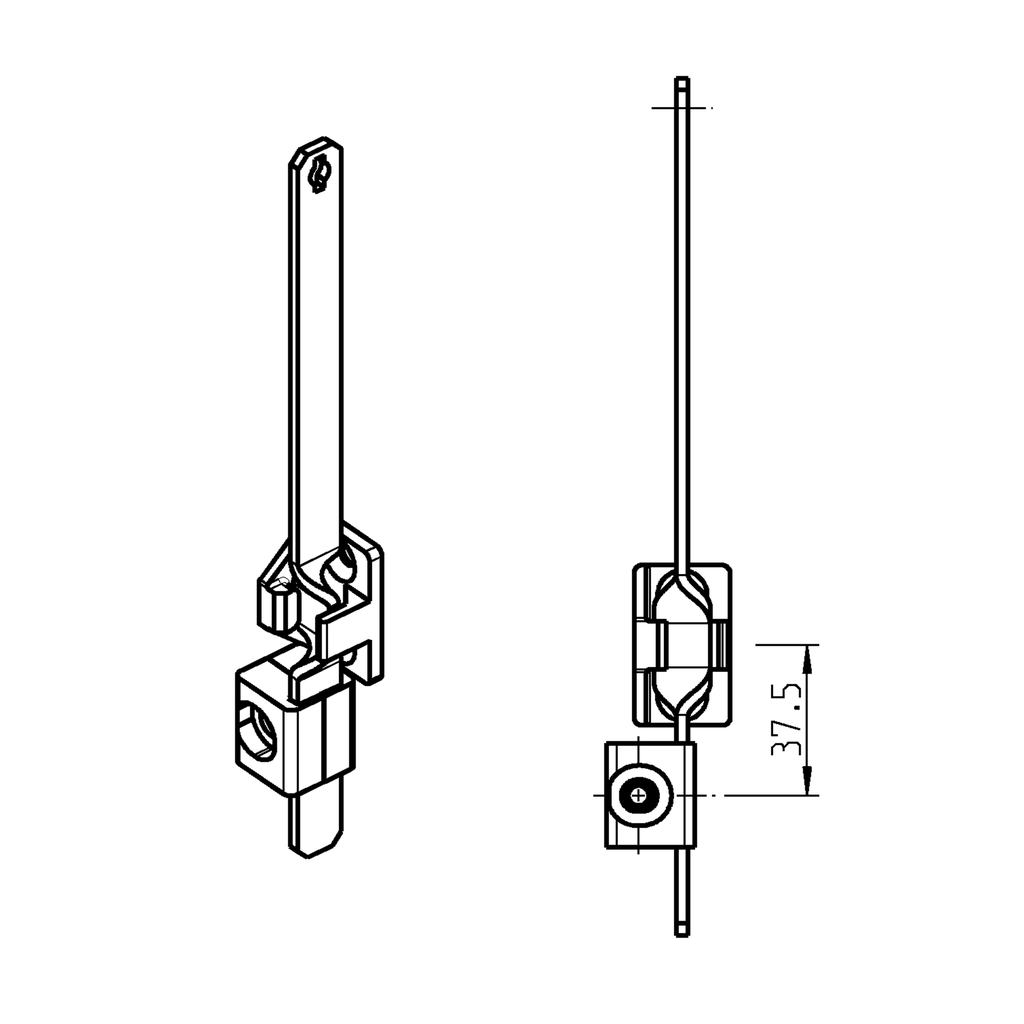

Catch for flat rod with torsion, Polyamide 66 GF50 black
Catch for flat rod with torsion, Polyamide 66 GF50 black
Rod guide clip in for flat rod 14 x 3, Plastic black
Rod guide clip in for flat rod 14 x 3, Plastic black

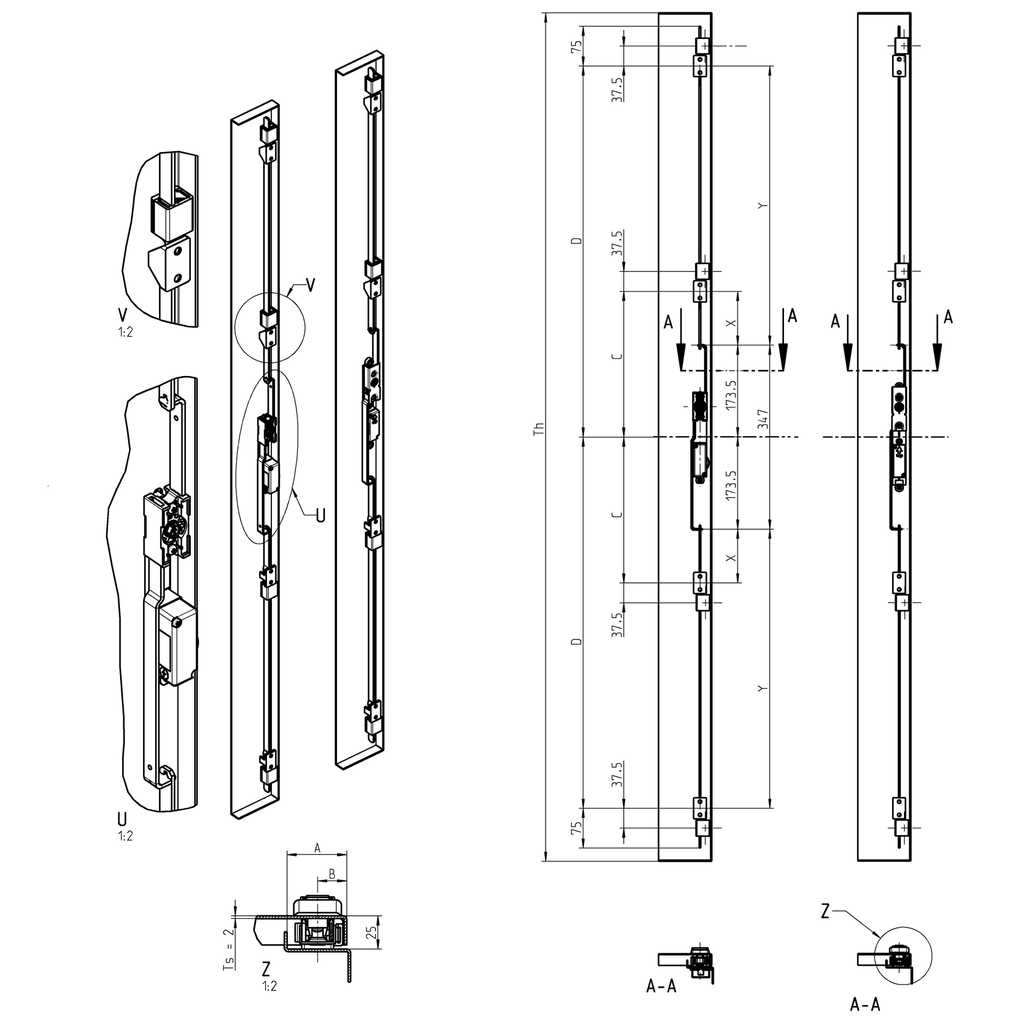

Flat rod with torsion, Stainless steel AISI 304; 1121-71-07PC

https://www.emka.com/products/1121-71-07pc-flat-rod-with-torsion-stainless-steel-aisi-304-219446 https://www.emka.com/web/image/product.template/219446/image_1920?unique=e28b2e0

    This combination does not exist.

    Inside the sealing
    Internal Reference: 1121-71-07PC
    Barcode: 1121-000071-00007PC
    Product Type: Rod
    Program: 1121
    Catalog sheet: 3ZA-220
    Material of the module : Stainless steel AISI 304
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    C Dimension: 275
    D Dimension: 850
    Mounting Positions : Inside the sealing
    Flat Bar Outside: Flat rod with torsion
    For Door Height: 1900-2200
    Dimension L: 751.50 mm
    X-Dimension: 101.5
    Y-Dimension: 676.5
    No Specifications
    View All Products
    Rod guide
    Catch
    Rod control
    Here you can find the product data sheets and CAD files of this product
