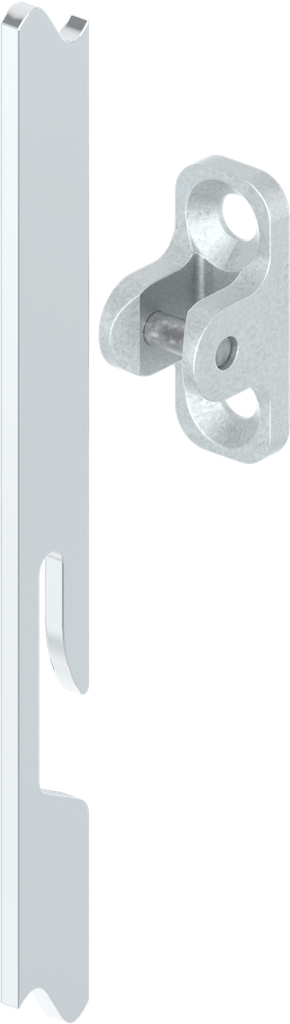

Flat rod with notch, Steel zinc-plated
Flat rod with notch, Steel zinc-plated

Flat rod with notch, Steel zinc-plated; 1121-68-03RA

https://www.emka.com/products/1121-68-03ra https://www.emka.com/web/image/product.template/64348/image_1920?unique=0705b63


    This combination does not exist.

    Outside the sealing


    Internal Reference: 1121-68-03RA
    Product Type: Rod
    Material: Steel
    Program: 1121
    Surface: zinc-plated
    Catalog sheet: 3ZA-260
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    C Dimension:
    D Dimension: 450
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod with notch
    For Door Height: 1200-1600
    X-Dimension:
    Y-Dimension: 276.5
    No Specifications
    View All Products
    Rod guide
    Rod control
    Catch
    Here you can find the product data sheets and CAD files of this product
