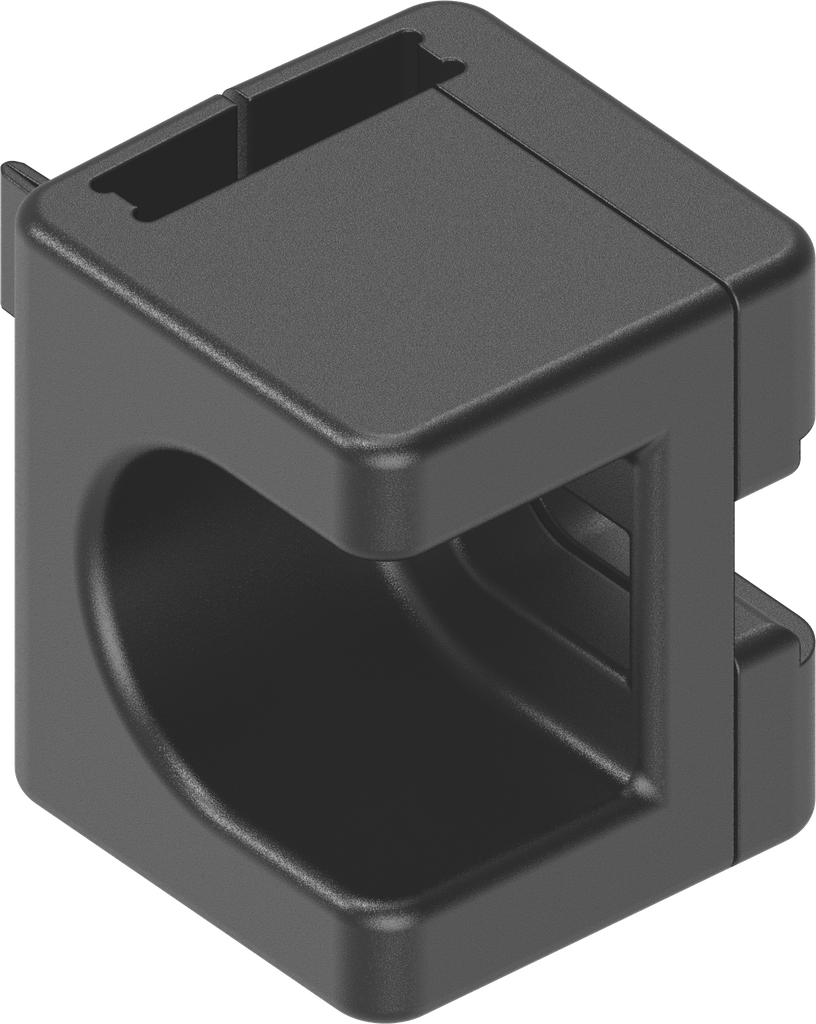

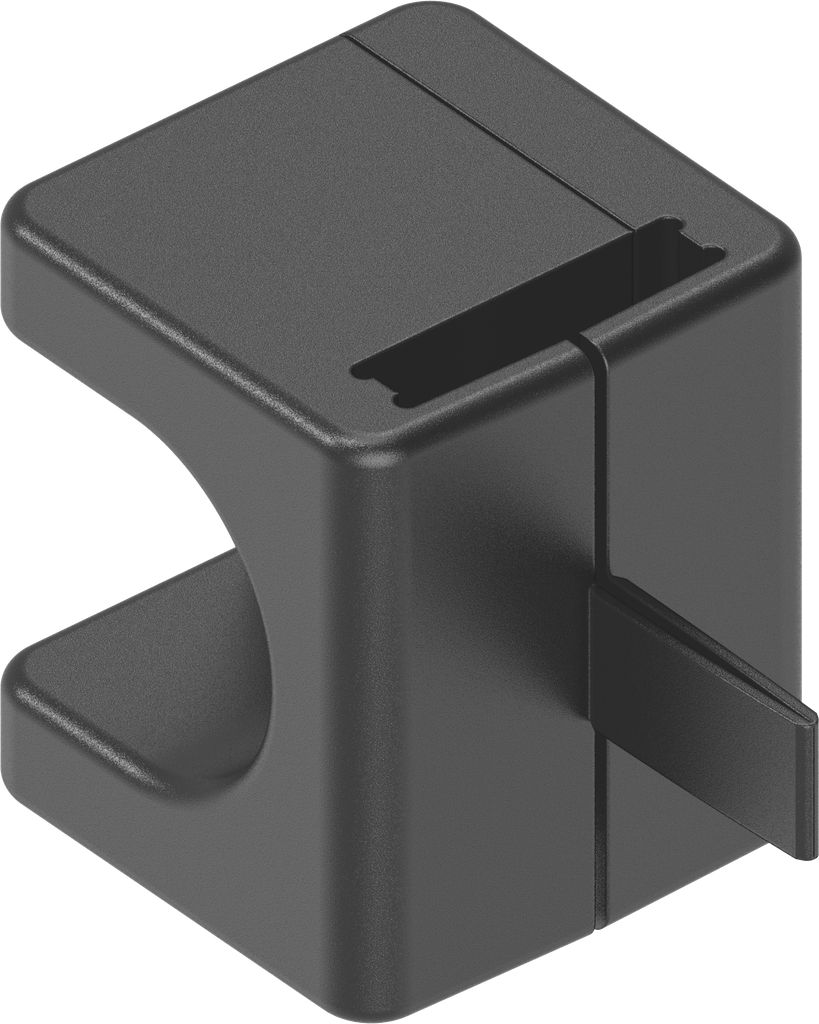

Rod guide for flat rod 14 x 3, Polyamide black; 1121-19-N

https://www.emka.com/products/1121-19-n https://www.emka.com/web/image/product.template/64315/image_1920?unique=31d8523

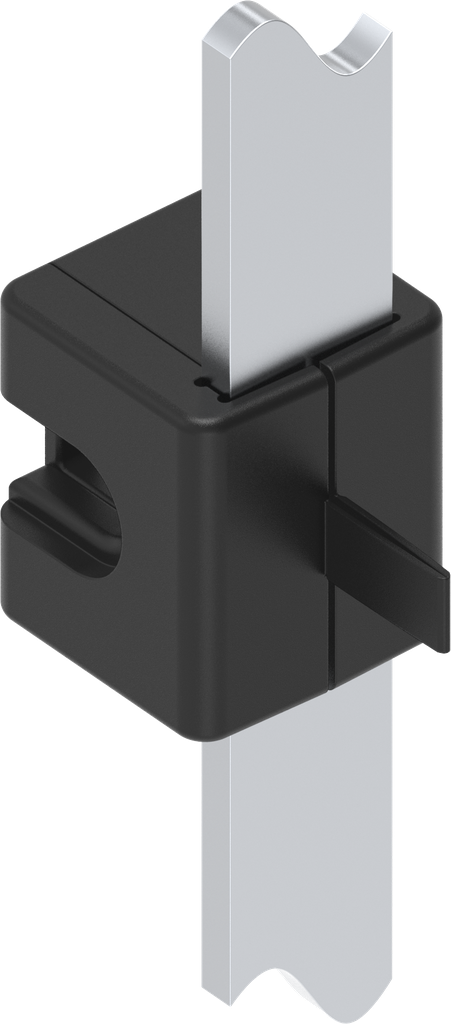

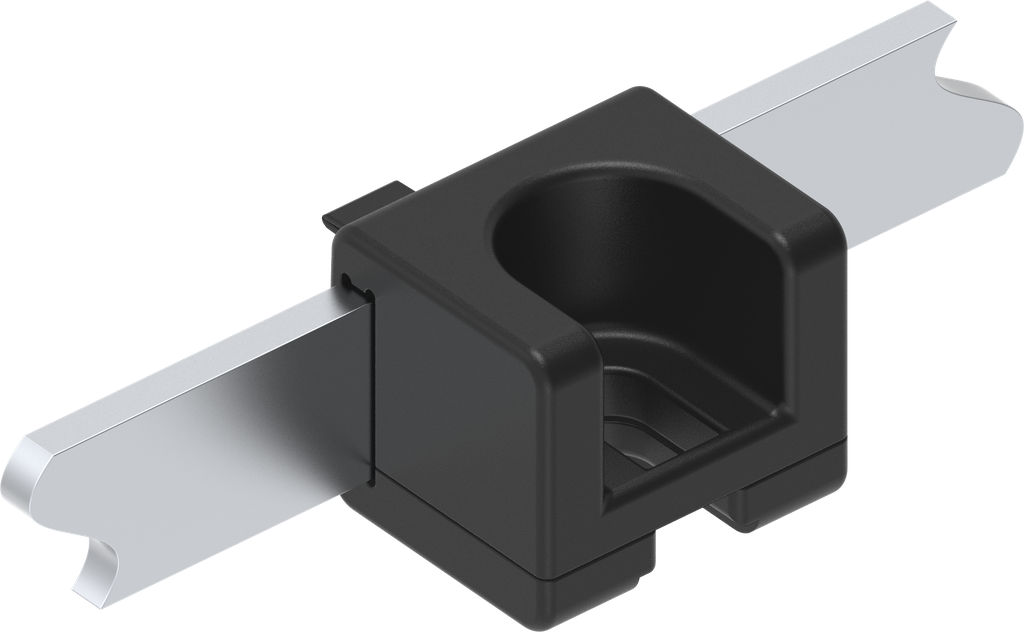

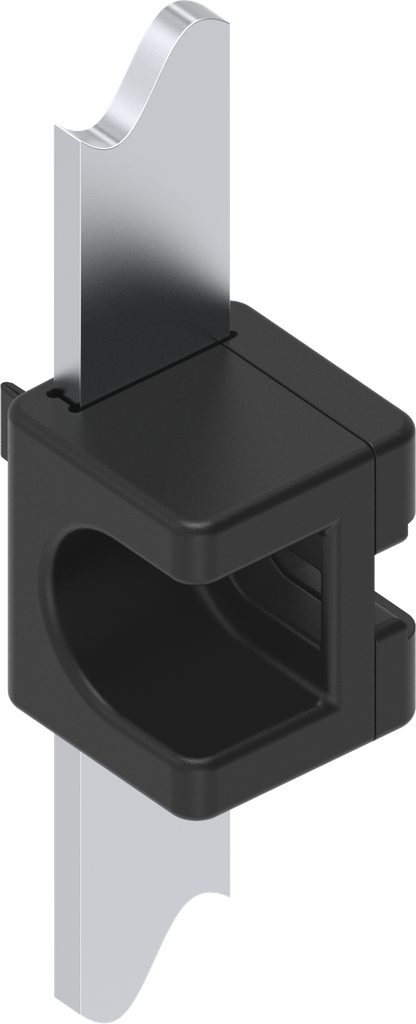

Rod guide can be pre-assembled on flat rod


    This combination does not exist.



    Assembly instruction:

    Rod guide can be pre-assembled on flat rod!

    Internal Reference: 1121-19-N
    Product Type: Rod guide
    Material: Polyamide
    Program: 1121
    Surface: black
    Catalog sheet: 3ZC-120
    Fixing of rod guide: Weld stud M6 x 20,Weld stud M6 x 16
    For Flat Bars: 14 x 3
    Assembly: Pre-assembly on flat rod
    No Specifications
    View All Products
    Rod
    Rod control
    Here you can find the product data sheets and CAD files of this product
