Catch for flat rod with double roller, Zinc die black powder-coated
Catch for flat rod with double roller, Zinc die black powder-coated
Catch for flat rod with double roller, Stainless steel AISI 316
Catch for flat rod with double roller, Stainless steel AISI 316

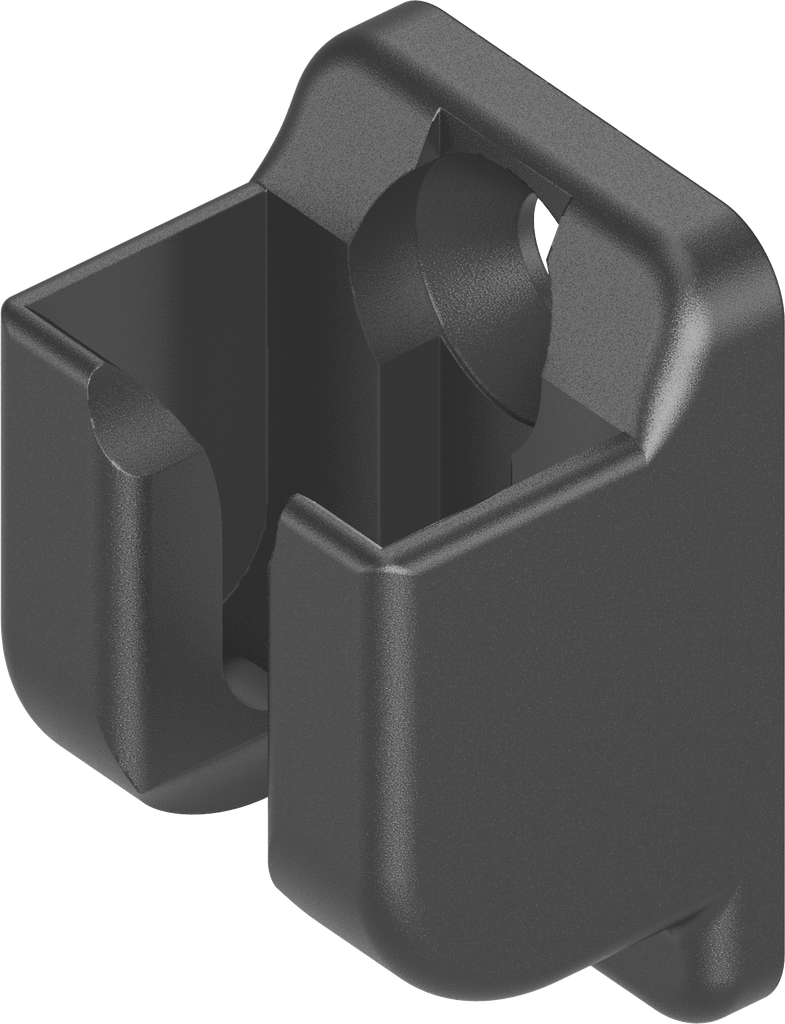

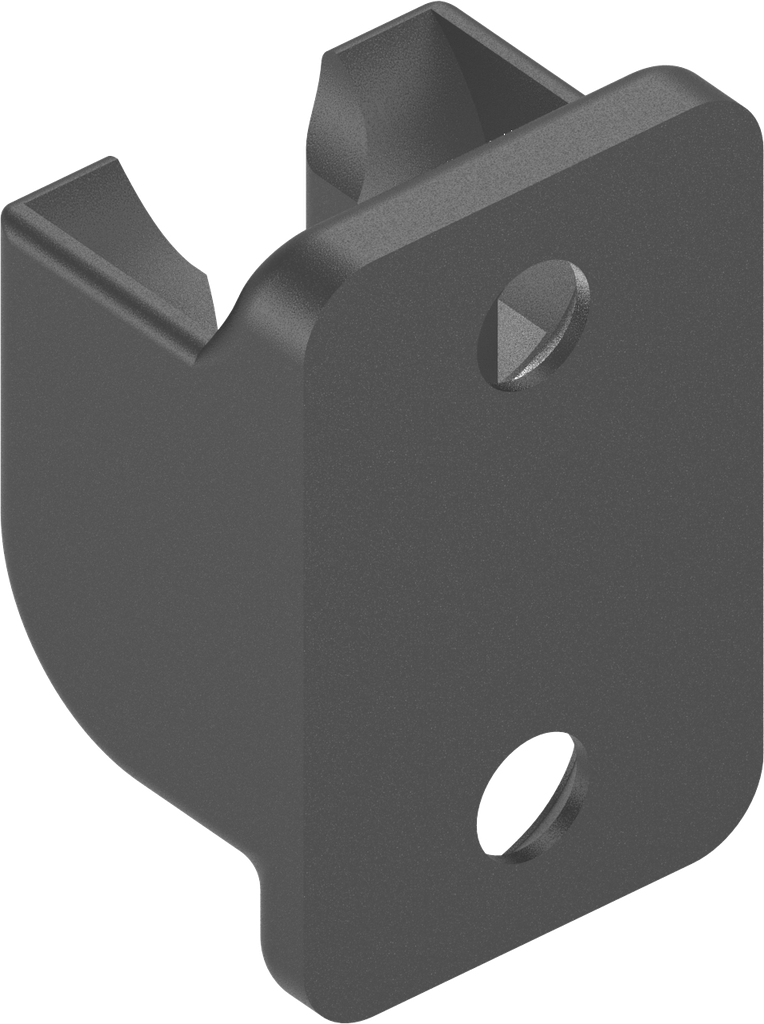

Catch for flat rod with double roller, Zinc die black powder-coated; 1121-18-02

https://www.emka.com/products/1121-18-02 https://www.emka.com/web/image/product.template/64312/image_1920?unique=0705b63


    This combination does not exist.

    Outside the sealing


    Product information:

    ① = Door depicted transparent in the the area of the hinge

    Internal Reference: 1121-18-02
    Product Type: Catch
    Material: Zinc die
    Program: 1121
    Surface: black powder-coated
    Catalog sheet: 3ZA-610
    Type of fastening: for countersunk screw M6
    Mounting Positions : Outside the sealing
    Flat Bar Size: Flat rod 14 x 3
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Locking system type: Flat rod with double roller
    No Specifications
    View All Products
    2D nut

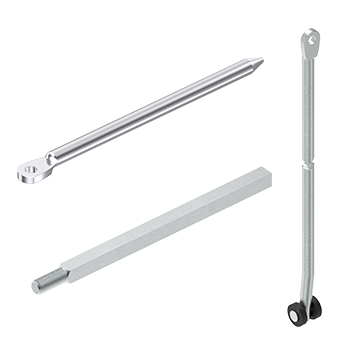

    Rod
