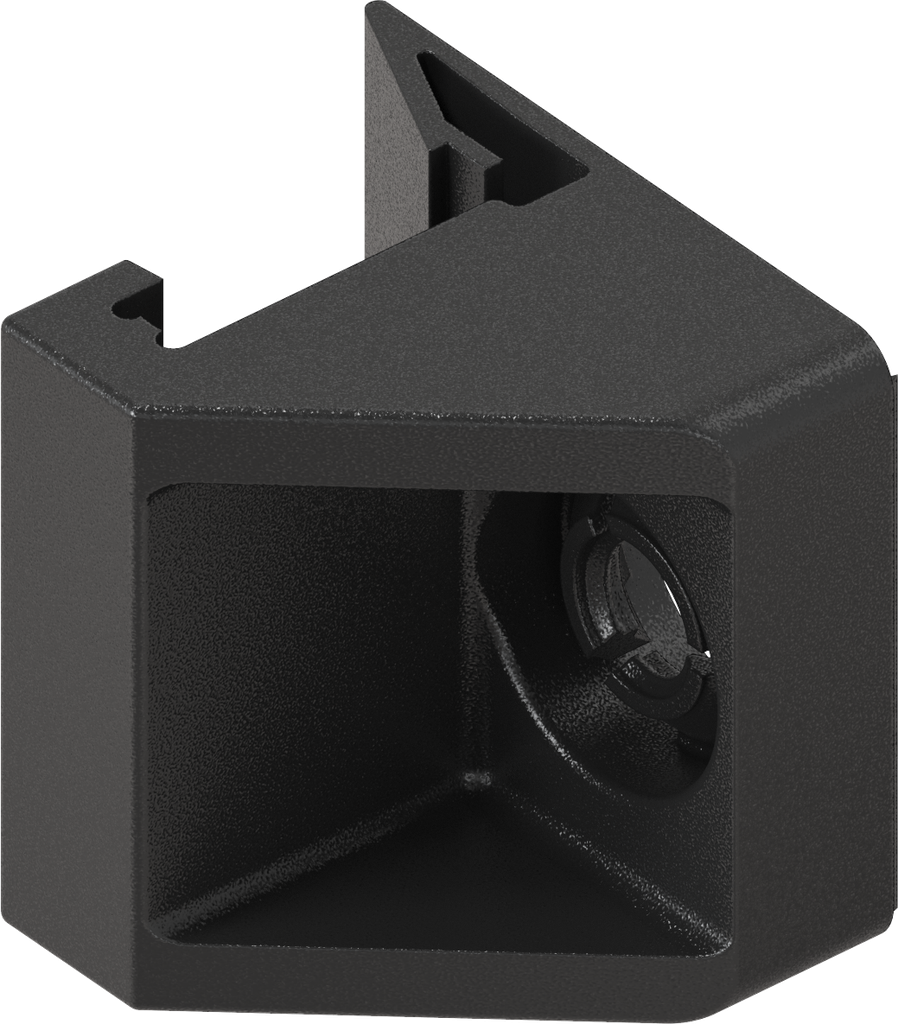

Rod guide clip in for flat rod 14 x 3, Plastic black; 1121-127

https://www.emka.com/products/1121-127 https://www.emka.com/web/image/product.template/219500/image_1920?unique=314d7ec

Rod guide is clipped onto the weld stud, flat rod is clipped in


    This combination does not exist.



    Product information:

    Pull-out force: Fmax. = 350 N Typical value F = 135 N These values refer to thread with surface raw or zinc-plated and free from grease ① = Assembly of the rod guide to the weld stud ② = Assembly of the flat rod into rod guide ③ = Rod guide completely assembled

    ① = Assembly of the rod guide to the weld stud
    ② = Assembly of the flat rod into rod guide
    ③ = Rod guide completely assembled

    Internal Reference: 1121-127
    Product Type: Rod guide
    Material: Plastic
    Program: 1121
    Surface: black
    Catalog sheet: 3ZC-160
    Article with property rights: Yes
    Fixing of rod guide: Weld stud M6x10,Weld stud M6 x 12
    For Flat Bars: 14 x 3
    Assembly: Pre-assembly of rod guide,Flat rod will clip-in,Rod guide clip-in, flat rod will clip-in
