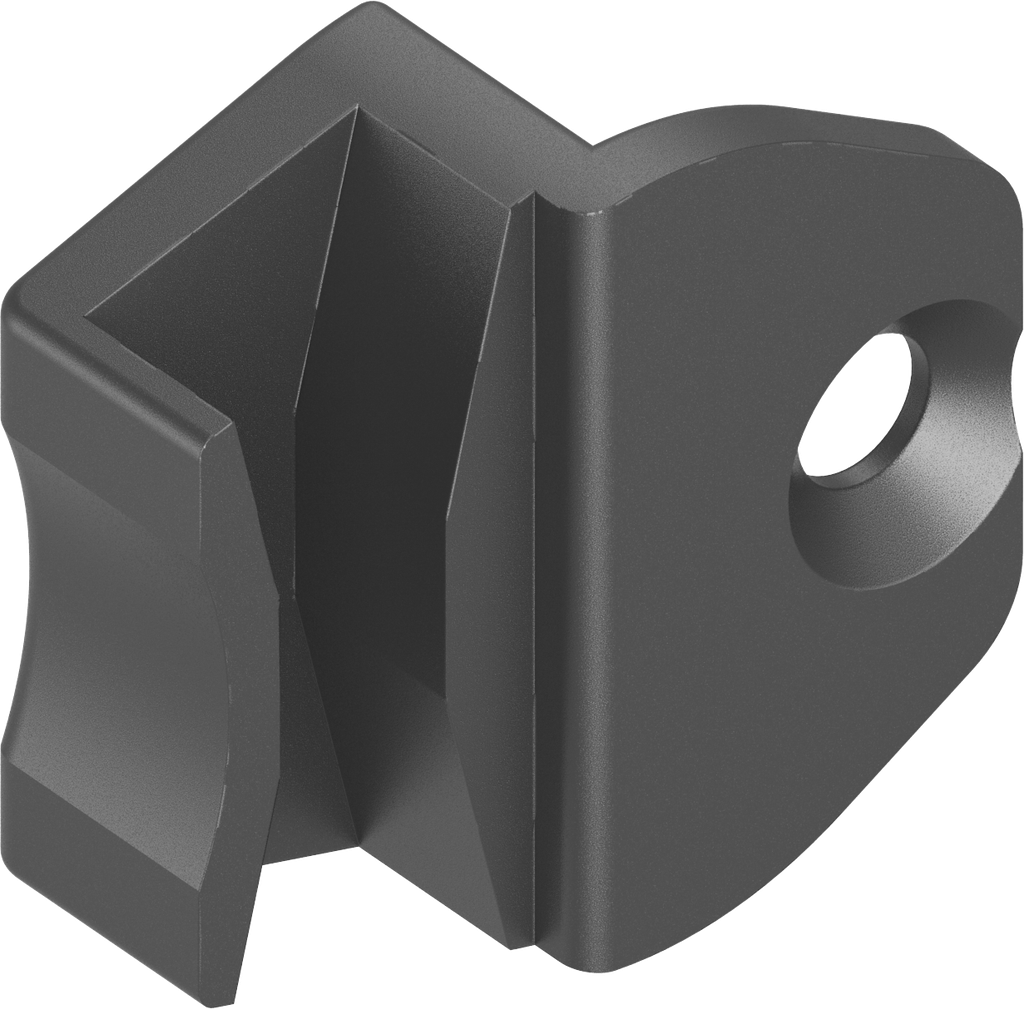

Catch for flat rod with double roller oder single roller, Zinc die black powder-coated; 1121-108-AA

https://www.emka.com/products/1121-108-aa https://www.emka.com/web/image/product.template/77320/image_1920?unique=0705b63


    This combination does not exist.

    Inside the sealing


    Product information:

    Lateral fixing at the frame inside the gasket

    ① = Door depicted transparent

    ② = Frame
    ③ = Rod (depicted below)
    ④ = Countersunk screw M6 (not included in delivery)
    ⑤ = Rod guide

    Internal Reference: 1121-108-AA
    Product Type: Catch
    Material: Zinc die
    Program: 1121
    Surface: black powder-coated
    Catalog sheet: 3ZA-1240
    Type of fastening: for countersunk screw M6
    Mounting Positions : Inside the sealing
    Flat Bar Size: Flat rod 14 x 3
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Locking system type: Flat rod with double roller,Flat rod with single roller
    No Specifications
    View All Products
    Rod
    Here you can find the product data sheets and CAD files of this product
